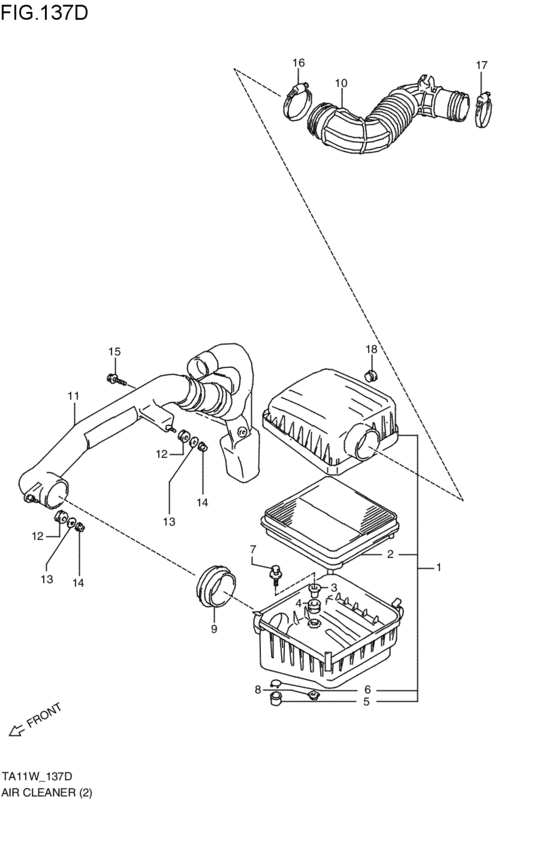

air cleaner (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-77E02-000
クリーナアッシ,エア
RF; 1994-11-01~1995-03-01 |
13700-77E02-000 |
— | ||
| replacement | |||||
|
1
|
1
13700-78E01-000 CLEANER ASSY,AIRRF; 1994-11-01~1995-03-01 |
13700-78E01-000 |
US $283.36 |
||
|
1
|
1
13700-78E01-000 CLEANER ASSY,AIRRF; 1995-03-01~ |
13700-78E01-000 |
US $283.36 |
||
|
2
|
2
13780-77E00-000 ELEMENT,AIR CLEANERRF; 1994-11-01~ |
13780-77E00-000 |
from US $26.15 |
||
|
3
|
3
13877-77E00-000 SPACERRF; 1994-11-01~ |
13877-77E00-000 |
US $5.48 |
||
|
4
|
4
13878-77E00-000
クッション,エアクリーナ
RF; 1994-11-01~ |
13878-77E00-000 |
— | ||
| replacement | |||||
|
4
|
4
13878-77E01-000 CUSHIONRF; 1994-11-01~ |
13878-77E01-000 |
US $4.86 |
||
|
5
|
5
13875-78E00-000 CAP,DRAINRF; 1995-03-01~ |
13875-78E00-000 |
US $2.29 |
||
|
6
|
6
13876-78E00-000 CLIPRF; 1995-03-01~ |
13876-78E00-000 |
US $1.52 |
||
|
7
|
7
09116-06172-000 BOLT(6X30)Bolt (6x30) RF; 1994-11-01~ |
09116-06172-000 |
from US $1.44 |
||
|
8
|
8
09148-06006-000 NUTNut, side RF; 1994-11-01~ |
09148-06006-000 |
US $0.96 |
||
|
9
|
9
13872-78E00-000
HOSE,AIR CLEANER INLET
RF; 1994-11-01~ |
13872-78E00-000 |
— | ||
|
10
|
10
13881-77E00-000
ホース,エアクリーナ,アウトレット
RF; 1994-11-01~ |
13881-77E00-000 |
— | ||
| replacement | |||||
|
10
|
10
13881-77E01-000 HOSE,AIR CLNR OUTLETRF; 1994-11-01~ |
13881-77E01-000 |
US $140.80 |
||
|
11
|
11
13600-78E01-000
CASE ASSY,AIR CLNR SUCTION
RF; 1994-11-01~ |
13600-78E01-000 |
— | ||
|
12
|
12
13874-51E50-000 CUSHION,RESONATOR NO.2RF; 1994-11-01~ |
13874-51E50-000 |
US $2.10 |
||
|
13
|
13
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper RF; 1994-11-01~ |
09160-06088-000 |
from US $0.91 |
||
|
14
|
14
08316-10063-000
Nut
RF; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTRF; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
01550-06303-000
Bolt (6x30)
RF; 1994-11-01~ |
01550-06303-000 |
— | ||
| replacement | |||||
|
15
|
15
01550-0630A-000 BOLTRF; 1994-11-01~ |
01550-0630A-000 |
from US $0.96 |
||
|
16
|
16
09402-82511-000 CLAMPRF; 1994-11-01~ |
09402-82511-000 |
US $65.90 |
||
|
17
|
17
09402-57511-000 CLAMPRF; 1994-11-01~ |
09402-57511-000 |
from US $6.24 |
||
|
18
|
18
09250-20006-000 CAP(OD:24)RF; 1994-11-01~ |
09250-20006-000 |
from US $2.32 |
||
