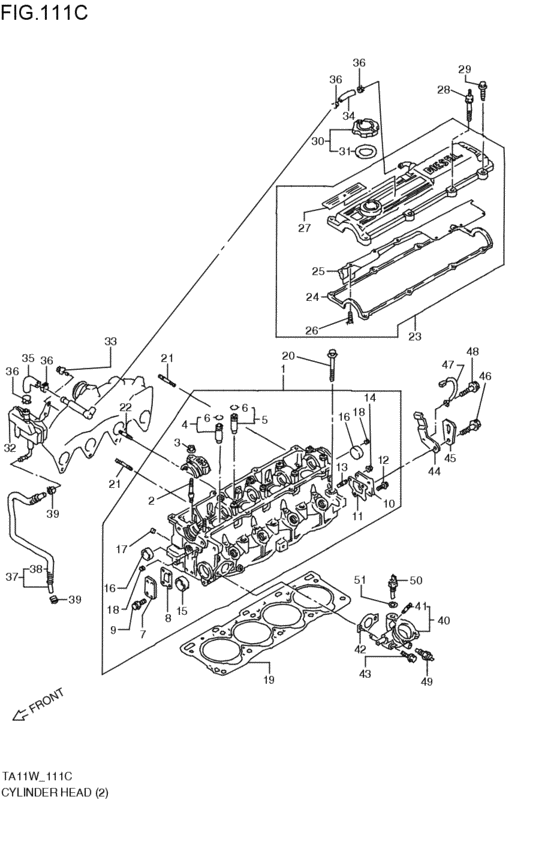

Cylinder head (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-78E03-000
Head,cylinder
RF; 1994-11-01~ |
11111-78E03-000 |
— | ||
|
2
|
2
11120-78E00-000
Stud bolt
RF; 1994-11-01~ |
11120-78E00-000 |
— | ||
|
3
|
3
11121-78E00-000
NUT,CAP
RF; 1994-11-01~ |
11121-78E00-000 |
— | ||
|
4
|
4
11116-78E01-000 GUIDE,VALVERF; 1994-11-01~ |
11116-78E01-000 |
US $15.71 |
||
|
5
|
5
11115-78E00-000 GUIDE,VALVERF; 1994-11-01~ |
11115-78E00-000 |
US $15.71 |
||
|
6
|
6
11117-78E00-000
CLIP,VALVE GUIDE
RF; 1994-11-01~ |
11117-78E00-000 |
— | ||
|
7
|
7
11123-78E00-000
Cover,blind,no.2
RF; 1994-11-01~ |
11123-78E00-000 |
— | ||
|
8
|
8
11125-78E00-000
GASKET,BLIND COVER,NO.2
RF; 1994-11-01~ |
11125-78E00-000 |
— | ||
|
9
|
9
M1550-06080-000
BOLT,6X8
RF; 1994-11-01~ |
M1550-06080-000 |
— | ||
|
10
|
10
11122-78E00-000
COVER,BLIND NO.1
RF; 1994-11-01~ |
11122-78E00-000 |
— | ||
|
11
|
11
11124-78E00-000 GASKET,BLIND COVER,NO.1RF; 1994-11-01~ |
11124-78E00-000 |
US $7.18 |
||
|
12
|
12
M9103-06200-000
BOLT,6X20
RF; 1994-11-01~ |
M9103-06200-000 |
— | ||
|
13
|
13
M1421-06200-000
STUD BOLT
RF; 1994-11-01~ |
M1421-06200-000 |
— | ||
|
14
|
14
08316-10063-000
Nut
RF; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTRF; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
M9241-35000-000
PLUG
RF; 1994-11-01~ |
M9241-35000-000 |
— | ||
|
16
|
16
M9241-25000-000 PLUGRF; 1994-11-01~ |
M9241-25000-000 |
US $11.95 |
||
|
17
|
17
M9241-12000-000
PLUG
RF; 1994-11-01~ |
M9241-12000-000 |
— | ||
|
18
|
18
M9246-20000-000
PLUG
RF; 1994-11-01~ |
M9246-20000-000 |
— | ||
|
19
|
19
11141-78E00-000
ガスケット,シリンダヘッド
RF; 1994-11-01~ |
11141-78E00-000 |
— | ||
| replacement | |||||
|
19
|
19
11141-78E01-000 GASKET,CYL HEADRF; 1994-11-01~ |
11141-78E01-000 |
US $148.30 |
||
|
20
|
20
11119-78E00-000
ボルト,シリンダヘッド
RF; 1994-11-01~ |
11119-78E00-000 |
— | ||
| replacement | |||||
|
20
|
20
11119-78E10-000 BOLT,CYLINDER HEADRF; 1994-11-01~ |
11119-78E10-000 |
US $18.95 |
||
|
21
|
21
M1421-08280-000 STUD BOLTRF; 1994-11-01~ |
M1421-08280-000 |
US $1.80 |
||
|
22
|
22
M1421-08320-000
STUD BOLT
RF; 1994-11-01~ |
M1421-08320-000 |
— | ||
|
23
|
23
11170-78E01-000
Cover,cylinder head
RF; 1994-11-01~ |
11170-78E01-000 |
— | ||
|
24
|
24
11189-78E00-000
GASKET,CYL HEAD COVER
RF; 1994-11-01~ |
11189-78E00-000 |
— | ||
|
25
|
25
11172-78E00-000
Plate,oil baffle
RF; 1994-11-01~ |
11172-78E00-000 |
— | ||
|
26
|
26
M3241-04080-000
SCREW,4X8
RF; 1994-11-01~ |
M3241-04080-000 |
— | ||
|
27
|
27
11178-78E00-000
LABEL,CYLINDER HEAD BOLT
RF; 1994-11-01~ |
11178-78E00-000 |
— | ||
|
28
|
28
11177-78E00-000
STUD BOLT
RF; 1994-11-01~ |
11177-78E00-000 |
— | ||
|
29
|
29
M9103-06350-000
BOLT,6X35
RF; 1994-11-01~ |
M9103-06350-000 |
— | ||
|
30
|
30
16920-78E00-000
Cap,oil filler
RF; 1994-11-01~ |
16920-78E00-000 |
— | ||
|
31
|
31
16921-78E00-000
Gasket
RF; 1994-11-01~ |
16921-78E00-000 |
— | ||
| replacement | |||||
|
31
|
31
16921-78E01-000 GASKET,OIL FILLER CAPRF; 1994-11-01~ |
16921-78E01-000 |
US $3.57 |
||
|
32
|
32
11173-78E00-000
パイプ,ブリーザ
RF; 1994-11-01~ |
11173-78E00-000 |
— | ||
|
33
|
33
M9103-06160-000
BOLT,6X16
RF; 1994-11-01~ |
M9103-06160-000 |
— | ||
|
34
|
34
11175-78E00-000
HOSE,PCV
RF; 1994-11-01~ |
11175-78E00-000 |
— | ||
|
35
|
35
11176-78E00-000
Hose,purge control valve
RF; 1994-11-01~ |
11176-78E00-000 |
— | ||
|
36
|
36
M9401-21000-000
CLIP
RF; 1994-11-01~ |
M9401-21000-000 |
— | ||
|
37
|
37
11179-78E00-000
HOSE,OIL
RF; 1994-11-01~ |
11179-78E00-000 |
— | ||
|
38
|
38
11174-78E00-000
PROTECTOR
RF; 1994-11-01~ |
11174-78E00-000 |
— | ||
|
39
|
39
M9401-11000-000
CLIP
RF; 1994-11-01~ |
M9401-11000-000 |
— | ||
|
40
|
40
17562-78E00-000
CASE,THERMOSTATSTAT
RF; 1994-11-01~ |
17562-78E00-000 |
— | ||
|
41
|
41
M1421-06180-000
STUD BOLT
RF; 1994-11-01~ |
M1421-06180-000 |
— | ||
|
42
|
42
17699-78E00-000
GASKET,THERMOSTAT CASE
RF; 1994-11-01~ |
17699-78E00-000 |
— | ||
|
43
|
43
M9103-08450-000
BOLT,8X45
RF; 1994-11-01~ |
M9103-08450-000 |
— | ||
|
44
|
44
11181-78E00-000
ステー,シールキャップ
RF; 1994-11-01~ |
11181-78E00-000 |
— | ||
| replacement | |||||
|
44
|
44
11181-78E01-000
STAY,SEAL CAP
RF; 1994-11-01~ |
11181-78E01-000 |
— | ||
|
45
|
45
11182-78E00-000
HANGER,ENGINE
RF; 1994-11-01~ |
11182-78E00-000 |
— | ||
|
46
|
46
M9103-08200-000
BOLT,8X20
RF; 1994-11-01~ |
M9103-08200-000 |
— | ||
|
47
|
47
11183-78E00-000
コード,アース
RF; 1994-11-01~ |
11183-78E00-000 |
— | ||
|
48
|
48
M9103-08200-000
BOLT,8X20
RF; 1994-11-01~ |
M9103-08200-000 |
— | ||
|
49
|
49
34850-78E00-000 GAUGE ASSY,WATER TEMPニホンサーモスタット; RF; 1994-11-01~ |
34850-78E00-000 |
US $48.94 |
||
|
50
|
50
13650-78E00-000 Sensor,water TempRF; 1994-11-01~ |
13650-78E00-000 |
US $73.97 |
||
|
51
|
51
M9280-12000-000 O RINGRF; 1994-11-01~ |
M9280-12000-000 |
US $1.40 |
||
