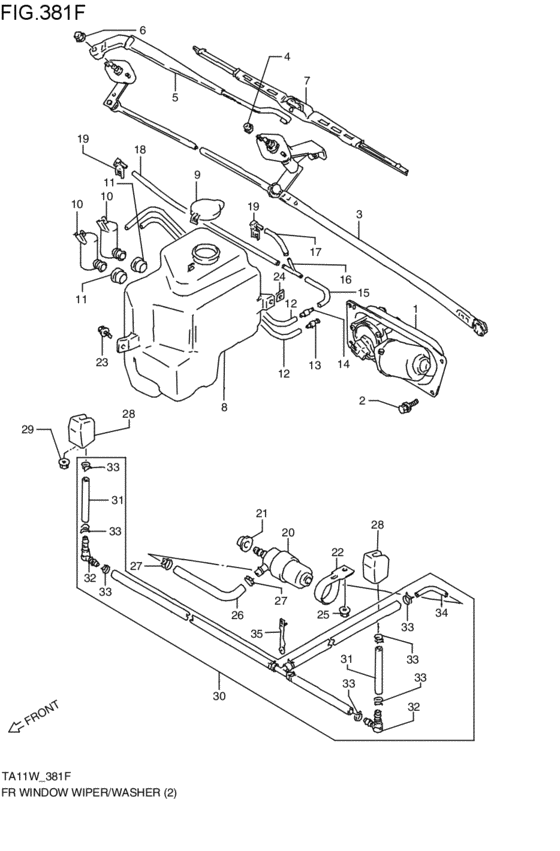

front wind windshield wiper / washer (4ドア; 4DR; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38101-60A20-000
MOTOR&BRACKET ASSY,WIPER
4DR; 1994-11-01~ |
38101-60A20-000 |
— | ||
|
2
|
2
09115-06001-000
Bolt, lh
4DR; 1994-11-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
2
|
2
09115-06005-000 BOLT(6X16)4DR; 1994-11-01~ |
09115-06005-000 |
US $1.28 |
||
|
3
|
3
38102-60A20-000
LINK ASSY,WIPER
4DR; 1994-11-01~ |
38102-60A20-000 |
— | ||
|
4
|
4
08316-10063-000
Nut
4DR; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1006B-000 NUT4DR; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
5
|
5
38310-56B20-000 ARM ASSY,WIPER4DR; 1994-11-01~ |
38310-56B20-000 |
US $58.14 |
||
|
6
|
6
08313-20083-000
Nut
4DR; 1994-11-01~ |
08313-20083-000 |
— | ||
| replacements | |||||
|
6
|
6
08313-2008B-000 NUT4DR; 1994-11-01~ |
08313-2008B-000 |
from US $3.94 |
||
|
6
|
6
08313-2008A-000 NUT4DR; 1994-11-01~ |
08313-2008A-000 |
from US $0.91 |
||
|
7
|
7
38340-50F00-000 BLADE ASSY,WIPER,R4DR; 1994-11-01~ |
38340-50F00-000 |
US $28.34 |
||
|
8
|
8
39132-77E10-000
Tank,washer
4DR; 1994-11-01~ |
39132-77E10-000 |
— | ||
|
9
|
9
39133-60A00-000 CAP,WASHER TANK4DR; 1994-11-01~ |
39133-60A00-000 |
US $2.54 |
||
|
10
|
10
38410-66113-000 PUMP ASSY,WASHERPump assy, washer 4DR; 1994-11-01~ |
38410-66113-000 |
US $59.20 |
||
|
11
|
11
39143-77E10-000
Grommet,washer pump
4DR; 1994-11-01~ |
39143-77E10-000 |
— | ||
|
12
|
12
38491-61A10-000 HOSE,WASHER L:2100L:2100>400; 4DR; 1994-11-01~ |
38491-61A10-000 |
US $5.44 |
||
|
13
|
13
39137-77E10-000 CONNECTOR,WASHER HOSE4DR; 1994-11-01~ |
39137-77E10-000 |
US $3.97 |
||
|
14
|
14
38496-61A00-000 VALVE,CHECK4DR; 1994-11-01~ |
38496-61A00-000 |
US $2.08 |
||
|
15
|
15
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>800; 4DR; 1994-11-01~ |
38491-61A00-000 |
US $5.12 |
||
|
16
|
16
38496-71311-000 CONNECTOR,THREE WAY4DR; 1994-11-01~ |
38496-71311-000 |
US $4.16 |
||
|
17
|
17
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>70; 4DR; 1994-11-01~ |
38491-61A00-000 |
US $5.12 |
||
|
18
|
18
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>650; 4DR; 1994-11-01~ |
38491-61A00-000 |
US $5.12 |
||
|
19
|
19
38480-77E00-000 NOZZLE,WASHER4DR; 1994-11-01~ |
38480-77E00-000 |
US $32.69 |
||
|
20
|
20
39141-77E10-000
MOTOR ASSY,HEADLAMP CLEANER
4DR; 1994-11-01~ |
39141-77E10-000 |
— | ||
|
21
|
21
39143-80000-000 PACKING,MOTOR4DR; 1994-11-01~ |
39143-80000-000 |
US $2.91 |
||
|
22
|
22
39139-77E10-000
BRACKET,MOTOR
4DR; 1994-11-01~ |
39139-77E10-000 |
— | ||
|
23
|
23
02112-16163-000
Screw
4DR; 1994-11-01~ |
02112-16163-000 |
— | ||
| replacement | |||||
|
23
|
23
02112-1616A-000 SCREW4DR; 1994-11-01~ |
02112-1616A-000 |
from US $0.68 |
||
|
24
|
24
09148-06006-000 NUTNut, side 4DR; 1994-11-01~ |
09148-06006-000 |
US $0.96 |
||
|
25
|
25
08316-10063-000
Nut
4DR; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-1006B-000 NUT4DR; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
26
|
26
39136-77E10-000
HOSE,WASHER
4DR; 1994-11-01~ |
39136-77E10-000 |
— | ||
|
27
|
27
39193-82000-000 CLIP4DR; 1994-11-01~ |
39193-82000-000 |
US $1.84 |
||
|
28
|
28
39110-77E00-000
NOZZLE ASSY,HLC
4DR; 1994-11-01~ |
39110-77E00-000 |
— | ||
|
29
|
29
08316-10063-000
Nut
4DR; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1006B-000 NUT4DR; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
30
|
30
39120-77E10-000
Hose assy,headlamp cleaner
4DR; 1994-11-01~ |
39120-77E10-000 |
— | ||
|
31
|
31
39123-56B00-000 HOSE,L:660L:660>115; 4DR; 1994-11-01~ |
39123-56B00-000 |
US $13.62 |
||
|
32
|
32
39121-85000-000 VALVE ASSY,CHECK4DR; 1994-11-01~ |
39121-85000-000 |
US $9.57 |
||
|
33
|
33
39193-82000-000 CLIP4DR; 1994-11-01~ |
39193-82000-000 |
US $1.84 |
||
|
34
|
34
39122-56B00-000
ジョイント,ホース
4DR; 1994-11-01~ |
39122-56B00-000 |
— | ||
| replacement | |||||
|
34
|
34
39137-60A00-000
JOINT,WASHER HOSE
4DR; 1994-11-01~ |
39137-60A00-000 |
— | ||
|
35
|
35
09407-05403-000 CLAMP,L:884DR; 1994-11-01~ |
09407-05403-000 |
from US $0.91 |
||
|
35
|
35
09407-05406-000 CLAMP(L:118)4DR; 1994-11-01~ |
09407-05406-000 |
from US $1.06 |
||
