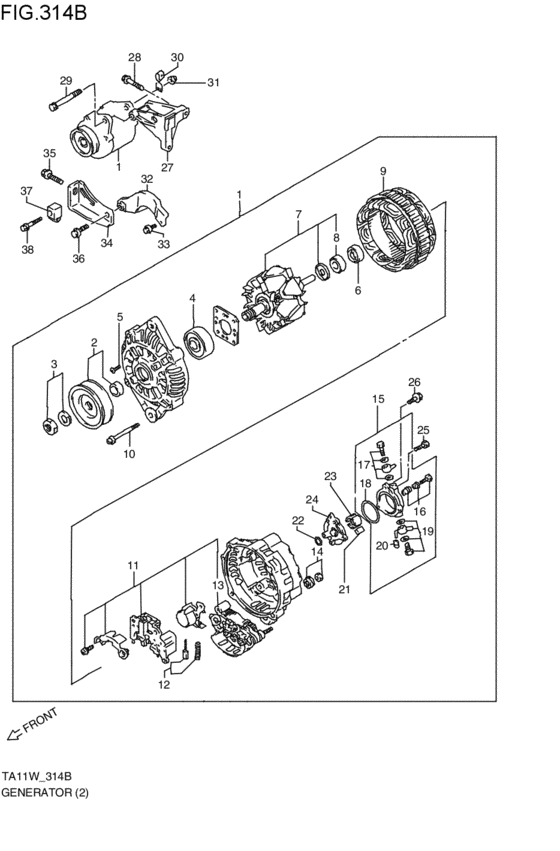

generator (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-77E90-000
GENERATOR ASSY
RF; 1994-11-01~ |
31400-77E90-000 |
— | ||
|
2
|
2
31171-77E90-000
PULLEY
RF; 1994-11-01~ |
31171-77E90-000 |
— | ||
|
3
|
3
31775-77E90-000
NUT,PULLEY
RF; 1994-11-01~ |
31775-77E90-000 |
— | ||
|
4
|
4
31582-77E90-000 BEARING ASSY,FRONTRF; 1994-11-01~ |
31582-77E90-000 |
US $27.97 |
||
|
5
|
5
31586-77E90-000
SCREW,RETAINER
RF; 1994-11-01~ |
31586-77E90-000 |
— | ||
|
6
|
6
31618-77E92-000
SEAL,OIL
RF; 1994-11-01~ |
31618-77E92-000 |
— | ||
|
7
|
7
31402-77E90-000
ROTOR ASSY
RF; 1994-11-01~ |
31402-77E90-000 |
— | ||
|
8
|
8
31612-77E90-000
BEARING ASSY,RR
RF; 1994-11-01~ |
31612-77E90-000 |
— | ||
|
9
|
9
31410-77E90-000
ステータアッシ,ジェネレータ
RF; 1994-11-01~ |
31410-77E90-000 |
— | ||
|
10
|
10
31651-77E90-000
BOLT,HOUSING
RF; 1994-11-01~ |
31651-77E90-000 |
— | ||
|
11
|
11
32500-77E91-000
レギュレータアッシ
RF; 1994-11-01~ |
32500-77E91-000 |
— | ||
| replacement | |||||
|
11
|
11
32500-77E92-000
REGULATOR ASSY,GENERATOR
RF; 1994-11-01~ |
32500-77E92-000 |
— | ||
|
12
|
12
31631-77E90-000
BRUSH SET,GENERATOR
RF; 1994-11-01~ |
31631-77E90-000 |
— | ||
|
13
|
13
31621-77E90-000
RECTIFIER,GENERATOR
RF; 1994-11-01~ |
31621-77E90-000 |
— | ||
|
14
|
14
31510-77E90-000
Terminal assy,generator
RF; 1994-11-01~ |
31510-77E90-000 |
— | ||
|
15
|
15
32906-77E90-000
Housing assy,generator pump
RF; 1994-11-01~ |
32906-77E90-000 |
— | ||
|
16
|
16
32907-77E90-000
コネクタ,ポンプ,インレット
RF; 1994-11-01~ |
32907-77E90-000 |
— | ||
|
17
|
17
32908-77E90-000
CONNECTOR,PUMP,OUTLET
RF; 1994-11-01~ |
32908-77E90-000 |
— | ||
|
18
|
18
32909-77E90-000
O-RING,PUMP HOUSING
RF; 1994-11-01~ |
32909-77E90-000 |
— | ||
|
19
|
19
32910-77E90-000
バルブセット,ジェネレータポンプ
RF; 1994-11-01~ |
32910-77E90-000 |
— | ||
|
20
|
20
32911-77E90-000
CAP,GENERATOR PUMP
RF; 1994-11-01~ |
32911-77E90-000 |
— | ||
|
21
|
21
32904-77E90-000
Vane,generator pump
RF; 1994-11-01~ |
32904-77E90-000 |
— | ||
|
22
|
22
32905-77E90-000
O-RING,GENERATOR PUMP
RF; 1994-11-01~ |
32905-77E90-000 |
— | ||
|
23
|
23
32902-77E90-000
Rotor assy,generator pump
RF; 1994-11-01~ |
32902-77E90-000 |
— | ||
|
24
|
24
32903-77E90-000
PLATE,GENERATOR PUMP
RF; 1994-11-01~ |
32903-77E90-000 |
— | ||
|
25
|
25
32901-77E91-000
ボルトセット
E.NO.S105266マデ; RF; 1994-11-01~ |
32901-77E91-000 |
— | ||
|
25
|
25
32901-77E92-000
ボルトセット
E.NO.S105267ヨリ; RF; 1994-11-01~ |
32901-77E92-000 |
— | ||
|
26
|
26
32912-77E91-000
ボルトセット
E.NO.S105266マデ; RF; 1994-11-01~ |
32912-77E91-000 |
— | ||
|
26
|
26
32912-77E92-000
ボルトセット
E.NO.S105267ヨリ; RF; 1994-11-01~ |
32912-77E92-000 |
— | ||
|
27
|
27
17911-78E00-000
ブラケット,オルタネータ
RF; 1994-11-01~ |
17911-78E00-000 |
— | ||
|
28
|
28
01550-10303-000
Bolt
RF; 1994-11-01~ |
01550-10303-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-1030B-000 BOLTBolt, axle housing rear RF; 1994-11-01~ |
01550-1030B-000 |
from US $5.07 |
||
|
28
|
28
01550-1030A-000 BOLTRF; 1994-11-01~ |
01550-1030A-000 |
from US $1.12 |
||
|
29
|
29
M9103-10130-000
BOLT,10X130
RF; 1994-11-01~ |
M9103-10130-000 |
— | ||
|
30
|
30
17915-78E00-000
CLIP
RF; 1994-11-01~ |
17915-78E00-000 |
— | ||
|
31
|
31
08316-10103-000
Nut
RF; 1994-11-01~ |
08316-10103-000 |
— | ||
| replacement | |||||
|
31
|
31
08316-1010B-000 NUTRF; 1994-11-01~ |
08316-1010B-000 |
from US $0.80 |
||
|
32
|
32
17926-78E00-000
BRACKET,STRAP ALTERNATOR
RF; 1994-11-01~ |
17926-78E00-000 |
— | ||
|
33
|
33
12816-78E00-000
Bolt
RF; 1994-11-01~ |
12816-78E00-000 |
— | ||
|
34
|
34
17921-78E00-000
Strap,alternater
RF; 1994-11-01~ |
17921-78E00-000 |
— | ||
|
35
|
35
17925-78E00-000
Bolt,adjust
RF; 1994-11-01~ |
17925-78E00-000 |
— | ||
|
36
|
36
01550-08203-000
Bolt
RF; 1994-11-01~ |
01550-08203-000 |
— | ||
| replacements | |||||
|
36
|
36
01550-0820B-000 BoltRF; 1994-11-01~ |
01550-0820B-000 |
from US $0.91 |
||
|
36
|
36
01550-0820A-000 BOLTBolt, funnel bracket RF; 1994-11-01~ |
01550-0820A-000 |
from US $0.96 |
||
|
37
|
37
17927-78E00-000
Spacer,strap
RF; 1994-11-01~ |
17927-78E00-000 |
— | ||
|
38
|
38
M9103-08450-000
BOLT,8X45
RF; 1994-11-01~ |
M9103-08450-000 |
— | ||
