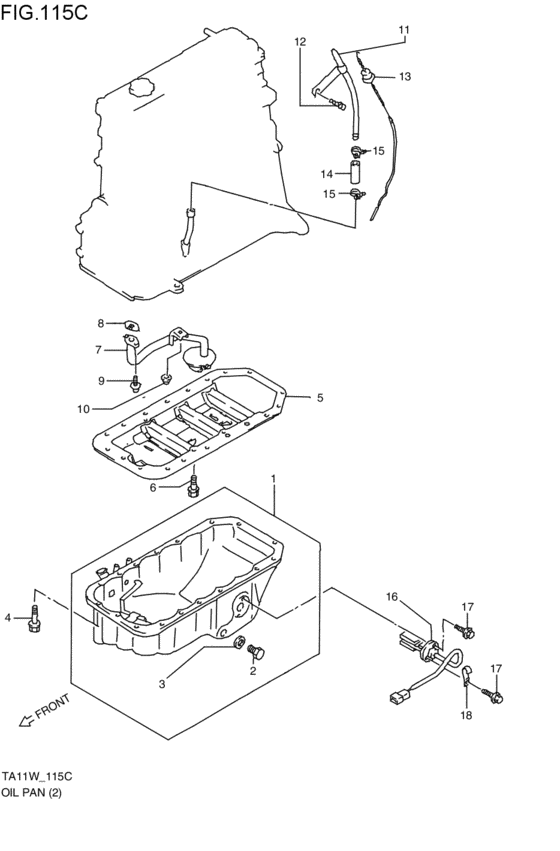

oil pan (ディーゼルターボ; RF; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11511-78E01-000
パン,オイル
RF; 1994-11-01~ |
11511-78E01-000 |
— | ||
|
2
|
2
11513-78E00-000
PLUG,DRAIN
RF; 1994-11-01~ |
11513-78E00-000 |
— | ||
|
3
|
3
M9168-14000-000 GASKETRF; 1994-11-01~ |
M9168-14000-000 |
US $1.58 |
||
|
4
|
4
M9103-06160-000
BOLT,6X16
RF; 1994-11-01~ |
M9103-06160-000 |
— | ||
|
5
|
5
11512-78E00-000
プレート,オイルバッフルオイルパン
RF; 1994-11-01~ |
11512-78E00-000 |
— | ||
| replacement | |||||
|
5
|
5
11512-78E10-000 PLATE,OIL BAFFLE OIL PANRF; 1994-11-01~ |
11512-78E10-000 |
US $118.50 |
||
|
6
|
6
M9103-06120-000 BOLT,6X12RF; 1994-11-01~ |
M9103-06120-000 |
US $1.18 |
||
|
7
|
7
16520-78E01-000
Strainer,oil
RF; 1994-11-01~ |
16520-78E01-000 |
— | ||
|
8
|
8
16527-78E00-000
GASKET,OIL STRAINER
RF; 1994-11-01~ |
16527-78E00-000 |
— | ||
|
9
|
9
M9103-06200-000
BOLT,6X20
RF; 1994-11-01~ |
M9103-06200-000 |
— | ||
|
10
|
10
08316-10063-000
Nut
RF; 1994-11-01~ |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUTRF; 1994-11-01~ |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
16931-78E00-000
PIPE,OIL LEVEL GAUGE
RF; 1994-11-01~ |
16931-78E00-000 |
— | ||
|
12
|
12
M9103-06120-000 BOLT,6X12RF; 1994-11-01~ |
M9103-06120-000 |
US $1.18 |
||
|
13
|
13
16910-78E01-000
ゲージ,オイルレベル
RF; 1994-11-01~ |
16910-78E01-000 |
— | ||
| replacement | |||||
|
13
|
13
16910-78E02-000 GAUGE,OIL LEVELRF; 1994-11-01~ |
16910-78E02-000 |
US $43.79 |
||
|
14
|
14
16932-78E00-000 HOLDER,GAUGE PIPERF; 1994-11-01~ |
16932-78E00-000 |
US $8.06 |
||
|
15
|
15
09401-15404-000 CLIPRF; 1994-11-01~ |
09401-15404-000 |
from US $1.06 |
||
|
16
|
16
16940-78E01-000
Sensor,oil level
RF; 1994-11-01~ |
16940-78E01-000 |
— | ||
|
17
|
17
M1550-06120-000
BOLT,6X12
RF; 1994-11-01~ |
M1550-06120-000 |
— | ||
|
18
|
18
M9404-05060-000
CLAMP
RF; 1994-11-01~ |
M9404-05060-000 |
— | ||
