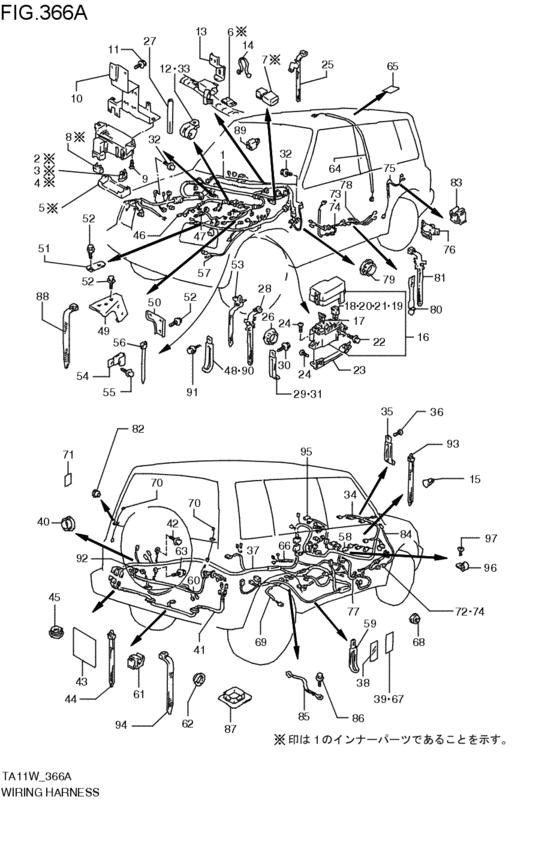

wire ring harness (エンジンハーネス / ボディハーネス; 1994-11-01~) Diagram Suzuki ESCUDO
- Year
- 1996
- Sales region
- Japan
- Engine
- RF
- transmission
- 4AT
- Number of doors
- 4DR
- grade
- XG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-78EG0-000
ハーネスアッシ,ワイヤリング,メイン
RF:4AT; 1996-02-01~ |
36610-78EG0-000 |
— | ||
|
1
|
1
36610-78E00-000
ハーネスアッシ,ワイヤリング,メイン
RF:4AT; 1994-11-01~1995-01-01 |
36610-78E00-000 |
— | ||
|
1
|
1
36610-78E02-000
ハーネスアッシ,ワイヤリング,メイン
RF:4AT; 1995-01-01~1995-05-01 |
36610-78E02-000 |
— | ||
|
2
|
2
09481-15101-000 FUSE(15A)Fuse (15a) 1994-11-01~ |
09481-15101-000 |
from US $1.28 |
||
|
3
|
3
09481-20101-000 FUSE(20A)1994-11-01~ |
09481-20101-000 |
from US $3.35 |
||
|
4
|
4
09481-25103-000 FUSE(25A)1994-11-01~ |
09481-25103-000 |
from US $2.15 |
||
|
5
|
5
36717-77E01-000 COVER,FUSE BOX1994-11-01~ |
36717-77E01-000 |
US $8.68 |
||
|
8
|
8
36795-82000-000 BREAKER,POWER WINDOW1994-11-01~ |
36795-82000-000 |
US $24.84 |
||
|
9
|
9
02142-05123-000
Screw 5x12
1994-11-01~ |
02142-05123-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0512A-000 SCREWScrew, lower 1994-11-01~ |
02142-0512A-000 |
from US $0.80 |
||
|
10
|
10
36735-77E11-000
ブラケット,フューズボックス
1994-11-01~1996-02-01 |
36735-77E11-000 |
— | ||
|
10
|
10
36735-77E13-000
Bracket,fuse box
1996-02-01~ |
36735-77E13-000 |
— | ||
|
11
|
11
01550-06103-000
Bolt, front
1994-11-01~ |
01550-06103-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0610B-000 BoltBolt 1994-11-01~ |
01550-0610B-000 |
from US $0.80 |
||
|
11
|
11
01550-0610A-000 BOLT1994-11-01~ |
01550-0610A-000 |
from US $0.80 |
||
|
13
|
13
36996-70E00-000 PROTECTOR,MAIN HARNESS1994-11-01~ |
36996-70E00-000 |
US $2.72 |
||
|
14
|
14
09408-00012-000 CLIP(ID:11.5)Clamp, stop switch lead (id:11.5) RF; 1994-11-01~ |
09408-00012-000 |
from US $3.37 |
||
|
15
|
15
09409-07320-000 CAPRF; 1994-11-01~ |
09409-07320-000 |
US $1.28 |
||
|
16
|
16
36740-77E20-000
ボックスアッシ,メインフューズ
RF; 1994-11-01~1996-05-01 |
36740-77E20-000 |
— | ||
| replacement | |||||
|
16
|
16
36740-77E21-000
BOX ASSY,MAIN FUSE
RF; 1994-11-01~1996-05-01 |
36740-77E21-000 |
— | ||
|
16
|
16
36740-77E21-000
BOX ASSY,MAIN FUSE
RF; 1996-05-01~ |
36740-77E21-000 |
— | ||
|
17
|
17
09481-15101-000 FUSE(15A)Fuse (15a) 1994-11-01~ |
09481-15101-000 |
from US $1.28 |
||
|
18
|
18
09481-30203-000 FUSE(30A)RF; 1994-11-01~1996-05-01 |
09481-30203-000 |
US $13.92 |
||
|
19
|
19
09481-50201-000
フューズ,50A
RF; 1996-05-01~ |
09481-50201-000 |
— | ||
| replacement | |||||
|
19
|
19
09481-50203-000 FUSE(50A)RF; 1996-05-01~ |
09481-50203-000 |
US $15.36 |
||
|
20
|
20
09481-60201-000
フューズ,60A
1994-11-01~ |
09481-60201-000 |
— | ||
| replacement | |||||
|
20
|
20
09481-60202-000 FUSE(60A)1994-11-01~ |
09481-60202-000 |
US $13.92 |
||
|
21
|
21
09481-80301-000 FUSE(80A)1994-11-01~ |
09481-80301-000 |
US $10.08 |
||
|
22
|
22
09138-06040-000 BOLT(6X10)1994-11-01~ |
09138-06040-000 |
US $1.52 |
||
|
23
|
23
36737-77E00-000
BRACKET,MAIN FUSE
1994-11-01~ |
36737-77E00-000 |
— | ||
|
24
|
24
02142-06103-000
Screw
1994-11-01~ |
02142-06103-000 |
— | ||
| replacements | |||||
|
24
|
24
02142-0610B-000 SCREWStopper, cl rlse cam shaft 1994-11-01~ |
02142-0610B-000 |
from US $0.76 |
||
|
24
|
24
02142-0610A-000 SCREW1994-11-01~ |
02142-0610A-000 |
from US $0.80 |
||
|
25
|
25
36990-56B00-000 CLAMP,HARN DASH PANEL1994-11-01~ |
36990-56B00-000 |
US $1.60 |
||
|
26
|
26
09308-25002-000 GROMMET1994-11-01~ |
09308-25002-000 |
US $11.80 |
||
|
27
|
27
36830-77E00-000
プロテクタ,フューズボックスブラケット
1994-11-01~ |
36830-77E00-000 |
— | ||
| replacement | |||||
|
27
|
27
75958-77E00-000 PROTECTOR,NO.41994-11-01~ |
75958-77E00-000 |
US $5.96 |
||
|
28
|
28
09407-12404-000 CLAMP(L:140)RF; 1994-11-01~ |
09407-12404-000 |
US $2.08 |
||
|
32
|
32
09115-06001-000
Bolt, lh
1994-11-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
32
|
32
09115-06005-000 BOLT(6X16)1994-11-01~ |
09115-06005-000 |
US $1.28 |
||
|
33
|
33
36649-50F60-000 CLAMP,HARNRF; 1994-11-01~ |
36649-50F60-000 |
US $4.34 |
||
|
34
|
34
36620-78E10-000
ハーネスアッシ,ワイヤリング,インストゥルメントパネル
RF; 1994-11-01~1995-01-01 |
36620-78E10-000 |
— | ||
|
34
|
34
36620-78E11-000
ハーネスアッシ,ワイヤリング,インストゥルメントパネル
RF; 1995-01-01~1995-02-01 |
36620-78E11-000 |
— | ||
|
34
|
34
36620-78E12-000
ハーネスアッシ,ワイヤリング,インストゥルメントパネル
RF; 1995-02-01~1995-05-01 |
36620-78E12-000 |
— | ||
| replacement | |||||
|
34
|
34
09407-12404-000 CLAMP(L:140)RF; 1995-02-01~1995-05-01 |
09407-12404-000 |
US $2.08 |
||
|
34
|
34
36620-78E13-000
ハーネスアッシ,ワイヤリング,インストゥルメントパネル
RF; 1995-06-01~ |
36620-78E13-000 |
— | ||
|
35
|
35
09404-06427-000
クランプ,L:80
1994-11-01~ |
09404-06427-000 |
— | ||
| replacements | |||||
|
35
|
35
09404-06434-000
CLAMP(L:80 T:1.0)
1994-11-01~ |
09404-06434-000 |
— | ||
|
35
|
35
09404-06433-000
CLAMP(L:80)
1994-11-01~ |
09404-06433-000 |
— | ||
|
35
|
35
09404-06436-000 Clamp(L:80)1994-11-01~ |
09404-06436-000 |
US $2.13 |
||
|
35
|
35
09404-06036-000 Clamp(L:80)1994-11-01~ |
09404-06036-000 |
from US $1.82 |
||
|
35
|
35
09404-06431-000
CLAMP(L:65)
1994-11-01~ |
09404-06431-000 |
— | ||
| replacements | |||||
|
35
|
35
09404-06432-000
CLAMP(L:65)
1994-11-01~ |
09404-06432-000 |
— | ||
|
35
|
35
09404-06039-000 Clamp(L:65)1994-11-01~ |
09404-06039-000 |
from US $1.82 |
||
|
35
|
35
09404-06038-000 Clamp(L:65)1994-11-01~ |
09404-06038-000 |
from US $2.40 |
||
|
36
|
36
03541-05163-000
Screw
1994-11-01~ |
03541-05163-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0516A-000 SCREW1994-11-01~ |
03541-0516A-000 |
from US $0.76 |
||
|
37
|
37
36630-77E30-000
ハーネスアッシ,ワイヤリング,フロア
4DR:(X,XG,SF5,SA2); 1994-11-01~ |
36630-77E30-000 |
— | ||
|
38
|
38
76561-60A00-000
TAPE
4DR; 1994-11-01~ |
76561-60A00-000 |
— | ||
|
39
|
39
36930-82010-000 COVER,HARNESSCover, roof wire 4DR; 1994-11-01~ |
36930-82010-000 |
from US $1.73 |
||
|
40
|
40
09308-42001-000
GROMMET
4DR; 1994-11-01~ |
09308-42001-000 |
— | ||
|
41
|
41
36640-77E10-000
ハーネスアッシ,ワイヤリング,リヤランプ
1994-11-01~ |
36640-77E10-000 |
— | ||
| replacement | |||||
|
41
|
41
36640-77E20-000 HARNESS ASSY,WRG RR LAMP1994-11-01~ |
36640-77E20-000 |
US $224.48 |
||
|
42
|
42
09129-06002-000 SCREW(6X12)1994-11-01~ |
09129-06002-000 |
US $0.96 |
||
|
43
|
43
36930-70E00-000
カバー,ハーネス
1994-11-01~ |
36930-70E00-000 |
— | ||
| replacement | |||||
|
43
|
43
36930-70E10-000 COVER,HARNESS1994-11-01~ |
36930-70E10-000 |
US $4.86 |
||
|
44
|
44
09407-11402-000 CLAMP(L:90)H20A:4DR,RF; 1994-11-01~ |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
44
|
44
09407-17402-000 CLAMPH20A:4DR,RF; 1994-11-01~ |
09407-17402-000 |
from US $1.98 |
||
|
45
|
45
09250-30010-000
Grommet
1994-11-01~ |
09250-30010-000 |
— | ||
| replacement | |||||
|
45
|
45
72999-67H00-000 CAP,OD:401994-11-01~ |
72999-67H00-000 |
from US $4.32 |
||
|
46
|
46
36650-77E91-000
ハーネスアッシ,ワイヤリング,エンジン
RF:4AT; 1994-11-01~ |
36650-77E91-000 |
— | ||
|
54
|
54
M9404-16060-000
CLAMP
RF; 1994-11-01~ |
M9404-16060-000 |
— | ||
|
55
|
55
M9103-06160-000
BOLT,6X16
RF; 1994-11-01~ |
M9103-06160-000 |
— | ||
|
56
|
56
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap RF; 1994-11-01~ |
09407-14403-000 |
from US $2.08 |
||
|
58
|
58
36660-77E90-000
HARNESS ASSY,WRG MISSION
RF:4AT; 1994-11-01~ |
36660-77E90-000 |
— | ||
|
59
|
59
09404-08420-000 CLAMP(L:120 T:1.0)(H20A,RF):4AT; 1994-11-01~ |
09404-08420-000 |
from US $2.08 |
||
|
60
|
60
36845-62A21-000 WIRE,BACK DR1994-11-01~ |
36845-62A21-000 |
US $88.32 |
||
|
61
|
61
36667-60A00-000 CLAMP,DR LOCK WIRE1994-11-01~ |
36667-60A00-000 |
US $2.32 |
||
|
62
|
62
09308-28001-000 GROMMET1994-11-01~ |
09308-28001-000 |
US $21.30 |
||
|
63
|
63
09139-05028-000 SCREW(5X14)1994-11-01~ |
09139-05028-000 |
US $11.40 |
||
|
64
|
64
36820-56B00-000
WIRE,ROOM LAMP
ノ-マルル-フ; 4DR; 1994-11-01~ |
36820-56B00-000 |
— | ||
|
65
|
65
36930-82010-000 COVER,HARNESSCover, roof wire 1994-11-01~ |
36930-82010-000 |
from US $1.73 |
||
|
69
|
69
36880-60A20-000
ワイヤ,シフトイルミネーション
4AT; 1994-11-01~1995-11-01 |
36880-60A20-000 |
— | ||
| replacement | |||||
|
69
|
69
36880-60A60-000
WIRE,SHIFT ILLUM
4AT; 1994-11-01~1995-11-01 |
36880-60A60-000 |
— | ||
|
69
|
69
36880-60A60-000
WIRE,SHIFT ILLUM
4AT; 1995-10-01~ |
36880-60A60-000 |
— | ||
|
70
|
70
36890-70C00-000 WIRE,RR DF LEAD1994-11-01~ |
36890-70C00-000 |
US $3.28 |
||
|
71
|
71
36930-82010-000 COVER,HARNESSCover, roof wire 1994-11-01~ |
36930-82010-000 |
from US $1.73 |
||
|
74
|
74
36756-62A00-000 WIRE,WDO&MIRROR DRVR4DR:(X,XD,XG,SA2); 1994-11-01~ |
36756-62A00-000 |
US $113.34 |
||
|
75
|
75
36756-62A20-000 WIRE,RR DR4DR; 1994-11-01~ |
36756-62A20-000 |
US $45.63 |
||
|
76
|
76
34935-56B00-000
CLAMP,RR DR LEAD WIRE
4DR; 1994-11-01~ |
34935-56B00-000 |
— | ||
|
77
|
77
36757-62A00-000
WIRE,DR SOL&SW
4DR; 1994-11-01~ |
36757-62A00-000 |
— | ||
|
78
|
78
36757-62A10-000 WIRE,DR SOL4DR; 1994-11-01~ |
36757-62A10-000 |
US $62.93 |
||
|
79
|
79
09308-40001-000 GROMMET1994-11-01~ |
09308-40001-000 |
US $21.70 |
||
|
80
|
80
09407-05403-000 CLAMP,L:884DR; 1994-11-01~ |
09407-05403-000 |
from US $0.91 |
||
|
81
|
81
09407-12404-000 CLAMP(L:140)1994-11-01~ |
09407-12404-000 |
US $2.08 |
||
|
82
|
82
09308-03005-000 GROMMET1994-11-01~ |
09308-03005-000 |
US $12.90 |
||
|
83
|
83
36667-60A00-000 CLAMP,DR LOCK WIRE4DR; 1994-11-01~ |
36667-60A00-000 |
US $2.32 |
||
|
84
|
84
36753-60A00-000
Wire,mirrormot
ドア ミラー; 2DR,4DR:(X,XD,XG,SA2); 1994-11-01~ |
36753-60A00-000 |
— | ||
| replacement | |||||
|
84
|
84
36753-70E00-000 WIRE,MIRROR MOTORドア ミラー; 2DR,4DR:(X,XD,XG,SA2); 1994-11-01~ |
36753-70E00-000 |
US $32.94 |
||
|
85
|
85
39312-50F01-000 WIRE,NOISE SUPPRHORN WIRE; RF; 1994-11-01~ |
39312-50F01-000 |
US $5.41 |
||
|
86
|
86
09115-06001-000
Bolt, lh
1994-11-01~ |
09115-06001-000 |
— | ||
| replacement | |||||
|
86
|
86
09115-06005-000 BOLT(6X16)1994-11-01~ |
09115-06005-000 |
US $1.28 |
||
|
87
|
87
75411-60A00-000 CAP,TAIL MEMBER LOWER1994-11-01~ |
75411-60A00-000 |
US $2.56 |
||
|
88
|
88
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 1994-11-01~ |
09407-14403-000 |
from US $2.08 |
||
|
89
|
89
39605-82000-000 WIRE,ILLUM CONT JOINT1994-11-01~1995-01-01 |
39605-82000-000 |
US $3.31 |
||
|
90
|
90
09404-08419-000 CLAMP(L:80)RF; 1994-11-01~ |
09404-08419-000 |
US $12.50 |
||
| replacement | |||||
|
90
|
90
09404-08422-000 Clamp,wiring HarnessRF; 1994-11-01~ |
09404-08422-000 |
from US $3.62 |
||
|
91
|
91
01550-08123-000
Bolt
RF; 1994-11-01~ |
01550-08123-000 |
— | ||
| replacements | |||||
|
91
|
91
01550-0812B-000 BoltPlug, drain RF; 1994-11-01~ |
01550-0812B-000 |
from US $0.96 |
||
|
91
|
91
01550-0812A-000 BOLTRF; 1994-11-01~ |
01550-0812A-000 |
from US $0.91 |
||
