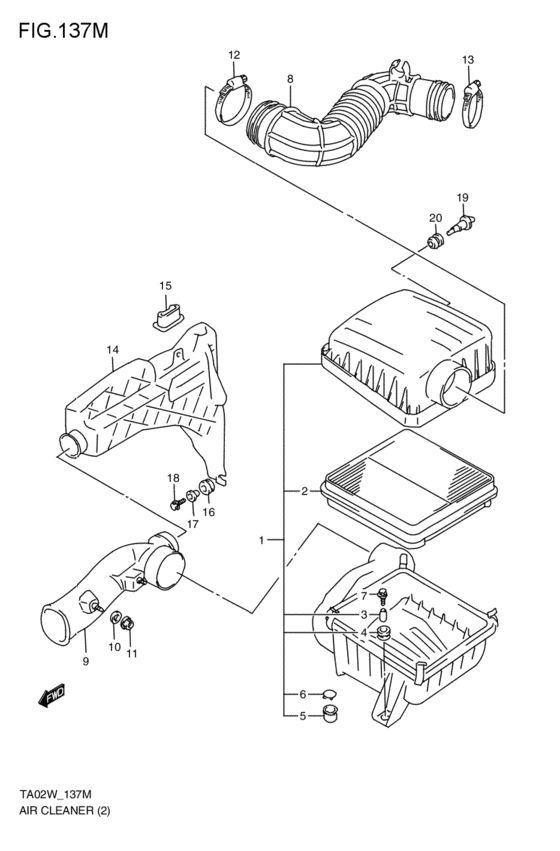

air cleaner (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-68D01-000 CLEANER ASSY AIRRF; 1998-02-01~2000-03-01 |
13700-68D01-000 |
US $236.25 |
||
| replacement | |||||
|
1
|
1
13700-68D02-000 CLEANER ASSY,AIRRF; 1998-02-01~2000-03-01 |
13700-68D02-000 |
from US $236.25 |
||
|
2
|
2
13780-77E00-000 ELEMENT,AIR CLEANERRF; 1998-02-01~2000-03-01 |
13780-77E00-000 |
from US $31.57 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.3RF; 1998-02-01~2000-03-01 |
13877-65D00-000 |
from US $2.97 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.5RF; 1998-02-01~2000-03-01 |
13878-65D00-000 |
from US $2.70 |
||
|
5
|
5
13875-78E00-000 CAP,DRAINRF; 1998-02-01~2000-03-01 |
13875-78E00-000 |
from US $1.44 |
||
|
6
|
6
13876-78E00-000 CLIPRF; 1998-02-01~2000-03-01 |
13876-78E00-000 |
from US $0.83 |
||
|
7
|
7
09116-06172-000 BOLT(6X30)Bolt (6x30) RF; 1998-02-01~2000-03-01 |
09116-06172-000 |
from US $1.01 |
||
|
8
|
8
13881-78E00-000 HOSE,AIR CLEANER OUTLETRF; 1998-02-01~2000-03-01 |
13881-78E00-000 |
US $52.62 |
||
|
9
|
9
13820-65D00-000 CASE,AIR CLNR SUCTIONRF; 1998-02-01~2000-03-01 |
13820-65D00-000 |
from US $59.81 |
||
|
10
|
10
13874-51E50-000 CUSHION,RESONATOR NO.2RF; 1998-02-01~2000-03-01 |
13874-51E50-000 |
from US $2.10 |
||
|
11
|
11
08361-25063-000
Nut
RF; 1998-02-01~2000-03-01 |
08361-25063-000 |
— | ||
| replacement | |||||
|
11
|
11
08361-2506A-000 NUTRF; 1998-02-01~2000-03-01 |
08361-2506A-000 |
US $0.80 |
||
|
12
|
12
09402-82511-000 CLAMPRF; 1998-02-01~2000-03-01 |
09402-82511-000 |
from US $5.90 |
||
|
13
|
13
09402-57511-000 CLAMPRF; 1998-02-01~2000-03-01 |
09402-57511-000 |
from US $6.24 |
||
|
14
|
14
13761-65D00-000 RESONATORRF; 1998-02-01~2000-03-01 |
13761-65D00-000 |
from US $48.65 |
||
|
15
|
15
13765-65D00-000 CUSHION,RESONATOR,UPPERRF; 1998-02-01~2000-03-01 |
13765-65D00-000 |
from US $4.70 |
||
|
16
|
16
09320-08047-000
CUSHION
RF; 1998-02-01~2000-03-01 |
09320-08047-000 |
— | ||
| replacement | |||||
|
16
|
16
09320-08518-000 CushionRF; 1998-02-01~2000-03-01 |
09320-08518-000 |
from US $1.52 |
||
|
17
|
17
09169-07007-000 WASHERRF; 1998-02-01~2000-03-01 |
09169-07007-000 |
US $26.50 |
||
|
18
|
18
02162-06203-000
Bolt
RF; 1998-02-01~2000-03-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
02162-0620C-000 SCREWRF; 1998-02-01~2000-03-01 |
02162-0620C-000 |
from US $0.83 |
||
|
19
|
19
13650-52G00-000 SENSOR,INLET AIR TEMPSensor, inlet air temp RF; 1998-02-01~2000-03-01 |
13650-52G00-000 |
from US $50.92 |
||
|
20
|
20
13655-77E00-000
GROMMET,AIR TEMP SENSOR
RF; 1998-02-01~2000-03-01 |
13655-77E00-000 |
— | ||
| replacement | |||||
|
20
|
20
13655-77E10-000 Grommet,air Temp SensorRF; 1998-02-01~2000-03-01 |
13655-77E10-000 |
from US $2.88 |
||
