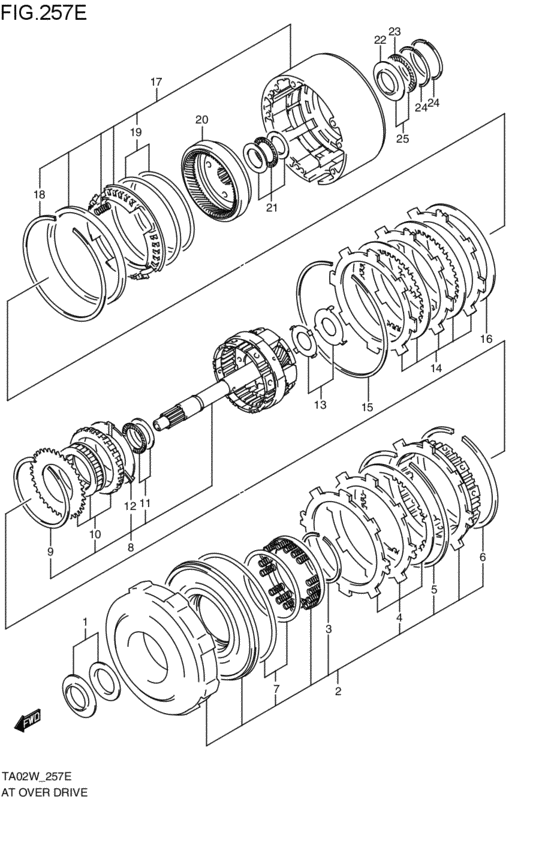

at - overdrive (AT; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24963-57BT0-000 BEARING SET,THRUST NO.5AT; 1997-11-01~2000-03-01 |
24963-57BT0-000 |
from US $56.99 |
||
|
2
|
2
24100-85FA0-000
CLUTCH ASSY,OVER DRIVE
AT:(G16A,RF); 1997-11-01~2000-03-01 |
24100-85FA0-000 |
— | ||
|
3
|
3
28949-57B00-000 RING,SNAP B1 BRAKEAT; 1997-11-01~2000-03-01 |
28949-57B00-000 |
from US $7.52 |
||
|
4
|
4
24111-85FT0-000 DISC SET,O/D CLUTCHAT; 1997-11-01~2000-03-01 |
24111-85FT0-000 |
US $207.92 |
||
|
5
|
5
24191-57B00-000 RING,RETAINING O/D CLAT; 1997-11-01~2000-03-01 |
24191-57B00-000 |
from US $8.96 |
||
|
6
|
6
24192-57B00-000 RING,RETAINING BRAKE HUBAT; 1997-11-01~2000-03-01 |
24192-57B00-000 |
US $17.70 |
||
|
7
|
7
26622-65DT0-000 O-RING SET,CLUTCHAT; 1997-11-01~2000-03-01 |
26622-65DT0-000 |
from US $20.86 |
||
|
8
|
8
24140-85FA0-000
Gear assy,over drive
AT:RF; 1998-02-01~2000-03-01 |
24140-85FA0-000 |
— | ||
|
9
|
9
24193-57B00-000 RING,RETAINING O/D PLNTYAT; 1997-11-01~2000-03-01 |
24193-57B00-000 |
US $9.09 |
||
|
10
|
10
26850-77ET0-000 CLUTCH ASSY,O/D ONE WAYAT:(J20A,RF,H25A); 1997-11-01~2000-03-01 |
26850-77ET0-000 |
US $349.60 |
||
|
11
|
11
29698-57B00-000 BEARING,THRUSTAT; 1997-11-01~2000-03-01 |
29698-57B00-000 |
US $46.37 |
||
|
13
|
13
24163-57BT0-000
ワッシャセット,スラストプラネタリ
AT; 1997-11-01~2000-03-01 |
24163-57BT0-000 |
— | ||
| replacement | |||||
|
13
|
13
24163-57BT1-000 WASHER SET,THRUST PLNTYAT; 1997-11-01~2000-03-01 |
24163-57BT1-000 |
from US $44.89 |
||
|
15
|
15
24194-57B00-000 RING,RETAINING O/D BRAKE FRAT; 1997-11-01~2000-03-01 |
24194-57B00-000 |
from US $14.29 |
||
|
16
|
16
24118-57B00-000 PLATE,CUSHION O/D BRAKEAT; 1997-11-01~2000-03-01 |
24118-57B00-000 |
US $57.04 |
||
|
17
|
17
26310-67DT0-000
ピストンアッシ,O/Dブレーキ
AT:(RF,H25A); 1997-11-01~2000-03-01 |
26310-67DT0-000 |
— | ||
| replacement | |||||
|
17
|
17
26310-67DT1-000
PISTON ASSY,O/D BRAKE
AT:(RF,H25A); 1997-11-01~2000-03-01 |
26310-67DT1-000 |
— | ||
|
18
|
18
24194-57B00-000 RING,RETAINING O/D BRAKE FRAT; 1997-11-01~2000-03-01 |
24194-57B00-000 |
from US $14.29 |
||
|
19
|
19
29745-57BT0-000 O-RING SET,O/D BRAKE PISTONAT; 1997-11-01~2000-03-01 |
29745-57BT0-000 |
from US $28.04 |
||
|
20
|
20
24142-57B00-000 GEAR,O/D PLNTY RINGAT; 1997-11-01~2000-03-01 |
24142-57B00-000 |
from US $358.31 |
||
|
21
|
21
24961-57BT0-000 BEARING SET,THRUST NO.3AT; 1997-11-01~2000-03-01 |
24961-57BT0-000 |
US $52.26 |
||
|
24
|
24
29797-57B00-000
リング,シール,リヤ
AT; 1997-11-01~2000-03-01 |
29797-57B00-000 |
— | ||
| replacement | |||||
|
24
|
24
29797-65D30-000 RING,SEAL B1 BRAKE FRAT; 1997-11-01~2000-03-01 |
29797-65D30-000 |
US $19.50 |
||
|
25
|
25
24964-57BT0-000 BEARING SET,THRUST NO.6AT; 1997-11-01~2000-03-01 |
24964-57BT0-000 |
US $33.12 |
||
