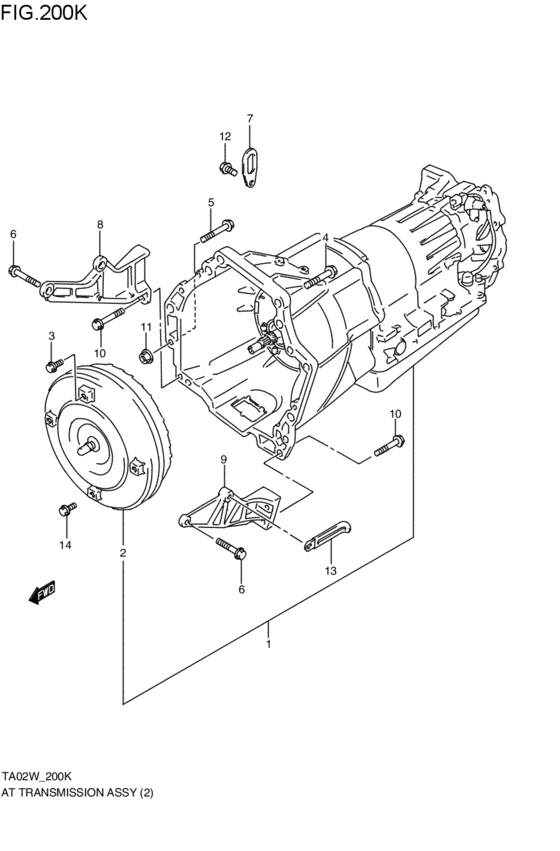

at - transmission assy (AT:RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-78EB0-000
トランスミッションアッシ,オートマチック
AT:RF; 1998-02-01~2000-03-01 |
21000-78EB0-000 |
— | ||
|
1
|
1
21000-78EB0-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; AT:RF; 1998-02-01~2000-03-01 |
21000-78EB0-111 |
— | ||
|
2
|
2
22700-85FD0-000
CONVERTER,TORQUE
AT:RF; 1998-02-01~2000-03-01 |
22700-85FD0-000 |
— | ||
|
3
|
3
09103-10286-000 BOLT(10X12)AT:RF; 1998-02-01~2000-03-01 |
09103-10286-000 |
from US $1.92 |
||
|
4
|
4
24865-78EA0-000 BOLT,BLOCK&T/M CASE NO.1AT:RF; 1998-02-01~2000-03-01 |
24865-78EA0-000 |
US $5.26 |
||
|
5
|
5
24865-78EB0-000
BOLT,BLOCK&T/M CASE NO.2
AT:RF; 1998-02-01~2000-03-01 |
24865-78EB0-000 |
— | ||
|
6
|
6
M9103-08160-000
BOLT,8X16
AT:RF; 1998-02-01~2000-03-01 |
M9103-08160-000 |
— | ||
|
7
|
7
11851-62B00-000 HOOKAT:RF; 1998-02-01~2000-03-01 |
11851-62B00-000 |
from US $1.87 |
||
|
8
|
8
24791-78EA0-000
STIFFENER,T/M R
AT:RF; 1998-02-01~2000-03-01 |
24791-78EA0-000 |
— | ||
|
9
|
9
24792-78EA0-000
スチフナ,トランスミッション,レフト
AT:RF; 1998-02-01~2000-03-01 |
24792-78EA0-000 |
— | ||
|
10
|
10
01550-10353-000
Bolt
AT:RF; 1998-02-01~2000-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1035A-000 BoltBolt, fr fork upper AT:RF; 1998-02-01~2000-03-01 |
01550-1035A-000 |
from US $1.62 |
||
|
11
|
11
09159-14015-000 NUTAT:RF; 1998-02-01~2000-03-01 |
09159-14015-000 |
from US $2.08 |
||
|
12
|
12
01550-08123-000
Bolt
AT:RF; 1998-02-01~2000-03-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0812B-000 BoltPlug, drain AT:RF; 1998-02-01~2000-03-01 |
01550-0812B-000 |
from US $0.96 |
||
|
12
|
12
01550-0812A-000 BoltAT:RF; 1998-02-01~2000-03-01 |
01550-0812A-000 |
from US $0.91 |
||
|
13
|
13
09404-10204-000
CLAMP(L:62)
AT:RF; 1998-02-01~2000-03-01 |
09404-10204-000 |
— | ||
| replacement | |||||
|
13
|
13
09404-10206-000 ClampAT:RF; 1998-02-01~2000-03-01 |
09404-10206-000 |
from US $3.21 |
||
|
14
|
14
22791-65D10-000
ボルト,トルクコンバータ,10X12
AT:RF; 1998-02-01~2000-03-01 |
22791-65D10-000 |
— | ||
| replacement | |||||
|
14
|
14
09103-10340-000 BOLT(10X12)AT:RF; 1998-02-01~2000-03-01 |
09103-10340-000 |
US $15.10 |
||
