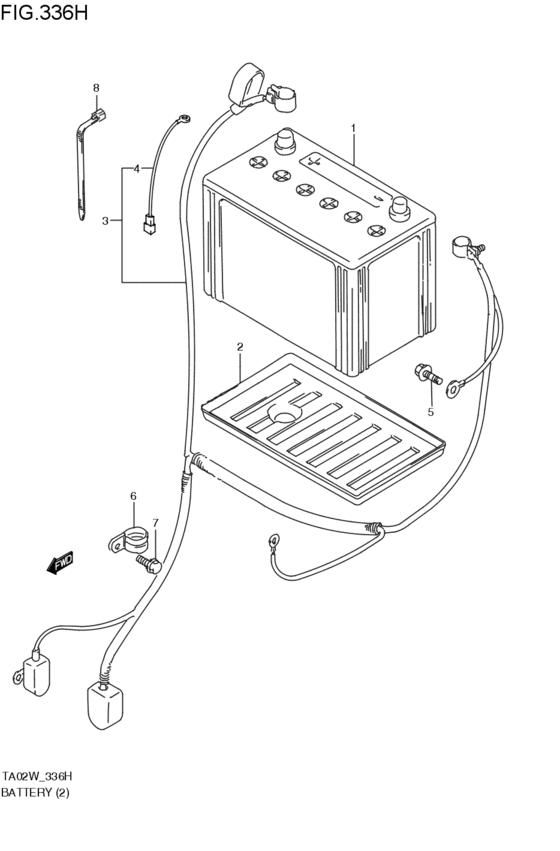

battery (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-77E90-000
バッテリ,115D31LーMF12V72AH/5HR,FB
FB; RF; 1998-02-01~2000-03-01 |
33610-77E90-000 |
— | ||
| replacement | |||||
|
1
|
1
33610-77EV0-000
Battery assy
FB; RF; 1998-02-01~2000-03-01 |
33610-77EV0-000 |
— | ||
|
2
|
2
33660-77E90-000 TRAY,BATTERYRF; 1998-02-01~2000-03-01 |
33660-77E90-000 |
US $16.52 |
||
|
3
|
3
33800-68D10-000
Cable assy,btry
RF; 1998-02-01~2000-03-01 |
33800-68D10-000 |
— | ||
|
4
|
4
36740-82200-000
LINK ASSY,FUSIBLE(RED)
レツド; RF; 1998-02-01~2000-03-01 |
36740-82200-000 |
— | ||
|
5
|
5
09115-06001-000
Bolt, lh
RF; 1998-02-01~2000-03-01 |
09115-06001-000 |
— | ||
| replacement | |||||
|
5
|
5
09115-06005-000 BOLT(6X16)RF; 1998-02-01~2000-03-01 |
09115-06005-000 |
US $1.28 |
||
|
6
|
6
36649-50F60-000 CLAMP,HARNRF; 1998-02-01~2000-03-01 |
36649-50F60-000 |
US $4.34 |
||
|
7
|
7
02162-06123-000
Bolt (6x12)
RF; 1998-02-01~2000-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
02162-0612B-000 SCREWBolt RF; 1998-02-01~2000-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
7
|
7
02162-0612A-000 SCREWBolt, bracket RF; 1998-02-01~2000-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
8
|
8
09407-18402-000 CLAMP(L:165)Clamp (l:165) RF; 1998-02-01~2000-03-01 |
09407-18402-000 |
from US $1.98 |
||
