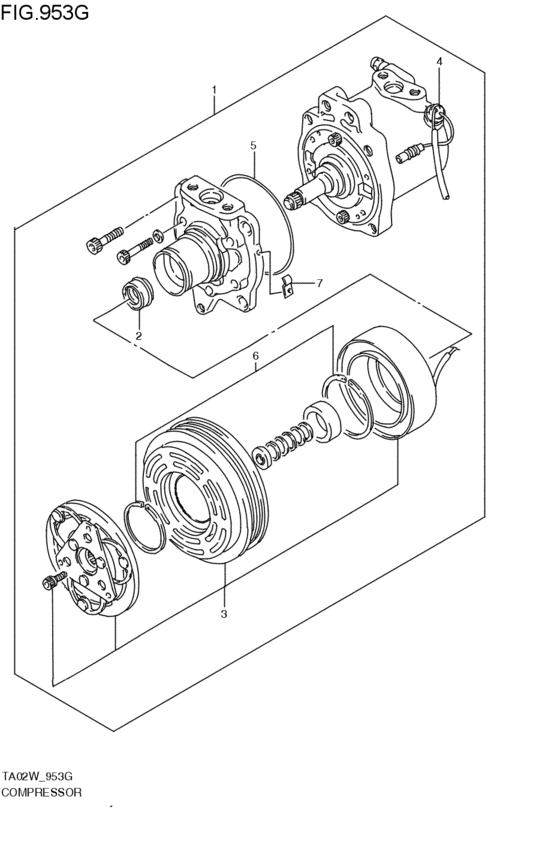

compressor (1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-70C20-000 COMPRESSOR ASSYRF; 1998-02-01~2000-03-01 |
95200-70C20-000 |
US $1,462 |
||
|
2
|
2
95261-70B00-000
Seal, lip
1997-11-01~2000-03-01 |
95261-70B00-000 |
— | ||
|
3
|
3
95210-70C10-000
MAGNET,CLUTCH
RF; 1998-02-01~2000-03-01 |
95210-70C10-000 |
— | ||
| replacement | |||||
|
3
|
3
95210-70C11-000
CLUTCH,MAGNET
RF; 1998-02-01~2000-03-01 |
95210-70C11-000 |
— | ||
|
4
|
4
95527-72B00-000 SWITCH,THERMALRF,H25A; 1998-02-01~2000-03-01 |
95527-72B00-000 |
US $22.40 |
||
|
5
|
5
95262-70B00-000
O ring
1997-11-01~2000-03-01 |
95262-70B00-000 |
— | ||
|
6
|
6
95298-72B20-000
Clip kit
1997-11-01~2000-03-01 |
95298-72B20-000 |
— | ||
| replacement | |||||
|
6
|
6
95298-72B21-000 CLIP KIT1997-11-01~2000-03-01 |
95298-72B21-000 |
US $20.24 |
||
|
7
|
7
95291-70B00-000 FIXING PLATE1997-11-01~2000-03-01 |
95291-70B00-000 |
US $5.52 |
||
