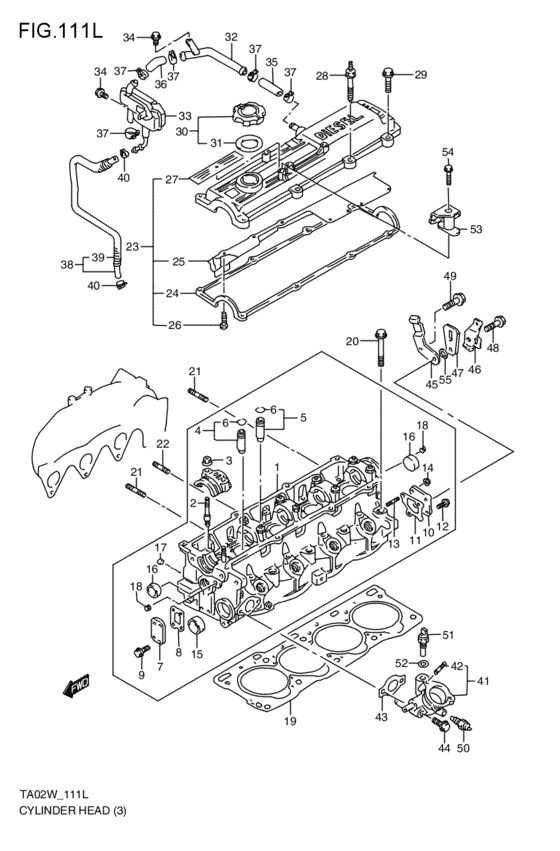

Cylinder head (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11111-78E11-000
ヘッド,シリンダ
RF; 1998-02-01~2000-03-01 |
11111-78E11-000 |
— | ||
| replacement | |||||
|
1
|
1
11111-78E13-000
Head,cylinder
RF; 1998-02-01~2000-03-01 |
11111-78E13-000 |
— | ||
|
2
|
2
11120-78E00-000
Stud bolt
RF; 1998-02-01~2000-03-01 |
11120-78E00-000 |
— | ||
|
3
|
3
11121-78E00-000
NUT,CAP
RF; 1998-02-01~2000-03-01 |
11121-78E00-000 |
— | ||
|
4
|
4
11116-78E01-000 GUIDE,VALVERF; 1998-02-01~2000-03-01 |
11116-78E01-000 |
US $15.71 |
||
|
5
|
5
11115-78E00-000 GUIDE,VALVERF; 1998-02-01~2000-03-01 |
11115-78E00-000 |
US $15.71 |
||
|
6
|
6
11117-78E00-000
CLIP,VALVE GUIDE
RF; 1998-02-01~2000-03-01 |
11117-78E00-000 |
— | ||
|
7
|
7
11123-78E00-000
Cover,blind,no.2
RF; 1998-02-01~2000-03-01 |
11123-78E00-000 |
— | ||
|
8
|
8
11125-78E00-000
GASKET,BLIND COVER,NO.2
RF; 1998-02-01~2000-03-01 |
11125-78E00-000 |
— | ||
|
9
|
9
M1550-06080-000
BOLT,6X8
RF; 1998-02-01~2000-03-01 |
M1550-06080-000 |
— | ||
|
10
|
10
11122-68D00-000
カバー,ブラインド,NO.1
E.NO.MS-113728ヨリ; RF; 1998-02-01~2000-03-01 |
11122-68D00-000 |
— | ||
| replacements | |||||
|
10
|
10
11122-68D01-000
Cover,blind,no.1
E.NO.MS-113728ヨリ; RF; 1998-02-01~2000-03-01 |
11122-68D01-000 |
— | ||
|
10
|
10
M9103-06140-000
BOLT,6X14
E.NO.MS-113728ヨリ; RF; 1998-02-01~2000-03-01 |
M9103-06140-000 |
— | ||
|
10
|
10
11122-78E00-000
COVER,BLIND NO.1
E.NO.MS-113727マデ; RF; 1998-02-01~2000-03-01 |
11122-78E00-000 |
— | ||
|
11
|
11
11124-78E00-000 GASKET,BLIND COVER,NO.1RF; 1998-02-01~2000-03-01 |
11124-78E00-000 |
US $7.18 |
||
|
12
|
12
M9103-06162-000
BOLT,6X12
RF; 1998-02-01~2000-03-01 |
M9103-06162-000 |
— | ||
|
13
|
13
M1421-06200-000
STUD BOLT
RF; 1998-02-01~2000-03-01 |
M1421-06200-000 |
— | ||
|
14
|
14
08316-10063-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1006B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
15
|
15
M9241-35000-000
PLUG
RF; 1998-02-01~2000-03-01 |
M9241-35000-000 |
— | ||
|
16
|
16
M9241-25000-000 PLUGRF; 1998-02-01~2000-03-01 |
M9241-25000-000 |
US $11.95 |
||
|
17
|
17
M9241-12000-000
PLUG
RF; 1998-02-01~2000-03-01 |
M9241-12000-000 |
— | ||
|
18
|
18
M9246-20001-000 PLUGRF; 1998-02-01~2000-03-01 |
M9246-20001-000 |
US $3.20 |
||
|
19
|
19
11141-78E11-000 GASKET,CYL HEADRF; 1998-02-01~2000-03-01 |
11141-78E11-000 |
US $171.86 |
||
|
20
|
20
11119-78E00-000
ボルト,シリンダヘッド
RF; 1998-02-01~2000-03-01 |
11119-78E00-000 |
— | ||
| replacement | |||||
|
20
|
20
11119-78E10-000 BOLT,CYLINDER HEADRF; 1998-02-01~2000-03-01 |
11119-78E10-000 |
US $18.95 |
||
|
21
|
21
M1421-08280-000 STUD BOLTRF; 1998-02-01~2000-03-01 |
M1421-08280-000 |
US $1.80 |
||
|
22
|
22
M1421-08060-000
STUD BOLT
RF; 1998-02-01~2000-03-01 |
M1421-08060-000 |
— | ||
|
23
|
23
11170-68D01-000
Cover,cylinder head
RF; 1998-02-01~2000-03-01 |
11170-68D01-000 |
— | ||
|
24
|
24
11189-78E00-000
GASKET,CYL HEAD COVER
RF; 1998-02-01~2000-03-01 |
11189-78E00-000 |
— | ||
|
25
|
25
11172-78E00-000
Plate,oil baffle
RF; 1998-02-01~2000-03-01 |
11172-78E00-000 |
— | ||
|
26
|
26
M3241-04081-000
SCREW
RF; 1998-02-01~2000-03-01 |
M3241-04081-000 |
— | ||
|
27
|
27
11178-78E00-000
LABEL,CYLINDER HEAD BOLT
RF; 1998-02-01~2000-03-01 |
11178-78E00-000 |
— | ||
|
28
|
28
11177-78E00-000
STUD BOLT
RF; 1998-02-01~2000-03-01 |
11177-78E00-000 |
— | ||
|
29
|
29
M9103-06350-000
BOLT,6X35
RF; 1998-02-01~2000-03-01 |
M9103-06350-000 |
— | ||
|
30
|
30
16920-78E00-000
Cap,oil filler
RF; 1998-02-01~2000-03-01 |
16920-78E00-000 |
— | ||
|
31
|
31
16921-78E00-000
Gasket
RF; 1998-02-01~2000-03-01 |
16921-78E00-000 |
— | ||
| replacement | |||||
|
31
|
31
16921-78E01-000 GASKET,OIL FILLER CAPRF; 1998-02-01~2000-03-01 |
16921-78E01-000 |
US $3.57 |
||
|
32
|
32
11173-78E10-000 PIPE,BREATHERRF; 1998-02-01~2000-03-01 |
11173-78E10-000 |
US $17.55 |
||
|
33
|
33
11173-78E20-000
PIPE,BREATHER
RF; 1998-02-01~2000-03-01 |
11173-78E20-000 |
— | ||
|
34
|
34
M9103-06160-000
BOLT,6X16
RF; 1998-02-01~2000-03-01 |
M9103-06160-000 |
— | ||
|
35
|
35
11175-78E10-000
Hose,purge control valve
RF; 1998-02-01~2000-03-01 |
11175-78E10-000 |
— | ||
|
36
|
36
11176-78E10-000
HOSE,PURGE CONTROL VALVE
RF; 1998-02-01~2000-03-01 |
11176-78E10-000 |
— | ||
|
37
|
37
M9401-21000-000
CLIP
RF; 1998-02-01~2000-03-01 |
M9401-21000-000 |
— | ||
|
38
|
38
11179-78E00-000
HOSE,OIL
RF; 1998-02-01~2000-03-01 |
11179-78E00-000 |
— | ||
|
39
|
39
11174-78E00-000
PROTECTOR
RF; 1998-02-01~2000-03-01 |
11174-78E00-000 |
— | ||
|
40
|
40
M9401-11000-000
CLIP
RF; 1998-02-01~2000-03-01 |
M9401-11000-000 |
— | ||
|
41
|
41
17562-78E10-000
CASING,THERMOSTAT
RF; 1998-02-01~2000-03-01 |
17562-78E10-000 |
— | ||
|
42
|
42
M1421-06180-000
STUD BOLT
RF; 1998-02-01~2000-03-01 |
M1421-06180-000 |
— | ||
|
43
|
43
17699-78E00-000
GASKET,THERMOSTAT CASE
RF; 1998-02-01~2000-03-01 |
17699-78E00-000 |
— | ||
|
44
|
44
M9103-08450-000
BOLT,8X45
RF; 1998-02-01~2000-03-01 |
M9103-08450-000 |
— | ||
|
45
|
45
11181-78E01-000
STAY,SEAL CAP
RF; 1998-02-01~2000-03-01 |
11181-78E01-000 |
— | ||
|
46
|
46
11181-68D00-000
ステー,シールキャップ
RF; 1998-02-01~2000-03-01 |
11181-68D00-000 |
— | ||
|
47
|
47
11182-78E10-000
ハンガ,エンジン
RF; 1998-02-01~2000-03-01 |
11182-78E10-000 |
— | ||
|
48
|
48
M9103-08250-000
B0LT,8X25
RF; 1998-02-01~2000-03-01 |
M9103-08250-000 |
— | ||
|
49
|
49
M9103-08200-000
BOLT,8X20
RF; 1998-02-01~2000-03-01 |
M9103-08200-000 |
— | ||
|
50
|
50
34850-78E00-000 GAUGE ASSY,WATER TEMPマ-ク:NTC,ニホンサーモスタット; RF; 1998-02-01~2000-03-01 |
34850-78E00-000 |
US $48.94 |
||
|
51
|
51
13650-78E00-000 Sensor,water TempRF; 1998-02-01~2000-03-01 |
13650-78E00-000 |
US $73.97 |
||
|
52
|
52
M9280-12000-000 O RINGRF; 1998-02-01~2000-03-01 |
M9280-12000-000 |
US $1.40 |
||
|
53
|
53
13127-68D00-000
ブラケット,アクセルケーブル
RF; 1998-02-01~2000-03-01 |
13127-68D00-000 |
— | ||
|
54
|
54
M9103-08500-000
BOLT,8X50
RF; 1998-02-01~2000-03-01 |
M9103-08500-000 |
— | ||
|
55
|
55
M8322-11080-000
WASHER
RF; 1998-02-01~2000-03-01 |
M8322-11080-000 |
— | ||
