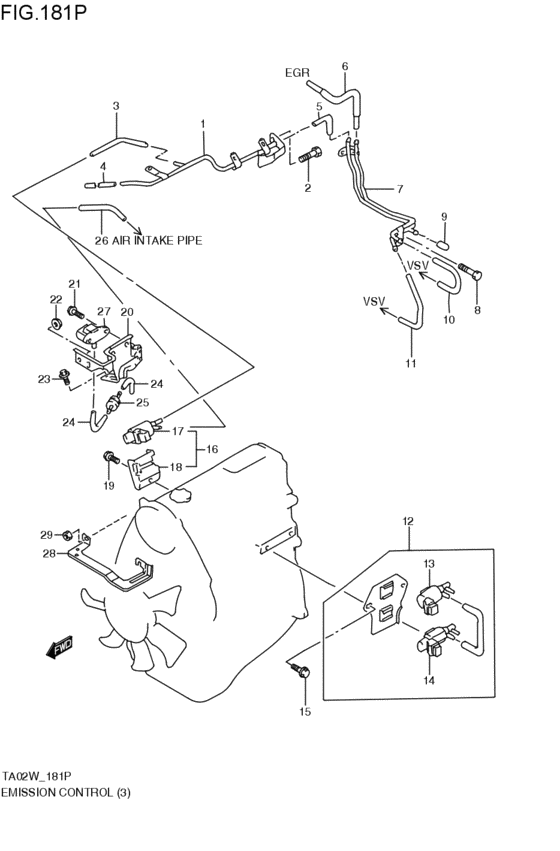

emission control (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18341-78E10-000 PIPE,VACUUMRF; 1998-02-01~2000-03-01 |
18341-78E10-000 |
US $40.11 |
||
|
2
|
2
M9103-06120-000 BOLT,6X12RF; 1998-02-01~2000-03-01 |
M9103-06120-000 |
US $1.18 |
||
|
3
|
3
18371-78E00-000
TUBE,VACUUM
RF; 1998-02-01~2000-03-01 |
18371-78E00-000 |
— | ||
|
4
|
4
18372-78E00-000
チューブ,バキューム
RF; 1998-02-01~2000-03-01 |
18372-78E00-000 |
— | ||
|
5
|
5
18363-78E00-000
チューブ,バキューム
RF; 1998-02-01~2000-03-01 |
18363-78E00-000 |
— | ||
|
6
|
6
18367-78E00-000 TUBE,VACUUMRF; 1998-02-01~2000-03-01 |
18367-78E00-000 |
US $22.45 |
||
|
7
|
7
18343-78E10-000
パイプ,バキューム
RF; 1998-02-01~2000-03-01 |
18343-78E10-000 |
— | ||
|
8
|
8
M1550-10160-000
BOLT,10X16
RF; 1998-02-01~2000-03-01 |
M1550-10160-000 |
— | ||
|
9
|
9
18368-78E00-000
CAP,BLIND
RF; 1998-02-01~2000-03-01 |
18368-78E00-000 |
— | ||
|
10
|
10
18365-78E00-000
HOSE,L:1000
RF; 1998-02-01~2000-03-01 |
18365-78E00-000 |
— | ||
|
11
|
11
18366-78E00-000
TUBE,VACUUM
RF; 1998-02-01~2000-03-01 |
18366-78E00-000 |
— | ||
|
12
|
12
18130-78E10-000
VALVE,SOLENOID
RF; 1998-02-01~2000-03-01 |
18130-78E10-000 |
— | ||
|
13
|
13
18131-78E00-000
VALVE,3WAY
RF; 1998-02-01~2000-03-01 |
18131-78E00-000 |
— | ||
|
14
|
14
18132-78E00-000 VALVE,3WAYRF; 1998-02-01~2000-03-01 |
18132-78E00-000 |
US $104.51 |
||
|
15
|
15
M9103-06160-000
BOLT,6X16
RF; 1998-02-01~2000-03-01 |
M9103-06160-000 |
— | ||
|
16
|
16
18140-78E00-000 VALVE,SOLENOIDRF; 1998-02-01~2000-03-01 |
18140-78E00-000 |
US $127.33 |
||
|
17
|
17
18141-78E00-000
VALVE,SOLENOID
RF; 1998-02-01~2000-03-01 |
18141-78E00-000 |
— | ||
|
18
|
18
18142-78E00-000
BRACKET,SOLENOID VALVE
RF; 1998-02-01~2000-03-01 |
18142-78E00-000 |
— | ||
|
19
|
19
M9103-06160-000
BOLT,6X16
RF; 1998-02-01~2000-03-01 |
M9103-06160-000 |
— | ||
|
20
|
20
18143-78E02-000
ブラケット,エアバイパスバルブ
RF; 1998-02-01~2000-03-01 |
18143-78E02-000 |
— | ||
| replacements | |||||
|
20
|
20
18143-78E03-000
BRACKET,AIR BYPASS VALVE
RF; 1998-02-01~2000-03-01 |
18143-78E03-000 |
— | ||
|
20
|
20
M9103-06160-000
BOLT,6X16
RF; 1998-02-01~2000-03-01 |
M9103-06160-000 |
— | ||
|
21
|
21
M1550-06140-000
BOLT,6X14
RF; 1998-02-01~2000-03-01 |
M1550-06140-000 |
— | ||
|
22
|
22
08316-10063-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
22
|
22
08316-1006B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
M9103-06120-000 BOLT,6X12RF; 1998-02-01~2000-03-01 |
M9103-06120-000 |
US $1.18 |
||
|
24
|
24
18362-78E10-000 HOSE,VACUUMRF; 1998-02-01~2000-03-01 |
18362-78E10-000 |
US $6.99 |
||
|
25
|
25
18133-78E10-000 FILTER,AIRRF; 1998-02-01~2000-03-01 |
18133-78E10-000 |
US $16.89 |
||
|
26
|
26
18371-78E10-000
HOSE,VACUUM
RF; 1998-02-01~2000-03-01 |
18371-78E10-000 |
— | ||
|
27
|
27
18590-78E00-000
センサ,ブースト
RF; 1998-02-01~2000-03-01 |
18590-78E00-000 |
— | ||
| replacement | |||||
|
27
|
27
18590-78E01-000 SENSOR,BOOSTRF; 1998-02-01~2000-03-01 |
18590-78E01-000 |
US $336.72 |
||
|
28
|
28
18345-78E01-000
BRACKET,HARN
RF; 1998-02-01~2000-03-01 |
18345-78E01-000 |
— | ||
|
29
|
29
08316-10063-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1006B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
