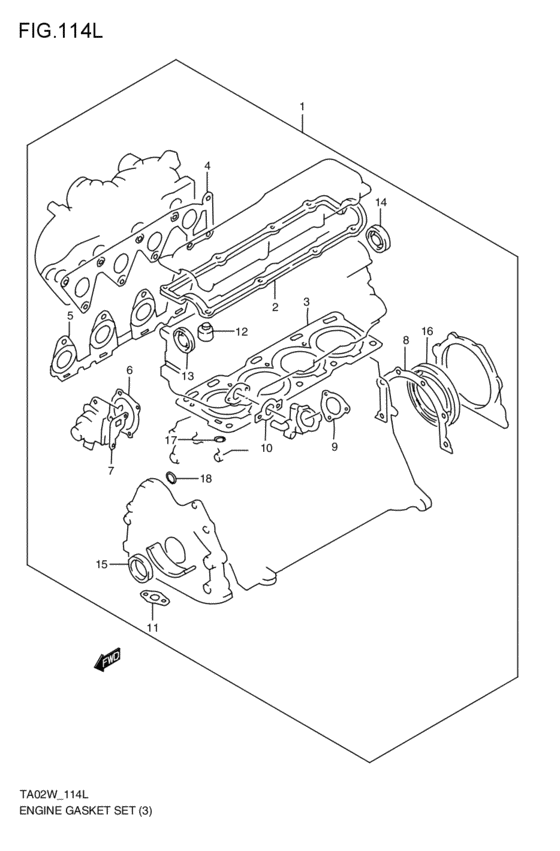

engine gasket set (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11401-78851-000
GASKET SET ENGINE
RF; 1998-02-01~2000-03-01 |
11401-78851-000 |
— | ||
| replacement | |||||
|
1
|
1
11401-78852-000
GASKET SET,ENGINE
RF; 1998-02-01~2000-03-01 |
11401-78852-000 |
— | ||
|
2
|
2
11189-78E00-000
GASKET,CYL HEAD COVER
RF; 1998-02-01~2000-03-01 |
11189-78E00-000 |
— | ||
|
3
|
3
11141-78E11-000 GASKET,CYL HEADRF; 1998-02-01~2000-03-01 |
11141-78E11-000 |
from US $93.44 |
||
|
4
|
4
13119-78E00-000
GASKET,INTK MANF
RF; 1998-02-01~2000-03-01 |
13119-78E00-000 |
— | ||
|
5
|
5
14141-78E00-000 GASKET,EXH MANFRF; 1998-02-01~2000-03-01 |
14141-78E00-000 |
US $91.42 |
||
|
6
|
6
17431-78E00-000 GASKET,WATER PUMP COVERRF; 1998-02-01~2000-03-01 |
17431-78E00-000 |
from US $4.52 |
||
|
7
|
7
17432-78E00-000
ガスケット,ウォータポンプハウジング
RF; 1998-02-01~2000-03-01 |
17432-78E00-000 |
— | ||
| replacement | |||||
|
7
|
7
17432-78E01-000 GASKET,WATER PUMP HOUSINGRF; 1998-02-01~2000-03-01 |
17432-78E01-000 |
from US $5.09 |
||
|
8
|
8
11313-78E00-000 GASKET,RR COVERRF; 1998-02-01~2000-03-01 |
11313-78E00-000 |
US $6.56 |
||
|
9
|
9
17569-78E00-000 GASKET,THERMOSTAT COVERRF; 1998-02-01~2000-03-01 |
17569-78E00-000 |
US $7.40 |
||
|
10
|
10
17699-78E00-000
GASKET,THERMOSTAT CASE
RF; 1998-02-01~2000-03-01 |
17699-78E00-000 |
— | ||
|
11
|
11
16527-78E00-000
GASKET,OIL STRAINER
RF; 1998-02-01~2000-03-01 |
16527-78E00-000 |
— | ||
|
12
|
12
12919-78E00-000 SEAL,VALVERF; 1998-02-01~2000-03-01 |
12919-78E00-000 |
from US $8.19 |
||
|
13
|
13
11378-78E01-000 SEAL,OILRF; 1998-02-01~2000-03-01 |
11378-78E01-000 |
US $15.05 |
||
|
14
|
14
11379-78E00-000 CAP,OIL SEALRF; 1998-02-01~2000-03-01 |
11379-78E00-000 |
US $3.40 |
||
|
15
|
15
16114-78E01-000 SEAL,OILRF; 1998-02-01~2000-03-01 |
16114-78E01-000 |
US $9.16 |
||
|
16
|
16
11314-78E00-000 SEAL,RR COVER OILRF; 1998-02-01~2000-03-01 |
11314-78E00-000 |
US $36.59 |
||
|
17
|
17
11229-78E00-000
O-RING,OIL CONTROL PLUG
RF; 1998-02-01~2000-03-01 |
11229-78E00-000 |
— | ||
|
18
|
18
16112-78E00-000
O ring,oil pump
RF; 1998-02-01~2000-03-01 |
16112-78E00-000 |
— | ||
| replacement | |||||
|
18
|
18
16112-78E01-000 O-RING,OIL PUMPRF; 1998-02-01~2000-03-01 |
16112-78E01-000 |
US $5 |
||
