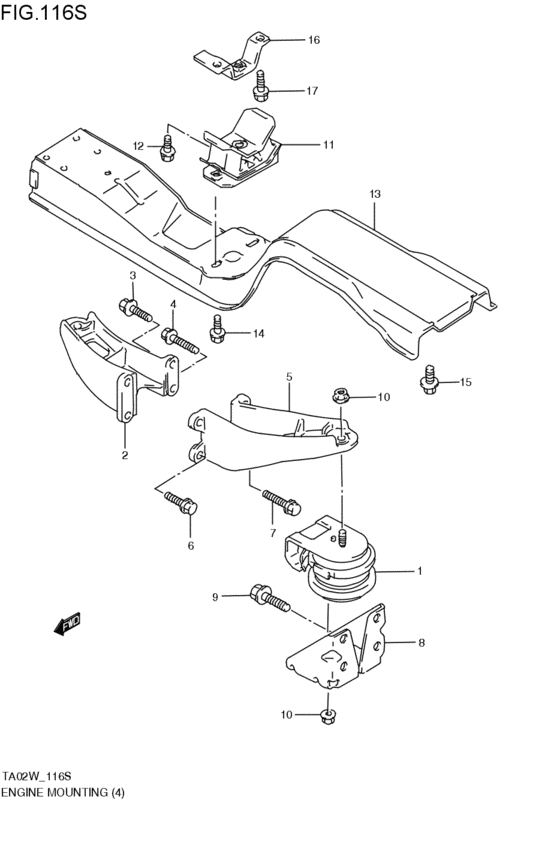

engine mounting (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-68D00-000 MOUNTING,ENG FRRF; 1998-02-01~2000-03-01 |
11610-68D00-000 |
US $157.50 |
||
|
2
|
2
11641-78E00-000
BRACKET,ENG FR MTG,R
RF; 1998-02-01~2000-03-01 |
11641-78E00-000 |
— | ||
|
3
|
3
01560-10303-000
ボルト
RF; 1998-02-01~2000-03-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
3
|
3
01560-1030A-000 BoltRF; 1998-02-01~2000-03-01 |
01560-1030A-000 |
US $1.12 |
||
|
4
|
4
01560-10453-000 BoltRF; 1998-02-01~2000-03-01 |
01560-10453-000 |
US $19.50 |
||
|
5
|
5
11651-78E00-000
BRACKET,ENG FR MTG,L
RF; 1998-02-01~2000-03-01 |
11651-78E00-000 |
— | ||
|
6
|
6
01560-10303-000
ボルト
RF; 1998-02-01~2000-03-01 |
01560-10303-000 |
— | ||
| replacement | |||||
|
6
|
6
01560-1030A-000 BoltRF; 1998-02-01~2000-03-01 |
01560-1030A-000 |
US $1.12 |
||
|
7
|
7
01560-10453-000 BoltRF; 1998-02-01~2000-03-01 |
01560-10453-000 |
US $19.50 |
||
|
8
|
8
11661-65D00-000 BRACKET,ENG FR MTG FRAME SIDERF; 1998-02-01~2000-03-01 |
11661-65D00-000 |
US $67.20 |
||
|
9
|
9
09112-12001-000 BOLT(12X35)RF; 1998-10-01~2000-03-01 |
09112-12001-000 |
US $22.40 |
||
|
9
|
9
01570-12353-000
ボルト
RF; 1998-02-01~1998-09-01 |
01570-12353-000 |
— | ||
| replacement | |||||
|
9
|
9
01570-1235A-000 BoltRF; 1998-02-01~1998-09-01 |
01570-1235A-000 |
US $21.70 |
||
|
10
|
10
08316-10103-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
11710-60A01-000 MOUNTING,ENG RRRF; 1998-02-01~2000-03-01 |
11710-60A01-000 |
US $217.60 |
||
|
12
|
12
01560-10203-000
Bolt
RF; 1998-02-01~2000-03-01 |
01560-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01560-1020A-000 BoltRF; 1998-02-01~2000-03-01 |
01560-1020A-000 |
US $17.30 |
||
|
13
|
13
11730-68D02-000 MEMBER,ENG RRRF; 1998-02-01~2000-03-01 |
11730-68D02-000 |
US $215.28 |
||
|
14
|
14
01560-10163-000
ボルト
RF; 1998-02-01~2000-03-01 |
01560-10163-000 |
— | ||
| replacement | |||||
|
14
|
14
01560-1016A-000 BoltRF; 1998-02-01~2000-03-01 |
01560-1016A-000 |
US $0.96 |
||
|
15
|
15
09112-10006-000 BOLT(10X25)RF; 1998-10-01~2000-03-01 |
09112-10006-000 |
US $1.38 |
||
|
15
|
15
01580-10253-000
ボルト
RF; 1998-02-01~1998-09-01 |
01580-10253-000 |
— | ||
| replacement | |||||
|
15
|
15
01580-1025A-000 BoltRF; 1998-02-01~1998-09-01 |
01580-1025A-000 |
US $19.50 |
||
|
16
|
16
11741-78E00-000 BRACKET,ENG RR MTGRF; 1998-02-01~2000-03-01 |
11741-78E00-000 |
US $12.95 |
||
|
17
|
17
01560-10253-000
ボルト
RF; 1998-02-01~2000-03-01 |
01560-10253-000 |
— | ||
| replacement | |||||
|
17
|
17
01560-1025A-000 BoltRF; 1998-02-01~2000-03-01 |
01560-1025A-000 |
US $1.07 |
||
