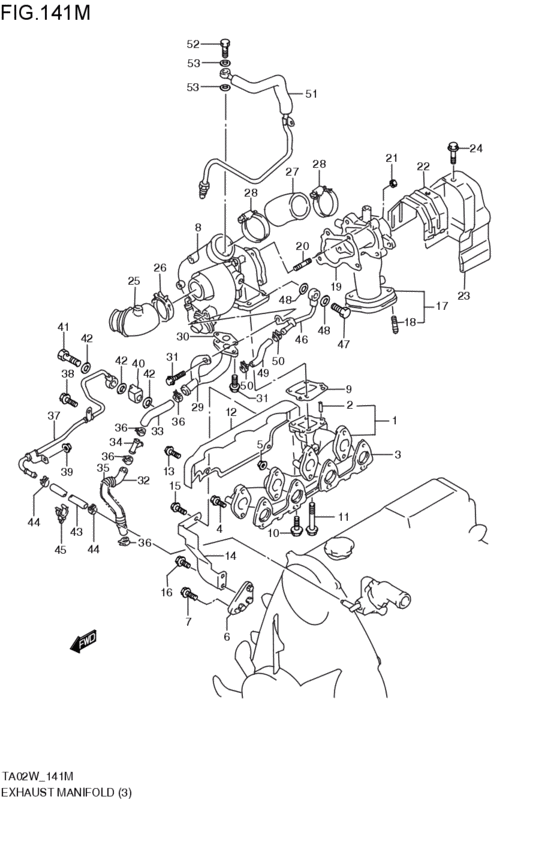

exhaust manifold (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14111-78E00-000
MANIFOLD,EXH
RF; 1998-02-01~2000-03-01 |
14111-78E00-000 |
— | ||
|
2
|
2
M4221-04120-000 PINRF; 1998-02-01~2000-03-01 |
M4221-04120-000 |
US $1.55 |
||
|
3
|
3
14141-78E00-000
GASKET,EXH MANF
RF; 1998-02-01~2000-03-01 |
14141-78E00-000 |
— | ||
|
4
|
4
14143-78E00-000
Bolt
RF; 1998-02-01~2000-03-01 |
14143-78E00-000 |
— | ||
|
5
|
5
M9159-08010-000
NUT
RF; 1998-02-01~2000-03-01 |
M9159-08010-000 |
— | ||
|
6
|
6
14271-78E01-000
STAY,EXH MANIFOLD
RF; 1998-02-01~2000-03-01 |
14271-78E01-000 |
— | ||
|
7
|
7
M9103-10250-000
BOLT,10X25
RF; 1998-02-01~2000-03-01 |
M9103-10250-000 |
— | ||
|
8
|
8
13900-78E10-000
CHARGER ASSY,TURBO
RF; 1998-02-01~2000-03-01 |
13900-78E10-000 |
— | ||
|
9
|
9
14183-78E00-000
GASKET,TURBO CHARGER
RF; 1998-02-01~2000-03-01 |
14183-78E00-000 |
— | ||
|
10
|
10
14144-78E00-000
Bolt
RF; 1998-02-01~2000-03-01 |
14144-78E00-000 |
— | ||
|
11
|
11
14142-78E00-000
BOLT,SUPER CHARGER
RF; 1998-02-01~2000-03-01 |
14142-78E00-000 |
— | ||
|
12
|
12
14120-78E10-000 INSULATORRF; 1998-02-01~2000-03-01 |
14120-78E10-000 |
US $126.96 |
||
|
13
|
13
M9103-06120-000 BOLT,6X12RF; 1998-02-01~2000-03-01 |
M9103-06120-000 |
US $1.18 |
||
|
14
|
14
14272-78E00-000
Stay,exhaust manifold
RF; 1998-02-01~2000-03-01 |
14272-78E00-000 |
— | ||
|
15
|
15
M9103-08200-000
BOLT,8X20
RF; 1998-02-01~2000-03-01 |
M9103-08200-000 |
— | ||
|
16
|
16
01550-08203-000
Bolt
RF; 1998-02-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0820B-000 BoltRF; 1998-02-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
16
|
16
01550-0820A-000 BOLTBolt, funnel bracket RF; 1998-02-01~2000-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
14115-78E10-000
PIPE,JOINT EXHAUST
RF; 1998-02-01~2000-03-01 |
14115-78E10-000 |
— | ||
|
18
|
18
14116-78E00-000 STUD BOLT,TURBO CHARGERRF; 1998-02-01~2000-03-01 |
14116-78E00-000 |
US $5.81 |
||
|
19
|
19
14182-78E00-000
GASKET,JOINT PIPE
RF; 1998-02-01~2000-03-01 |
14182-78E00-000 |
— | ||
|
20
|
20
14118-78E00-000
STUD BOLT,CYLINDER HEAD
RF; 1998-02-01~2000-03-01 |
14118-78E00-000 |
— | ||
|
21
|
21
14145-78E00-000
NUT
RF; 1998-02-01~2000-03-01 |
14145-78E00-000 |
— | ||
|
22
|
22
14134-78E01-000
INSULATOR,HEAT
RF; 1998-02-01~2000-03-01 |
14134-78E01-000 |
— | ||
|
23
|
23
14133-78E10-000
Insulator
RF; 1998-02-01~2000-03-01 |
14133-78E10-000 |
— | ||
|
24
|
24
M9103-06120-000 BOLT,6X12RF; 1998-02-01~2000-03-01 |
M9103-06120-000 |
US $1.18 |
||
|
25
|
25
13950-78E00-000 HOSE,AIRRF; 1998-02-01~2000-03-01 |
13950-78E00-000 |
US $76.91 |
||
|
26
|
26
13951-78E00-000
Clamp,water hose
RF; 1998-02-01~2000-03-01 |
13951-78E00-000 |
— | ||
|
27
|
27
13966-78E10-000 JOINT,RUBBERRF; 1998-02-01~2000-03-01 |
13966-78E10-000 |
US $50.05 |
||
|
28
|
28
13961-78E10-000
CLAMP HOSE A,I PIPE
RF; 1998-02-01~2000-03-01 |
13961-78E10-000 |
— | ||
|
29
|
29
13941-78E00-000
PIPE,OIL
RF; 1998-02-01~2000-03-01 |
13941-78E00-000 |
— | ||
|
30
|
30
13945-78E00-000 GASKET,OIL PIPERF; 1998-02-01~2000-03-01 |
13945-78E00-000 |
US $6.51 |
||
|
31
|
31
M9103-06160-000
BOLT,6X16
RF; 1998-02-01~2000-03-01 |
M9103-06160-000 |
— | ||
|
32
|
32
13946-78E01-000
HOSE,RETURN OIL
RF; 1998-02-01~2000-03-01 |
13946-78E01-000 |
— | ||
|
33
|
33
13975-78E01-000 HOSE,OILRF; 1998-02-01~2000-03-01 |
13975-78E01-000 |
US $18.58 |
||
|
34
|
34
13977-78E00-000
PIPE,OIL
RF; 1998-02-01~2000-03-01 |
13977-78E00-000 |
— | ||
|
35
|
35
M9344-22100-000
PROTECTOR
RF; 1998-02-01~2000-03-01 |
M9344-22100-000 |
— | ||
|
36
|
36
M9401-20001-000
CLIP
RF; 1998-02-01~2000-03-01 |
M9401-20001-000 |
— | ||
|
37
|
37
13982-78E10-000 PIPE,WATER IN TURBO CHARGERRF; 1998-02-01~2000-03-01 |
13982-78E10-000 |
US $93.84 |
||
|
38
|
38
01550-06163-000
Bolt
RF; 1998-02-01~2000-03-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-0616B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0616B-000 |
from US $0.76 |
||
|
38
|
38
01550-0616A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0616A-000 |
from US $0.76 |
||
|
39
|
39
08316-10063-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
39
|
39
08316-1006B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
40
|
40
13985-78E00-000
SPACER
RF; 1998-02-01~2000-03-01 |
13985-78E00-000 |
— | ||
|
41
|
41
13989-78E00-000
BOLT,CONNECTOR
RF; 1998-02-01~2000-03-01 |
13989-78E00-000 |
— | ||
|
42
|
42
M9168-14001-000
GASKET
RF; 1998-02-01~2000-03-01 |
M9168-14001-000 |
— | ||
|
43
|
43
13986-78E00-000 HOSE,WATER TURBO CHARGERRF; 1998-02-01~2000-03-01 |
13986-78E00-000 |
US $8.61 |
||
|
44
|
44
M9401-14000-000 CLIPRF; 1998-02-01~2000-03-01 |
M9401-14000-000 |
US $3.53 |
||
|
45
|
45
13988-78E00-000
CLAMP,HOSE
RF; 1998-02-01~2000-03-01 |
13988-78E00-000 |
— | ||
|
46
|
46
13981-78E00-000
PIPE,WATER OUT TURBO CHARGER
RF; 1998-02-01~2000-03-01 |
13981-78E00-000 |
— | ||
|
47
|
47
M9360-14000-000
BOLT,UNION
RF; 1998-02-01~2000-03-01 |
M9360-14000-000 |
— | ||
|
48
|
48
M9168-14001-000
GASKET
RF; 1998-02-01~2000-03-01 |
M9168-14001-000 |
— | ||
|
49
|
49
13987-78E01-000 HOSE,WATER TURBO CHARGERRF; 1998-02-01~2000-03-01 |
13987-78E01-000 |
US $9.09 |
||
|
50
|
50
M9401-14000-000 CLIPRF; 1998-02-01~2000-03-01 |
M9401-14000-000 |
US $3.53 |
||
|
51
|
51
13942-78E00-000 PIPE,OILRF; 1998-02-01~2000-03-01 |
13942-78E00-000 |
US $82.43 |
||
|
52
|
52
M9360-10000-000 BOLT,UNIONRF; 1998-02-01~2000-03-01 |
M9360-10000-000 |
US $7.07 |
||
|
53
|
53
M9168-10000-000 GASKETRF; 1998-02-01~2000-03-01 |
M9168-10000-000 |
US $1.99 |
||
