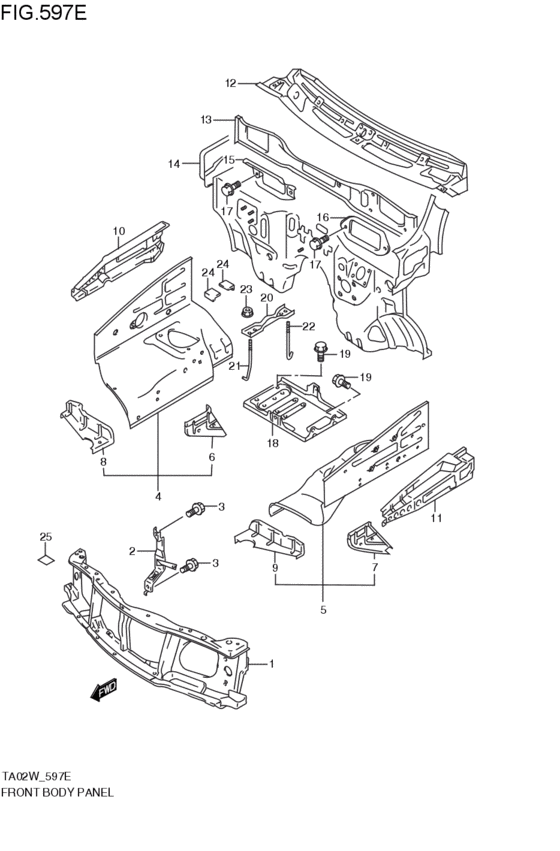

front body panel (1997-11-01~) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58100-65D10-000
パネル,フロント
1997-11-01~ |
58100-65D10-000 |
— | ||
| replacement | |||||
|
1
|
1
58100-65D12-000 PANEL,FRONT1997-11-01~ |
58100-65D12-000 |
US $408.32 |
||
|
2
|
2
58160-65D00-000
ステー,エアクリーナ
1997-11-01~ |
58160-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
58160-65D01-000 STAY,AIR CLEANER1997-11-01~ |
58160-65D01-000 |
US $22.63 |
||
|
3
|
3
02162-06163-000
Screw
1997-11-01~ |
02162-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0616B-000 SCREWBolt, adjust 1997-11-01~ |
02162-0616B-000 |
from US $0.80 |
||
|
4
|
4
58700-65D30-000
パネルアッシ,フロントホイールハウジング,ライト
1997-11-01~ |
58700-65D30-000 |
— | ||
| replacement | |||||
|
4
|
4
58700-65D60-000
PANEL ASSY,FR WHEEL HOUSING,R
1997-11-01~ |
58700-65D60-000 |
— | ||
|
5
|
5
58900-65D20-000
パネルアッシ,フロントホイールハウジング,レフト
1997-11-01~ |
58900-65D20-000 |
— | ||
| replacement | |||||
|
5
|
5
58900-65D61-000 PANEL ASSY,FR WHEEL HOUSING,L1997-11-01~ |
58900-65D61-000 |
US $320.16 |
||
|
6
|
6
58712-65D00-000 EXTENSION,FR WHL HOUSING,R1997-11-01~ |
58712-65D00-000 |
US $13.87 |
||
|
7
|
7
58912-65D00-000 EXTENSION,FR WHL HOUSING,L1997-11-01~ |
58912-65D00-000 |
US $13.87 |
||
|
8
|
8
58714-65D10-000 GUSSET,FR LWR MEMBER,R1997-11-01~ |
58714-65D10-000 |
US $23.74 |
||
|
9
|
9
58914-65D10-000
GUSSET,FR LWR MEMBER,L
1997-11-01~ |
58914-65D10-000 |
— | ||
|
10
|
10
58770-65D10-000
メンバ,フロントボディサイド,ライト
1997-11-01~ |
58770-65D10-000 |
— | ||
| replacement | |||||
|
10
|
10
58770-65D30-000 MEMBER,FR BODY SIDE,R1997-11-01~ |
58770-65D30-000 |
US $78.75 |
||
|
11
|
11
58971-65D10-000
メンバ,フロントボディサイド,レフト
1997-11-01~ |
58971-65D10-000 |
— | ||
| replacement | |||||
|
11
|
11
58970-65D00-000 MEMBER,FR BODY SIDE,L1997-11-01~ |
58970-65D00-000 |
US $78.75 |
||
|
12
|
12
59110-65D10-000
パネル,カウリングトップ
1997-11-01~ |
59110-65D10-000 |
— | ||
| replacement | |||||
|
12
|
12
59110-65D11-000 PANEL,COWL TOP1997-11-01~ |
59110-65D11-000 |
US $375.36 |
||
|
13
|
13
59211-65D10-000
パネル,カウリング,フロント
1997-11-01~ |
59211-65D10-000 |
— | ||
| replacements | |||||
|
13
|
13
09409-07320-000 CAP1997-11-01~ |
09409-07320-000 |
US $1.28 |
||
|
13
|
13
59211-65D13-000
PANEL,COWL FRONT
1997-11-01~ |
59211-65D13-000 |
— | ||
|
14
|
14
59300-65D31-000
パネル,ダッシュ
AT; 1997-11-01~ |
59300-65D31-000 |
— | ||
|
15
|
15
72421-65D10-000
リッド,ワイパリンクサービスホール,センタ
1997-11-01~ |
72421-65D10-000 |
— | ||
| replacement | |||||
|
15
|
15
72420-65D00-000 LID,WIPER LINK SVCE HOLE1997-11-01~ |
72420-65D00-000 |
US $22.08 |
||
|
16
|
16
72422-60A10-000
LID,WIPER LINK SVCE HOLE SIDE
1997-11-01~ |
72422-60A10-000 |
— | ||
|
17
|
17
02162-06123-000
Bolt (6x12)
1997-11-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
17
|
17
02162-0612B-000 SCREWBolt 1997-11-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
17
|
17
02162-0612A-000 SCREWBolt, bracket 1997-11-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
18
|
18
58781-77E02-000
ブラケット,バッテリ
1997-11-01~ |
58781-77E02-000 |
— | ||
| replacement | |||||
|
18
|
18
58781-77E03-000 BRACKET,BATTERY1997-11-01~ |
58781-77E03-000 |
US $79.04 |
||
|
19
|
19
02162-06123-000
Bolt (6x12)
1997-11-01~ |
02162-06123-000 |
— | ||
| replacements | |||||
|
19
|
19
02162-0612B-000 SCREWBolt 1997-11-01~ |
02162-0612B-000 |
from US $0.80 |
||
|
19
|
19
02162-0612A-000 SCREWBolt, bracket 1997-11-01~ |
02162-0612A-000 |
from US $0.80 |
||
|
20
|
20
72511-60A03-000 BAND,BATTERYJ20A,RF,H25A; 1997-11-01~ |
72511-60A03-000 |
US $12 |
||
|
21
|
21
72512-82002-000 BOLT,BATTERYJ20A,RF,H25A; 1997-11-01~ |
72512-82002-000 |
US $6.15 |
||
|
22
|
22
72512-82002-000 BOLT,BATTERY1997-11-01~ |
72512-82002-000 |
US $6.15 |
||
|
23
|
23
08361-15063-000
Nut
1997-11-01~ |
08361-15063-000 |
— | ||
| replacement | |||||
|
23
|
23
08361-1506A-000 NUT1997-11-01~ |
08361-1506A-000 |
from US $0.80 |
||
|
24
|
24
72514-60A00-000
パッド,バッテリバンド
J20A,RF,H25A; 1997-11-01~ |
72514-60A00-000 |
— | ||
| replacement | |||||
|
24
|
24
72514-60A01-000 PAD,BATTERY BANDJ20A,RF,H25A; 1997-11-01~ |
72514-60A01-000 |
US $2.72 |
||
|
25
|
25
72893-60A10-000 SEAL,RR GATE1997-11-01~ |
72893-60A10-000 |
US $1.60 |
||
