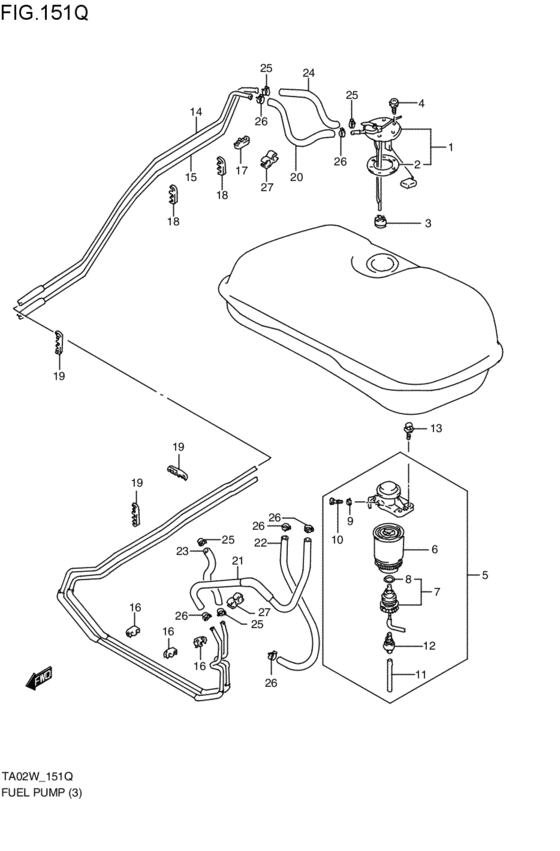

Fuel Pump (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15190-68D00-000 PIPE,FUEL TANK OUTLETRF; 1998-02-01~2000-03-01 |
15190-68D00-000 |
US $298.08 |
||
|
2
|
2
15111-65D00-000 GASKET,FUEL PUMPRF; 1998-02-01~2000-03-01 |
15111-65D00-000 |
US $13.84 |
||
|
3
|
3
15191-78E00-000
FILTER,FUEL IN TANK
RF; 1998-02-01~2000-03-01 |
15191-78E00-000 |
— | ||
|
4
|
4
02162-06103-000
Bolt
RF; 1998-02-01~2000-03-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
4
|
4
02162-0610A-000 SCREWRF; 1998-02-01~2000-03-01 |
02162-0610A-000 |
from US $0.64 |
||
|
5
|
5
15410-78E03-000
Filter,fuel
RF; 1998-02-01~2000-03-01 |
15410-78E03-000 |
— | ||
|
6
|
6
15411-78E10-000 FILTER,CARTRIDGERF; 1998-02-01~2000-03-01 |
15411-78E10-000 |
US $107.82 |
||
|
7
|
7
15412-78E10-000 SENSOR,FUEL FILTERRF; 1998-02-01~2000-03-01 |
15412-78E10-000 |
US $101.94 |
||
|
8
|
8
15413-78E10-000
O-RING
RF; 1998-02-01~2000-03-01 |
15413-78E10-000 |
— | ||
|
9
|
9
15414-78E00-000
Gasket
RF; 1998-02-01~2000-03-01 |
15414-78E00-000 |
— | ||
|
10
|
10
15415-78E00-000
プラグ,エアベントフィルタ
RF; 1998-02-01~2000-03-01 |
15415-78E00-000 |
— | ||
|
11
|
11
15416-78E11-000 HOSERF; 1998-02-01~2000-03-01 |
15416-78E11-000 |
US $5.63 |
||
|
12
|
12
15417-78E10-000
PLUG
RF; 1998-02-01~2000-03-01 |
15417-78E10-000 |
— | ||
|
13
|
13
01550-08253-000
Bolt, rear
RF; 1998-02-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-0825B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
13
|
13
01550-0825A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
14
|
14
15821-68D00-000
パイプ,フューエルフィード
RF; 1998-02-01~2000-03-01 |
15821-68D00-000 |
— | ||
| replacements | |||||
|
14
|
14
15821-68D01-000
PIPE,FUEL
RF; 1998-02-01~2000-03-01 |
15821-68D01-000 |
— | ||
|
14
|
14
15861-68D02-000 PIPE,FUEL RTNRF; 1998-02-01~2000-03-01 |
15861-68D02-000 |
US $67.34 |
||
|
15
|
15
15861-68D00-000
パイプ,フューエルリターン
RF; 1998-02-01~2000-03-01 |
15861-68D00-000 |
— | ||
|
16
|
16
15892-78E10-000 CLAMP,FUEL PIPERF; 1998-02-01~2000-03-01 |
15892-78E10-000 |
US $2.47 |
||
|
17
|
17
15893-56B00-000 CLAMP,FUEL PIPERF; 1998-02-01~2000-03-01 |
15893-56B00-000 |
US $2.43 |
||
|
18
|
18
15893-60A11-000 CLAMP,FUEL PIPERF; 1998-02-01~2000-03-01 |
15893-60A11-000 |
US $2.24 |
||
|
19
|
19
15895-60A11-000 CLAMP,FUEL PIPERF; 1998-02-01~2000-03-01 |
15895-60A11-000 |
US $2.56 |
||
|
20
|
20
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>380; RF; 1998-02-01~2000-03-01 |
09356-75147-600 |
US $51.68 |
||
|
21
|
21
15815-65D00-000 HOSE,FUEL FILTER INLETパイプツ-フィルタ,L:490>460,フイルタインレツト; RF; 1998-02-01~2000-03-01 |
15815-65D00-000 |
US $58.14 |
||
| replacement | |||||
|
21
|
21
15800-52810-000
HOSE SET,FUEL FILTER INLET
パイプツ-フィルタ,L:490>460,フイルタインレツト; RF; 1998-02-01~2000-03-01 |
15800-52810-000 |
— | ||
|
22
|
22
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>260; RF; 1998-02-01~2000-03-01 |
09356-75147-600 |
US $51.68 |
||
|
23
|
23
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>220; RF; 1998-02-01~2000-03-01 |
09356-55117-600 |
US $69.60 |
||
|
24
|
24
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>350; RF; 1998-02-01~2000-03-01 |
09356-55117-600 |
US $69.60 |
||
|
25
|
25
09401-10409-000 CLIPRF; 1998-02-01~2000-03-01 |
09401-10409-000 |
from US $1.12 |
||
|
26
|
26
09401-13418-000 CLIPRF; 1998-02-01~2000-03-01 |
09401-13418-000 |
US $27.20 |
||
|
27
|
27
09408-00174-000 CLAMPRF; 1998-02-01~2000-03-01 |
09408-00174-000 |
US $1.98 |
||
