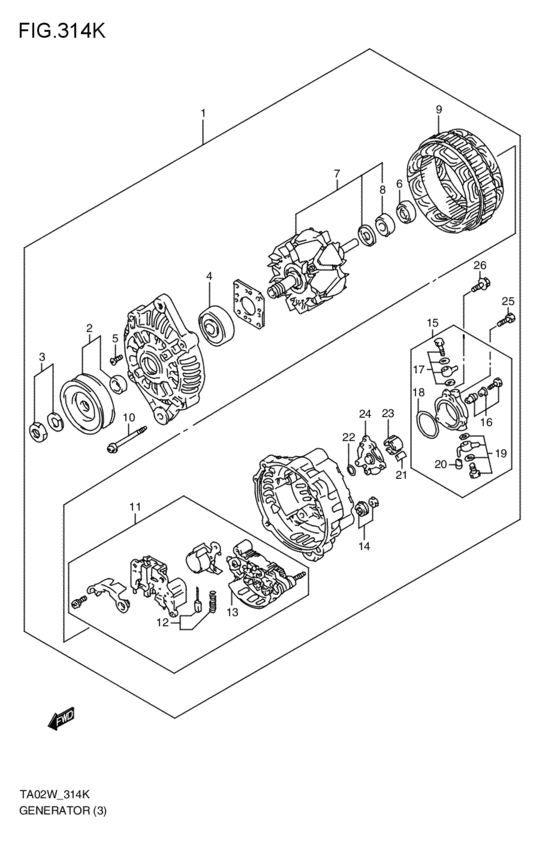

generator (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31400-77E90-000
GENERATOR ASSY
RF; 1998-02-01~2000-03-01 |
31400-77E90-000 |
— | ||
|
2
|
2
31171-77E90-000
PULLEY
RF; 1998-02-01~2000-03-01 |
31171-77E90-000 |
— | ||
|
3
|
3
31775-77E90-000
NUT,PULLEY
RF; 1998-02-01~2000-03-01 |
31775-77E90-000 |
— | ||
|
4
|
4
31582-77E90-000 BEARING ASSY,FRONTRF; 1998-02-01~2000-03-01 |
31582-77E90-000 |
US $27.97 |
||
|
5
|
5
31586-77E90-000
SCREW,RETAINER
RF; 1998-02-01~2000-03-01 |
31586-77E90-000 |
— | ||
|
6
|
6
31618-77E92-000
SEAL,OIL
RF; 1998-02-01~2000-03-01 |
31618-77E92-000 |
— | ||
|
7
|
7
31402-77E90-000
ROTOR ASSY
RF; 1998-02-01~2000-03-01 |
31402-77E90-000 |
— | ||
|
8
|
8
31612-77E90-000
BEARING ASSY,RR
RF; 1998-02-01~2000-03-01 |
31612-77E90-000 |
— | ||
|
9
|
9
31410-77E90-000
ステータアッシ,ジェネレータ
RF; 1998-02-01~2000-03-01 |
31410-77E90-000 |
— | ||
|
10
|
10
31651-77E90-000
BOLT,HOUSING
RF; 1998-02-01~2000-03-01 |
31651-77E90-000 |
— | ||
|
11
|
11
32500-77E92-000
REGULATOR ASSY,GENERATOR
RF; 1998-02-01~2000-03-01 |
32500-77E92-000 |
— | ||
|
12
|
12
31631-77E90-000
BRUSH SET,GENERATOR
RF; 1998-02-01~2000-03-01 |
31631-77E90-000 |
— | ||
|
13
|
13
31621-77E90-000
RECTIFIER,GENERATOR
RF; 1998-02-01~2000-03-01 |
31621-77E90-000 |
— | ||
|
14
|
14
31510-77E90-000
Terminal assy,generator
RF; 1998-02-01~2000-03-01 |
31510-77E90-000 |
— | ||
|
15
|
15
32906-77E90-000
Housing assy,generator pump
RF; 1998-02-01~2000-03-01 |
32906-77E90-000 |
— | ||
|
16
|
16
32907-77E90-000
コネクタ,ポンプ,インレット
RF; 1998-02-01~2000-03-01 |
32907-77E90-000 |
— | ||
|
17
|
17
32908-77E90-000
CONNECTOR,PUMP,OUTLET
RF; 1998-02-01~2000-03-01 |
32908-77E90-000 |
— | ||
|
18
|
18
32909-77E90-000
O-RING,PUMP HOUSING
RF; 1998-02-01~2000-03-01 |
32909-77E90-000 |
— | ||
|
19
|
19
32910-77E90-000
バルブセット,ジェネレータポンプ
RF; 1998-02-01~2000-03-01 |
32910-77E90-000 |
— | ||
|
20
|
20
32911-77E90-000
CAP,GENERATOR PUMP
RF; 1998-02-01~2000-03-01 |
32911-77E90-000 |
— | ||
|
21
|
21
32904-77E90-000
Vane,generator pump
RF; 1998-02-01~2000-03-01 |
32904-77E90-000 |
— | ||
|
22
|
22
32905-77E90-000
O-RING,GENERATOR PUMP
RF; 1998-02-01~2000-03-01 |
32905-77E90-000 |
— | ||
|
23
|
23
32902-77E90-000
Rotor assy,generator pump
RF; 1998-02-01~2000-03-01 |
32902-77E90-000 |
— | ||
|
24
|
24
32903-77E90-000
PLATE,GENERATOR PUMP
RF; 1998-02-01~2000-03-01 |
32903-77E90-000 |
— | ||
|
25
|
25
32901-77E92-000
ボルトセット
RF; 1998-02-01~2000-03-01 |
32901-77E92-000 |
— | ||
|
26
|
26
32912-77E92-000
ボルトセット
RF; 1998-02-01~2000-03-01 |
32912-77E92-000 |
— |
