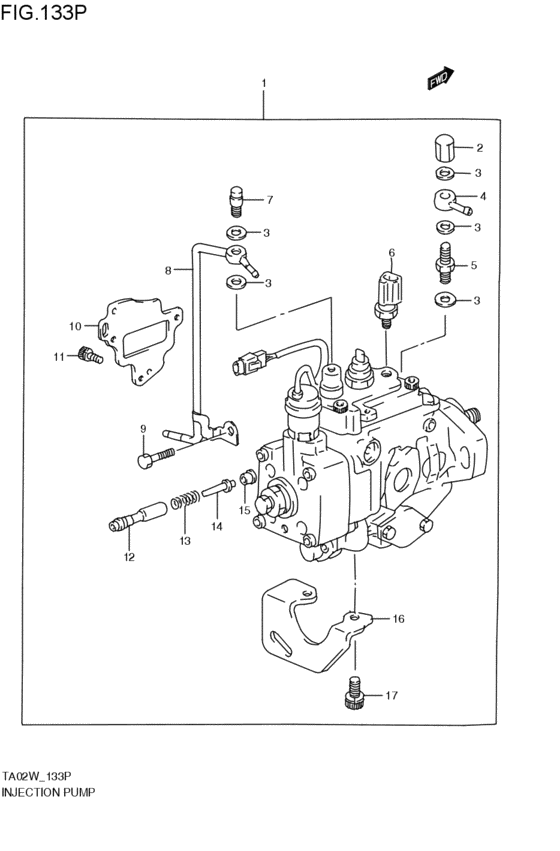

injection pump (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15200-78E10-000
PUMP,INJECTION
RF; 1998-02-01~2000-03-01 |
15200-78E10-000 |
— | ||
|
2
|
2
15263-78E10-000
NUT
RF; 1998-02-01~2000-03-01 |
15263-78E10-000 |
— | ||
|
3
|
3
15262-78E10-000
GASKET
RF; 1998-02-01~2000-03-01 |
15262-78E10-000 |
— | ||
|
4
|
4
15260-78E10-000
EYE
RF; 1998-02-01~2000-03-01 |
15260-78E10-000 |
— | ||
|
5
|
5
15264-78E10-000
Bolt
RF; 1998-02-01~2000-03-01 |
15264-78E10-000 |
— | ||
|
6
|
6
15280-78E10-000
Sensor,water Temp
RF; 1998-02-01~2000-03-01 |
15280-78E10-000 |
— | ||
|
7
|
7
15252-78E10-000
VALVE,OVER FLOW
RF; 1998-02-01~2000-03-01 |
15252-78E10-000 |
— | ||
|
8
|
8
15250-78E10-000
アイ,インジェクションポンプ
RF; 1998-02-01~2000-03-01 |
15250-78E10-000 |
— | ||
|
9
|
9
15255-78E10-000
Bolt
RF; 1998-02-01~2000-03-01 |
15255-78E10-000 |
— | ||
|
10
|
10
15273-78E10-000
BRACKET
RF; 1998-02-01~2000-03-01 |
15273-78E10-000 |
— | ||
|
11
|
11
15274-78E10-000
Bolt
RF; 1998-02-01~2000-03-01 |
15274-78E10-000 |
— | ||
|
12
|
12
15226-78E10-000
ホルダ,デリバリバルブ
RF; 1998-02-01~2000-03-01 |
15226-78E10-000 |
— | ||
|
13
|
13
15224-78E10-000
SPRING,DELIVERY VALVE
RF; 1998-02-01~2000-03-01 |
15224-78E10-000 |
— | ||
|
14
|
14
15223-78E10-000
バルブ,デリバリ
RF; 1998-02-01~2000-03-01 |
15223-78E10-000 |
— | ||
|
15
|
15
15222-78E10-000
GASKET
RF; 1998-02-01~2000-03-01 |
15222-78E10-000 |
— | ||
|
16
|
16
15271-78E10-000
BRACKET
RF; 1998-02-01~2000-03-01 |
15271-78E10-000 |
— | ||
|
17
|
17
15272-78E10-000
Bolt
RF; 1998-02-01~2000-03-01 |
15272-78E10-000 |
— |
