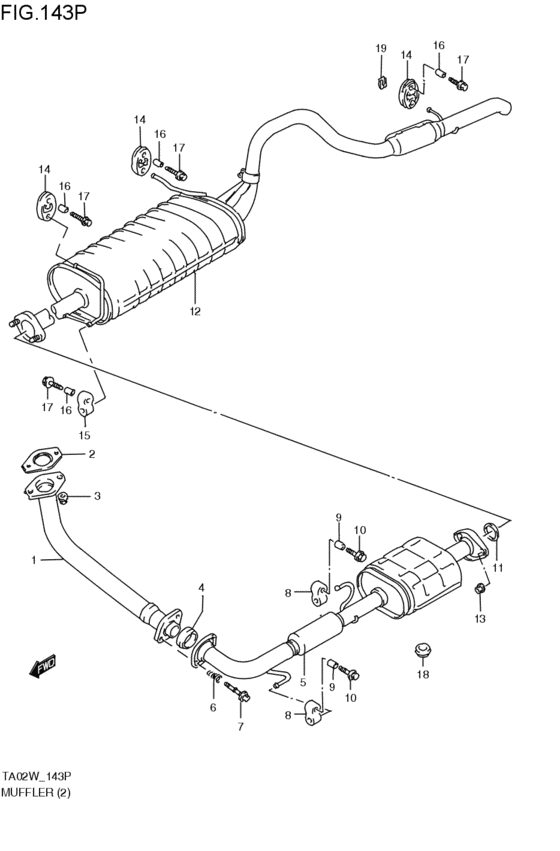

muffler (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-78E21-000
PIPE,EXH NO.1
RF; 1998-02-01~2000-03-01 |
14190-78E21-000 |
— | ||
|
2
|
2
14181-78E10-000 GASKET,EXH PIPERF; 1998-02-01~2000-03-01 |
14181-78E10-000 |
US $7.80 |
||
|
3
|
3
14211-78E00-000 NUT,EXH PIPERF; 1998-02-01~2000-03-01 |
14211-78E00-000 |
US $7.99 |
||
|
4
|
4
14183-60A11-000
リング,シール
RF; 1998-02-01~2000-03-01 |
14183-60A11-000 |
— | ||
| replacement | |||||
|
4
|
4
14183-76A00-000 RING,SEAL EXH PIPERF; 1998-02-01~2000-03-01 |
14183-76A00-000 |
from US $11.57 |
||
|
5
|
5
14250-68D00-000
パイプ,エキゾースト,NO.2
RF; 1998-02-01~2000-03-01 |
14250-68D00-000 |
— | ||
|
6
|
6
14492-82600-000
Spring
CHKK; RF; 1998-02-01~2000-03-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
6
|
6
14492-67D00-000 SPRING,EXH PIPECHKK; RF; 1998-02-01~2000-03-01 |
14492-67D00-000 |
from US $5.69 |
||
|
7
|
7
09119-10041-000 BOLT(10X65)RF; 1998-02-01~2000-03-01 |
09119-10041-000 |
from US $5.92 |
||
|
8
|
8
14281-71C00-000
マウンチング,マフラ
RF; 1998-02-01~2000-03-01 |
14281-71C00-000 |
— | ||
| replacement | |||||
|
8
|
8
14281-71C01-000 MOUNTING,MUFRF; 1998-02-01~2000-03-01 |
14281-71C01-000 |
from US $7.49 |
||
|
9
|
9
09180-08057-000
Spacer
RF; 1998-02-01~2000-03-01 |
09180-08057-000 |
— | ||
|
10
|
10
01550-08353-000
Bolt, rear
RF; 1998-02-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0835B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
10
|
10
01550-0835A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
11
|
11
14182-58B10-000 GASKET,MUFFLERRF; 1998-02-01~2000-03-01 |
14182-58B10-000 |
from US $4.79 |
||
|
12
|
12
14300-68D00-000
マフラ,エキゾースト
RF; 1998-02-01~2000-03-01 |
14300-68D00-000 |
— | ||
| replacements | |||||
|
12
|
12
09139-08019-000 SCREW(8X35)RF; 1998-02-01~2000-03-01 |
09139-08019-000 |
US $23.60 |
||
|
12
|
12
14300-68D0V-000 MUFFLERRF; 1998-02-01~2000-03-01 |
14300-68D0V-000 |
US $524.48 |
||
|
12
|
12
09180-08227-000 SPACER(8.2X12.5X23.5)RF; 1998-02-01~2000-03-01 |
09180-08227-000 |
from US $1.92 |
||
|
12
|
12
09180-08057-000
Spacer
RF; 1998-02-01~2000-03-01 |
09180-08057-000 |
— | ||
|
13
|
13
09159-10049-000
Nut
RF; 1998-02-01~2000-03-01 |
09159-10049-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-10102-000 NUTRF; 1998-02-01~2000-03-01 |
09159-10102-000 |
from US $0.97 |
||
|
14
|
14
14281-58B00-000
マウンチング,マフラ
RF; 1998-02-01~2000-03-01 |
14281-58B00-000 |
— | ||
| replacement | |||||
|
14
|
14
14281-58B01-000 MOUNTING,MUFRF; 1998-02-01~2000-03-01 |
14281-58B01-000 |
US $22.40 |
||
|
15
|
15
14281-71C00-000
マウンチング,マフラ
RF; 1998-02-01~2000-03-01 |
14281-71C00-000 |
— | ||
| replacement | |||||
|
15
|
15
14281-71C01-000 MOUNTING,MUFRF; 1998-02-01~2000-03-01 |
14281-71C01-000 |
from US $7.49 |
||
|
16
|
16
09180-08057-000
Spacer
RF; 1998-02-01~2000-03-01 |
09180-08057-000 |
— | ||
|
17
|
17
01550-08353-000
Bolt, rear
RF; 1998-02-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0835B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
17
|
17
01550-0835A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
18
|
18
09250-25007-000 CAP(OD:25.0)RF; 1998-02-01~2000-03-01 |
09250-25007-000 |
from US $0.97 |
||
|
19
|
19
14381-65D00-000 CAP,MUFFLER STAYRF; 1998-08-01~2000-03-01 |
14381-65D00-000 |
US $2.80 |
||
