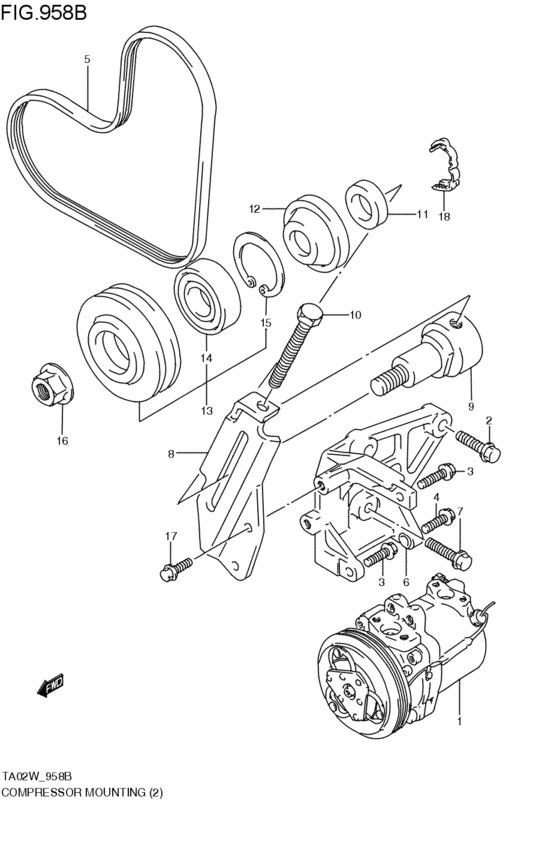

コンプレッサマウンチング (RF; 1998-02-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95200-70C20-000 COMPRESSOR ASSYRF; 1998-02-01~2000-03-01 |
95200-70C20-000 |
US $1,462 |
||
|
2
|
2
01550-10353-000
Bolt
RF; 1998-02-01~2000-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-1035A-000 BOLTBolt, fr fork upper RF; 1998-02-01~2000-03-01 |
01550-1035A-000 |
from US $5.68 |
||
|
3
|
3
01550-08253-000
Bolt, rear
RF; 1998-02-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-08353-000
Bolt, rear
RF; 1998-02-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLTRF; 1998-02-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
95141-77E81-000 BELT,COMPRESSOR 850RF; 1998-02-01~2000-03-01 |
95141-77E81-000 |
US $30.18 |
||
|
6
|
6
95110-77E80-000
BRACKET,CPRSR
RF; 1998-02-01~2000-03-01 |
95110-77E80-000 |
— | ||
|
7
|
7
01550-10353-000
Bolt
RF; 1998-02-01~2000-03-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-1035A-000 BOLTBolt, fr fork upper RF; 1998-02-01~2000-03-01 |
01550-1035A-000 |
from US $5.68 |
||
|
8
|
8
95131-77E80-000
BRACKET,IDLE PULLEY
RF; 1998-02-01~2000-03-01 |
95131-77E80-000 |
— | ||
|
9
|
9
95135-77E80-000 SHAFT,PULLEYRF; 1998-02-01~2000-03-01 |
95135-77E80-000 |
US $16.96 |
||
|
10
|
10
95136-77E80-000
BOLT,ADJUST
RF; 1998-02-01~2000-03-01 |
95136-77E80-000 |
— | ||
|
11
|
11
95134-77E80-000 SPACERRF; 1998-02-01~2000-03-01 |
95134-77E80-000 |
US $5.41 |
||
|
12
|
12
95133-77E80-000
COVER,DUST
RF; 1998-02-01~2000-03-01 |
95133-77E80-000 |
— | ||
|
13
|
13
95132-77E81-000
プーリ,アイドラ
RF; 1998-02-01~2000-03-01 |
95132-77E81-000 |
— | ||
| replacement | |||||
|
13
|
13
95132-77E82-000
PULLEY,IDLER
RF; 1998-02-01~2000-03-01 |
95132-77E82-000 |
— | ||
|
14
|
14
95137-77E81-000
BEARING
RF; 1998-02-01~2000-03-01 |
95137-77E81-000 |
— | ||
|
15
|
15
95138-77E80-000 CIRCLIPRF; 1998-02-01~2000-03-01 |
95138-77E80-000 |
US $2.54 |
||
|
16
|
16
08316-10103-000
Nut
RF; 1998-02-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1010B-000 NUTRF; 1998-02-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
17
|
17
01550-08203-000
Bolt
RF; 1998-02-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0820B-000 BoltRF; 1998-02-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
17
|
17
01550-0820A-000 BOLTBolt, funnel bracket RF; 1998-02-01~2000-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
18
|
18
09408-00184-000 CLAMPRF; 1998-02-01~2000-03-01 |
09408-00184-000 |
from US $4.64 |
||
