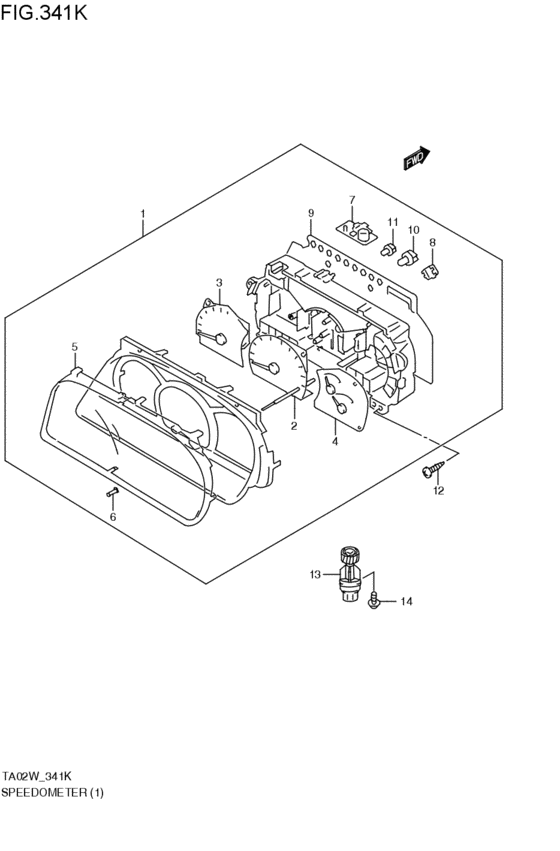

speed meter (1997-11-01~1998-08-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- RF
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34100-65DF0-000
スピードメータアッシ,コンビネーション
RF:ABS; 1998-02-01~1998-08-01 |
34100-65DF0-000 |
— | ||
|
2
|
2
34120-65DC0-000
ボディアッシ,スピードメータ
RF; 1998-02-01~1998-08-01 |
34120-65DC0-000 |
— | ||
|
3
|
3
34220-65DC0-000
BODY ASSY,TACHOMETER
RF; 1998-02-01~1998-08-01 |
34220-65DC0-000 |
— | ||
|
4
|
4
34320-65DD0-000
ボディアッシ,フューエル/テンパレチャメータ
AT:RF; 1998-02-01~1998-08-01 |
34320-65DD0-000 |
— | ||
| replacement | |||||
|
4
|
4
34320-65DD2-000
ボディアッシ,フューエル/テンパレチャメータ
AT:RF; 1998-02-01~1998-08-01 |
34320-65DD2-000 |
— | ||
|
5
|
5
34112-65D00-000 GLASS,METER WINDOW1997-11-01~1998-08-01 |
34112-65D00-000 |
US $40.48 |
||
|
6
|
6
34145-65D00-000 COVER,TRIP KNOB1997-11-01~1998-08-01 |
34145-65D00-000 |
US $7.68 |
||
|
7
|
7
34191-65D00-000 BUZZER ASSY,WARNING1997-11-01~1998-08-01 |
34191-65D00-000 |
US $60.35 |
||
|
9
|
9
34152-65DF0-000
プレート,プリンテッド
AT:RF:ABS; 1998-02-01~1998-08-01 |
34152-65DF0-000 |
— | ||
|
10
|
10
34171-70G00-000 BULB,14V 3.4W G201997-11-01~1998-08-01 |
34171-70G00-000 |
US $6.59 |
||
|
11
|
11
34171-70G10-000 BULB,14V 1.4W1997-11-01~1998-08-01 |
34171-70G10-000 |
US $2.59 |
||
|
12
|
12
03541-05163-000
Screw
1997-11-01~1998-08-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW1997-11-01~1998-08-01 |
03541-0516A-000 |
from US $0.76 |
||
|
13
|
13
34910-65D20-000
Sensor assy,speed
RF; 1998-02-01~1998-08-01 |
34910-65D20-000 |
— | ||
| replacement | |||||
|
13
|
13
34910-65D21-000 SENSOR ASSY,SPEEDRF; 1998-02-01~1998-08-01 |
34910-65D21-000 |
US $151.62 |
||
|
14
|
14
01550-06163-000
Bolt
1997-11-01~1998-08-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0616B-000 BOLT1997-11-01~1998-08-01 |
01550-0616B-000 |
from US $0.76 |
||
|
14
|
14
01550-0616A-000 BOLT1997-11-01~1998-08-01 |
01550-0616A-000 |
from US $0.76 |
||
