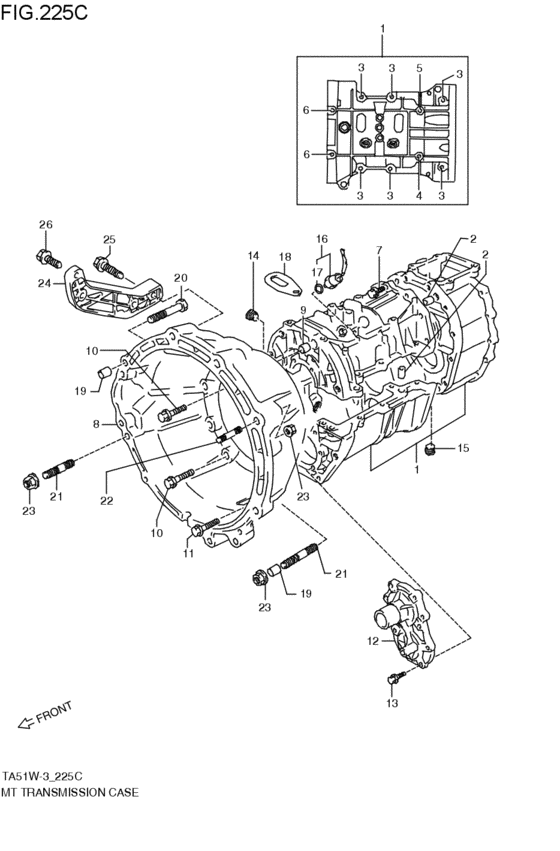

mt - transmission case (5MT; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 5MT
- Number of doors
- 5DR
- grade
- SB3
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-60A81-000
CASE ASSY,T/M
5MT; 1996-10-01~1997-08-01 |
24700-60A81-000 |
— | ||
|
2
|
2
04211-13149-000 PIN5MT; 1996-10-01~1997-08-01 |
04211-13149-000 |
from US $1.28 |
||
|
3
|
3
01550-08303-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0830B-000 Bolt5MT; 1996-10-01~1997-08-01 |
01550-0830B-000 |
from US $1.06 |
||
|
3
|
3
01550-0830A-000 BOLTBolt, mount oil seal cover 5MT; 1996-10-01~1997-08-01 |
01550-0830A-000 |
from US $1.12 |
||
|
4
|
4
01550-08953-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-08953-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0895B-000 BoltBolt, crankcase (8x95) 5MT; 1996-10-01~1997-08-01 |
01550-0895B-000 |
US $24.70 |
||
|
4
|
4
01550-0895A-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-0895A-000 |
from US $1.82 |
||
|
5
|
5
09103-08134-000 BOLT(8X110)Bolt, collector no.1 5MT; 1996-10-01~1997-08-01 |
09103-08134-000 |
from US $1.82 |
||
|
6
|
6
09103-08131-000 BOLT(8X120)5MT; 1996-10-01~1997-08-01 |
09103-08131-000 |
US $2.24 |
||
|
7
|
7
01550-08303-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0830B-000 Bolt5MT; 1996-10-01~1997-08-01 |
01550-0830B-000 |
from US $1.06 |
||
|
7
|
7
01550-0830A-000 BOLTBolt, mount oil seal cover 5MT; 1996-10-01~1997-08-01 |
01550-0830A-000 |
from US $1.12 |
||
|
8
|
8
21341-85F40-000
ハウジング,クラッチ
5MT; 1996-10-01~1997-08-01 |
21341-85F40-000 |
— | ||
|
9
|
9
04211-13149-000 PIN5MT; 1996-10-01~1997-08-01 |
04211-13149-000 |
from US $1.28 |
||
|
10
|
10
01550-10403-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-1040B-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1040B-000 |
from US $3.74 |
||
|
10
|
10
01550-1040A-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1040A-000 |
from US $1.12 |
||
|
11
|
11
01550-10503-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-10503-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1050B-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1050B-000 |
US $1.22 |
||
|
12
|
12
24741-85F40-000
RETAINER,INPUT SFT BRG
5MT; 1996-10-01~1997-08-01 |
24741-85F40-000 |
— | ||
|
13
|
13
09103-08153-000 BOLT(8X30)Bolt (8x30) 5MT; 1996-10-01~1997-08-01 |
09103-08153-000 |
US $11.80 |
||
|
14
|
14
09246-16010-000 PLUGマグネットツキ; 5MT; 1996-10-01~1997-08-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
14
|
14
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; 5MT; 1996-10-01~1997-08-01 |
09246-16021-000 |
from US $4.01 |
||
|
15
|
15
09246-16010-000 PLUGマグネットツキ; 5MT; 1996-10-01~1997-08-01 |
09246-16010-000 |
US $4.46 |
||
| replacement | |||||
|
15
|
15
09246-16021-000 Plug,t/m Oil Drainマグネットツキ; 5MT; 1996-10-01~1997-08-01 |
09246-16021-000 |
from US $4.01 |
||
|
16
|
16
37610-83001-000 SWITCH ASSY,BACK UP LAMP5MT; 1996-10-01~1997-08-01 |
37610-83001-000 |
from US $24.19 |
||
|
17
|
17
09280-11002-000 O RING(D:1.9,ID:11.4)5MT; 1996-10-01~1997-08-01 |
09280-11002-000 |
from US $0.88 |
||
|
18
|
18
11851-62B00-000 HOOK5MT; 1996-10-01~1997-08-01 |
11851-62B00-000 |
US $5.02 |
||
|
19
|
19
09206-15001-000 PIN(12.4X15X17)5MT; 1996-10-01~1997-08-01 |
09206-15001-000 |
US $1.92 |
||
|
20
|
20
01550-12753-000
ボルト
5MT; 1996-10-01~1997-08-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-1275A-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1275A-000 |
US $1.92 |
||
|
21
|
21
09108-12007-000
Bolt,stud
5MT; 1996-10-01~1997-08-01 |
09108-12007-000 |
— | ||
| replacement | |||||
|
21
|
21
09108-12012-000 BOLT,STUD5MT; 1996-10-01~1997-08-01 |
09108-12012-000 |
from US $2.50 |
||
|
22
|
22
09108-12006-000 BOLT,STUD5MT; 1996-10-01~1997-08-01 |
09108-12006-000 |
US $28 |
||
|
23
|
23
08316-10123-000
Nut
5MT; 1996-10-01~1997-08-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1012A-000 NUT5MT; 1996-10-01~1997-08-01 |
08316-1012A-000 |
from US $0.96 |
||
|
24
|
24
24791-77E02-000
STIFFENER
5MT; 1996-10-01~1997-08-01 |
24791-77E02-000 |
— | ||
|
25
|
25
01550-10403-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-10403-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1040B-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1040B-000 |
from US $3.74 |
||
|
25
|
25
01550-1040A-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1040A-000 |
from US $1.12 |
||
|
26
|
26
01550-10303-000
Bolt
5MT; 1996-10-01~1997-08-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
26
|
26
01550-1030B-000 BOLTBolt, axle housing rear 5MT; 1996-10-01~1997-08-01 |
01550-1030B-000 |
from US $5.07 |
||
|
26
|
26
01550-1030A-000 BOLT5MT; 1996-10-01~1997-08-01 |
01550-1030A-000 |
from US $1.12 |
||
