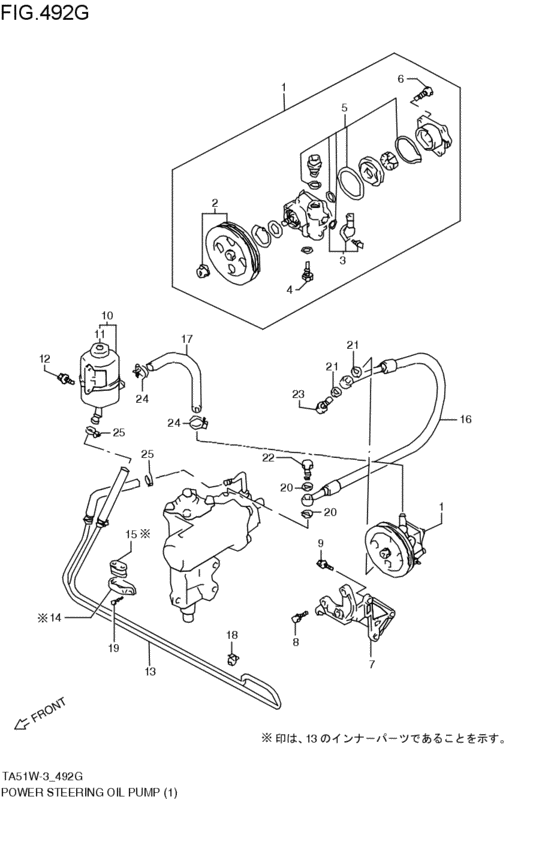

power steering oil pump (J20A; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 5MT
- Number of doors
- 5DR
- grade
- SB3
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-77E40-000
PUMP ASSY,POWER STEERING
J20A; 1996-10-01~1997-08-01 |
49100-77E40-000 |
— | ||
|
2
|
2
49111-77E40-000
プーリセット
J20A; 1996-10-01~1997-08-01 |
49111-77E40-000 |
— | ||
| replacement | |||||
|
2
|
2
49111-77E60-000
PULLEY SET
J20A; 1996-10-01~1997-08-01 |
49111-77E60-000 |
— | ||
|
3
|
3
49112-77E40-000
ジョイントセット,インレット
J20A; 1996-10-01~1997-08-01 |
49112-77E40-000 |
— | ||
| replacement | |||||
|
3
|
3
49112-77E60-000
JOINT SET,INLET
J20A; 1996-10-01~1997-08-01 |
49112-77E60-000 |
— | ||
|
4
|
4
49113-77E40-000
スイッチ,プレッシャ
J20A; 1996-10-01~1997-08-01 |
49113-77E40-000 |
— | ||
| replacement | |||||
|
4
|
4
49113-77E00-000
SWITCH,PRESSURE
J20A; 1996-10-01~1997-08-01 |
49113-77E00-000 |
— | ||
|
5
|
5
49114-77E40-000
シールセット
J20A; 1996-10-01~1997-08-01 |
49114-77E40-000 |
— | ||
| replacement | |||||
|
5
|
5
49114-77E00-000
SEAL SET
J20A; 1996-10-01~1997-08-01 |
49114-77E00-000 |
— | ||
|
6
|
6
49115-77E40-000
ボルトセット
J20A; 1996-10-01~1997-08-01 |
49115-77E40-000 |
— | ||
| replacement | |||||
|
6
|
6
49115-77E00-000
BOLT SET
J20A; 1996-10-01~1997-08-01 |
49115-77E00-000 |
— | ||
|
7
|
7
49120-77E10-000
BRACKET,POWER STRG PUMP
J20A; 1996-10-01~1997-08-01 |
49120-77E10-000 |
— | ||
|
8
|
8
01550-08253-000
Bolt, rear
J20A; 1996-10-01~1997-08-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
01550-10253-000
Bolt
J20A; 1996-10-01~1997-08-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-1025B-000 BoltBolt, rr swgarm bracket, l J20A; 1996-10-01~1997-08-01 |
01550-1025B-000 |
from US $5.59 |
||
|
9
|
9
01550-1025A-000 BOLTBolt, drive gear J20A; 1996-10-01~1997-08-01 |
01550-1025A-000 |
from US $1.06 |
||
|
10
|
10
49140-77E60-000
TANK ASSY,POWER STEERING OIL
J20A; 1996-10-01~1997-08-01 |
49140-77E60-000 |
— | ||
|
11
|
11
49141-60A00-000 CAP,TANKJ20A; 1996-10-01~1997-08-01 |
49141-60A00-000 |
US $47.20 |
||
|
12
|
12
02162-06123-000
Bolt (6x12)
J20A; 1996-10-01~1997-08-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
12
|
12
02162-0612B-000 SCREWBolt J20A; 1996-10-01~1997-08-01 |
02162-0612B-000 |
from US $0.80 |
||
|
12
|
12
02162-0612A-000 SCREWBolt, bracket J20A; 1996-10-01~1997-08-01 |
02162-0612A-000 |
from US $0.80 |
||
|
13
|
13
49200-77E20-000 HOSE ASSY,RETURNJ20A; 1996-10-01~1997-08-01 |
49200-77E20-000 |
US $115.92 |
||
|
14
|
14
49223-77E00-000 BRACKET,PIPE,RJ20A; 1996-10-01~1997-08-01 |
49223-77E00-000 |
US $5.26 |
||
|
15
|
15
49227-56B00-000 BUSH,PIPEJ20A; 1996-10-01~1997-08-01 |
49227-56B00-000 |
US $4.97 |
||
|
16
|
16
49230-77E10-000
HOSE,PRESSURE
J20A; 1996-10-01~1997-08-01 |
49230-77E10-000 |
— | ||
|
17
|
17
49214-77E60-000
HOSE,SUCTION
J20A; 1996-10-01~1997-08-01 |
49214-77E60-000 |
— | ||
|
18
|
18
49225-56B00-000
CLAMP,PIPE
J20A; 1996-10-01~1997-08-01 |
49225-56B00-000 |
— | ||
|
19
|
19
01550-08203-000
Bolt
J20A; 1996-10-01~1997-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0820B-000 BoltJ20A; 1996-10-01~1997-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
19
|
19
01550-0820A-000 BOLTBolt, funnel bracket J20A; 1996-10-01~1997-08-01 |
01550-0820A-000 |
from US $0.96 |
||
|
20
|
20
09168-14009-000
Washer
J20A; 1996-10-01~1997-08-01 |
09168-14009-000 |
— | ||
| replacements | |||||
|
20
|
20
09168-14014-000 GASKET(14X18X1.5)J20A; 1996-10-01~1997-08-01 |
09168-14014-000 |
from US $0.92 |
||
|
20
|
20
09168-14011-000 GASKET(14X20X1.5)J20A; 1996-10-01~1997-08-01 |
09168-14011-000 |
from US $0.72 |
||
|
21
|
21
09168-16002-000 GASKET(16X22X2)J20A; 1996-10-01~1997-08-01 |
09168-16002-000 |
from US $0.90 |
||
|
22
|
22
09360-14011-000 UNIONJ20A; 1996-10-01~1997-08-01 |
09360-14011-000 |
US $13.44 |
||
|
23
|
23
09360-16003-000 UNIONJ20A; 1996-10-01~1997-08-01 |
09360-16003-000 |
from US $5.94 |
||
|
24
|
24
09400-24301-000 CLAMPJ20A; 1996-10-01~1997-08-01 |
09400-24301-000 |
US $1.92 |
||
|
25
|
25
09400-18302-000 CLAMPJ20A; 1996-10-01~1997-08-01 |
09400-18302-000 |
US $23.20 |
||
