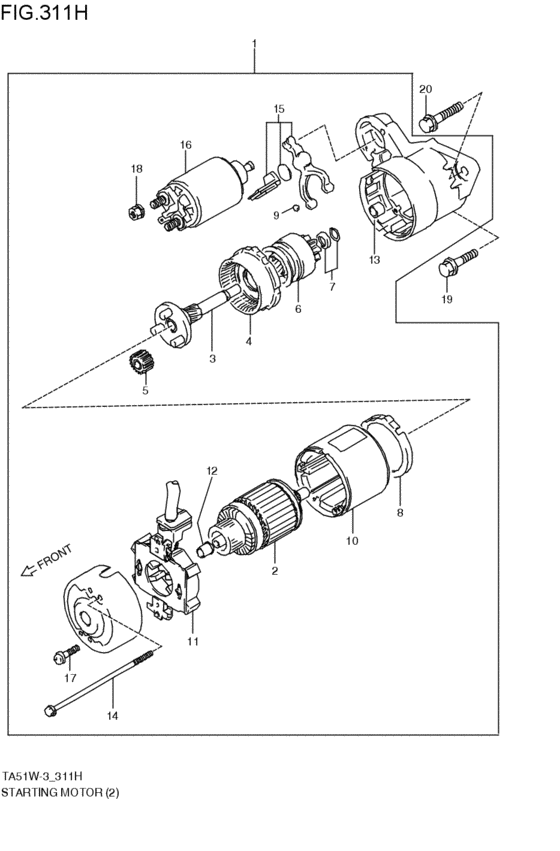

starting motor (J20A:4AT; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 1AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-60A12-000
モータアッシ,スターティング
J20A:4AT; 1996-10-01~1997-08-01 |
31100-60A12-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-60A12-REM
Starting motor
J20A:4AT; 1996-10-01~1997-08-01 |
31100-60A12-REM |
— | ||
|
1
|
1
31100-60A24-000 MOTOR ASSY,STARTINGJ20A:4AT; 1996-10-01~1997-08-01 |
31100-60A24-000 |
US $668.80 |
||
|
2
|
2
31311-64B11-000
ARMATURE
J20A:4AT; 1996-10-01~1997-08-01 |
31311-64B11-000 |
— | ||
|
3
|
3
31341-60A10-000
SHAFT,GEAR
J20A:4AT; 1996-10-01~1997-08-01 |
31341-60A10-000 |
— | ||
|
4
|
4
31343-50F40-000
GEAR,INTERNAL
J20A:4AT; 1996-10-01~1997-08-01 |
31343-50F40-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTYJ20A:4AT; 1996-10-01~1997-08-01 |
31344-86030-000 |
US $27.60 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNINGJ20A:4AT; 1996-10-01~1997-08-01 |
31320-86030-000 |
US $111.50 |
||
|
7
|
7
31313-86030-000
STOPPER SET
J20A:4AT; 1996-10-01~1997-08-01 |
31313-86030-000 |
— | ||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper SetJ20A:4AT; 1996-10-01~1997-08-01 |
31314-86030-000 |
US $12.80 |
||
|
8
|
8
31345-86030-000
Packing
J20A:4AT; 1996-10-01~1997-08-01 |
31345-86030-000 |
— | ||
| replacement | |||||
|
8
|
8
31345-60A00-000 PACKINGJ20A:4AT; 1996-10-01~1997-08-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALLJ20A:4AT; 1996-10-01~1997-08-01 |
31193-86030-000 |
US $2.80 |
||
|
10
|
10
31110-56B10-000
YOKE ASSY
J20A:4AT; 1996-10-01~1997-08-01 |
31110-56B10-000 |
— | ||
|
11
|
11
31173-60A11-000
ブラシアッシ,スターティングモータ
J20A:4AT; 1996-10-01~1997-08-01 |
31173-60A11-000 |
— | ||
| replacement | |||||
|
11
|
11
31173-60A12-000 HOLDER ASSY,BRUSHJ20A:4AT; 1996-10-01~1997-08-01 |
31173-60A12-000 |
US $79.12 |
||
|
12
|
12
31172-64B60-000 BEARING,REARJ20A:4AT; 1996-10-01~1997-08-01 |
31172-64B60-000 |
US $10.56 |
||
|
13
|
13
31152-79030-000 BEARING,FRONTJ20A:4AT; 1996-10-01~1997-08-01 |
31152-79030-000 |
US $11.68 |
||
|
14
|
14
31261-60A10-000
Bolt
J20A:4AT; 1996-10-01~1997-08-01 |
31261-60A10-000 |
— | ||
|
15
|
15
31191-86030-000
LEVER ASSY
J20A:4AT; 1996-10-01~1997-08-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86030-000 SWITCH ASSYJ20A:4AT; 1996-10-01~1997-08-01 |
31220-86030-000 |
US $144.62 |
||
|
17
|
17
31136-79030-000
SCREW ASSY
J20A:4AT; 1996-10-01~1997-08-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
17
|
17
31175-79030-000 Screw SetJ20A:4AT; 1996-10-01~1997-08-01 |
31175-79030-000 |
US $8.16 |
||
|
18
|
18
08316-10083-000
Nut
J20A:4AT; 1996-10-01~1997-08-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1008B-000 NUTJ20A:4AT; 1996-10-01~1997-08-01 |
08316-1008B-000 |
from US $0.76 |
||
|
19
|
19
01550-08353-000
Bolt, rear
J20A:4AT; 1996-10-01~1997-08-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0835B-000 BOLTJ20A:4AT; 1996-10-01~1997-08-01 |
01550-0835B-000 |
from US $1.12 |
||
|
19
|
19
01550-0835A-000 BOLTJ20A:4AT; 1996-10-01~1997-08-01 |
01550-0835A-000 |
from US $1.06 |
||
|
20
|
20
01550-08503-000
Bolt
J20A:4AT; 1996-10-01~1997-08-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0850B-000 BoltJ20A:4AT; 1996-10-01~1997-08-01 |
01550-0850B-000 |
from US $1.22 |
||
