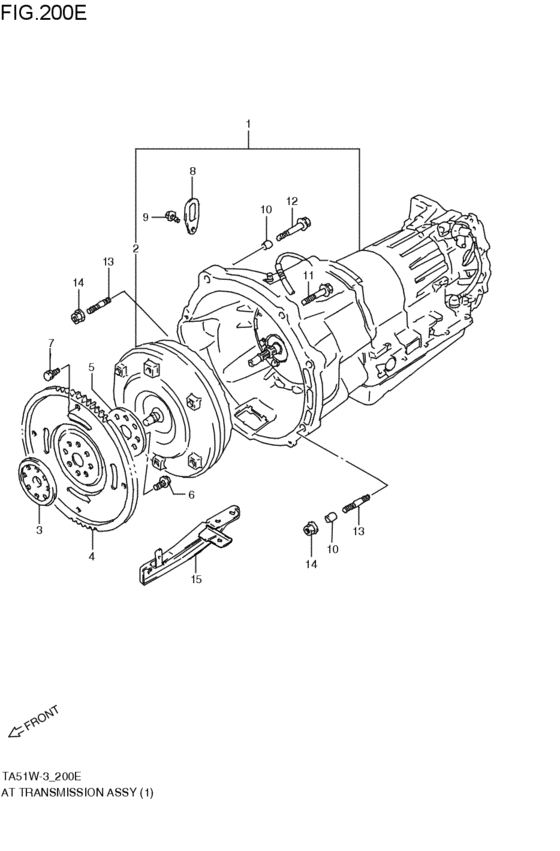

at - transmission assy (4AT:J20A; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1996 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- STD
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-77ED0-000
トランスミッションアッシ,オートマチック
4AT:J20A; 1996-10-01~1997-08-01 |
21000-77ED0-000 |
— | ||
|
1
|
1
21000-77ED0-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; 4AT:J20A; 1996-10-01~1997-08-01 |
21000-77ED0-111 |
— | ||
|
2
|
2
22700-77EB1-000
コンバータ,トルク
4AT:J20A; 1996-10-01~1997-08-01 |
22700-77EB1-000 |
— | ||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FR4AT:J20A; 1996-10-01~1997-08-01 |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-77EB0-000
プレート,ドライブ
4AT:J20A; 1996-10-01~1997-08-01 |
22620-77EB0-000 |
— | ||
| replacement | |||||
|
4
|
4
22620-77EB1-000 PLATE,TC DRIVE4AT:J20A; 1996-10-01~1997-08-01 |
22620-77EB1-000 |
from US $161.01 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RR4AT:J20A; 1996-10-01~1997-08-01 |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)4AT:J20A; 1996-10-01~1997-08-01 |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-10286-000 BOLT(10X12)4AT:J20A; 1996-10-01~1997-08-01 |
09103-10286-000 |
from US $2.09 |
||
|
8
|
8
11851-62B00-000 HOOK4AT:J20A; 1996-10-01~1997-08-01 |
11851-62B00-000 |
US $5.02 |
||
|
9
|
9
01550-08123-000
Bolt
4AT:J20A; 1996-10-01~1997-08-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0812B-000 BoltPlug, drain 4AT:J20A; 1996-10-01~1997-08-01 |
01550-0812B-000 |
from US $0.96 |
||
|
9
|
9
01550-0812A-000 BOLT4AT:J20A; 1996-10-01~1997-08-01 |
01550-0812A-000 |
from US $0.91 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17)4AT:J20A; 1996-10-01~1997-08-01 |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
01550-12653-000
ボルト
4AT:J20A; 1996-10-01~1997-08-01 |
01550-12653-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1265B-000 Bolt4AT:J20A; 1996-10-01~1997-08-01 |
01550-1265B-000 |
US $1.76 |
||
|
12
|
12
01550-12753-000
ボルト
4AT:J20A; 1996-10-01~1997-08-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
12
|
12
01550-1275A-000 BOLT4AT:J20A; 1996-10-01~1997-08-01 |
01550-1275A-000 |
US $1.92 |
||
|
13
|
13
09108-12007-000
Bolt,stud
4AT:J20A; 1996-10-01~1997-08-01 |
09108-12007-000 |
— | ||
| replacement | |||||
|
13
|
13
09108-12012-000 BOLT,STUD4AT:J20A; 1996-10-01~1997-08-01 |
09108-12012-000 |
from US $2.50 |
||
|
14
|
14
08316-10123-000
Nut
4AT:J20A; 1996-10-01~1997-08-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1012A-000 NUT4AT:J20A; 1996-10-01~1997-08-01 |
08316-1012A-000 |
from US $0.96 |
||
|
15
|
15
24790-77EA0-000 STIFFENER,CASE,R4AT:J20A; 1996-10-01~1997-08-01 |
24790-77EA0-000 |
US $28.70 |
||
