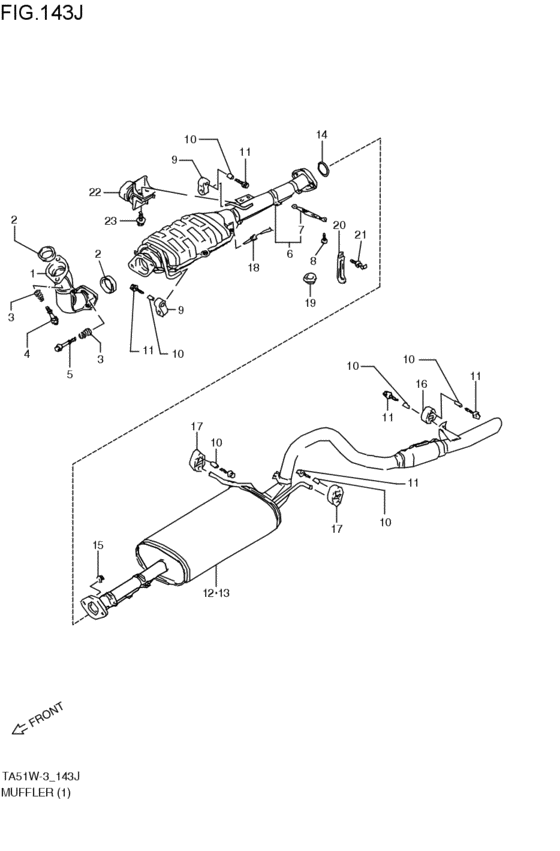

muffler (J20A; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- SB3
- air bag
- NAB
- abs
- ABS-N
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-58B02-000 PIPE,EXH NO.1J20A; 1996-10-01~1997-08-01 |
14190-58B02-000 |
US $358.80 |
||
|
2
|
2
14183-58B02-000
Ring,seal exh pipe
J20A; 1996-10-01~1997-08-01 |
14183-58B02-000 |
— | ||
| replacements | |||||
|
2
|
2
14183-65D00-000 RING,SEAL EXH PIPEJ20A; 1996-10-01~1997-08-01 |
14183-65D00-000 |
US $20.80 |
||
|
2
|
2
14183-58B10-000 RING,SEAL EXH PIPEJ20A; 1996-10-01~1997-08-01 |
14183-58B10-000 |
from US $18.27 |
||
|
3
|
3
14492-82600-000
Spring
CHKK; J20A; 1996-10-01~1997-08-01 |
14492-82600-000 |
— | ||
| replacement | |||||
|
3
|
3
14492-67D00-000 SPRING,EXH PIPECHKK; J20A; 1996-10-01~1997-08-01 |
14492-67D00-000 |
from US $5.69 |
||
|
4
|
4
09119-10041-000 BOLT(10X65)J20A; 1996-10-01~1997-08-01 |
09119-10041-000 |
from US $5.92 |
||
|
5
|
5
09119-10042-000
ボルト,10X65
J20A; 1996-10-01~1997-08-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
5
|
5
09119-10041-000 BOLT(10X65)J20A; 1996-10-01~1997-08-01 |
09119-10041-000 |
from US $5.92 |
||
|
6
|
6
14250-77E32-000
パイプ,エキゾースト,NO.2
J20A; 1996-10-01~1997-08-01 |
14250-77E32-000 |
— | ||
| replacement | |||||
|
6
|
6
14250-77E3V-000
New Genuine Part
J20A; 1996-10-01~1997-08-01 |
14250-77E3V-000 |
— | ||
|
7
|
7
39312-82012-000 WIRE,NOISE SUPPRJ20A; 1996-10-01~1997-08-01 |
39312-82012-000 |
US $9.76 |
||
|
8
|
8
03141-06163-000
Screw 6x16
J20A; 1996-10-01~1997-08-01 |
03141-06163-000 |
— | ||
| replacement | |||||
|
8
|
8
03141-0616A-000 SCREWJ20A; 1996-10-01~1997-08-01 |
03141-0616A-000 |
from US $0.76 |
||
|
9
|
9
14281-71C00-000
マウンチング,マフラ
J20A; 1996-10-01~1997-08-01 |
14281-71C00-000 |
— | ||
| replacement | |||||
|
9
|
9
14281-71C01-000 MOUNTING,MUFJ20A; 1996-10-01~1997-08-01 |
14281-71C01-000 |
from US $7.49 |
||
|
10
|
10
09180-08057-000
Spacer
J20A; 1996-10-01~1997-08-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
10
|
10
09180-08227-000 SPACER(8.2X12.5X23.5)J20A; 1996-10-01~1997-08-01 |
09180-08227-000 |
from US $1.92 |
||
|
11
|
11
01550-08353-000
Bolt, rear
J20A; 1996-10-01~1997-08-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0835B-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0835B-000 |
from US $1.12 |
||
|
11
|
11
01550-0835A-000 BOLTJ20A; 1996-10-01~1997-08-01 |
01550-0835A-000 |
from US $1.06 |
||
|
13
|
13
14300-77E50-000
マフラ,エキゾースト
J20A:5DR; 1996-10-01~1997-08-01 |
14300-77E50-000 |
— | ||
| replacement | |||||
|
13
|
13
14300-77E5V-000 MUFFLERJ20A:5DR; 1996-10-01~1997-08-01 |
14300-77E5V-000 |
US $478.72 |
||
|
14
|
14
14182-58B10-000 GASKET,MUFFLERJ20A; 1996-10-01~1997-08-01 |
14182-58B10-000 |
from US $4.79 |
||
|
15
|
15
09159-10049-000
Nut
J20A; 1996-10-01~1997-08-01 |
09159-10049-000 |
— | ||
| replacement | |||||
|
15
|
15
09159-10102-000 NUTJ20A; 1996-10-01~1997-08-01 |
09159-10102-000 |
from US $0.97 |
||
|
16
|
16
14281-78010-000
Mounting, muffler
J20A; 1996-10-01~1997-08-01 |
14281-78010-000 |
— | ||
| replacement | |||||
|
16
|
16
14281-60G01-000 MOUNTING,MUFJ20A; 1996-10-01~1997-08-01 |
14281-60G01-000 |
US $9.28 |
||
|
17
|
17
14281-58B00-000
マウンチング,マフラ
J20A; 1996-10-01~1997-08-01 |
14281-58B00-000 |
— | ||
| replacement | |||||
|
17
|
17
14281-58B01-000 MOUNTING,MUFJ20A; 1996-10-01~1997-08-01 |
14281-58B01-000 |
US $22.40 |
||
|
18
|
18
14810-77E00-000
Thermofuse,cat
NGK; J20A; 1996-10-01~1997-08-01 |
14810-77E00-000 |
— | ||
| replacement | |||||
|
18
|
18
14810-77E0V-000
THERMO FUSE,CTLST
NGK; J20A; 1996-10-01~1997-08-01 |
14810-77E0V-000 |
— | ||
|
19
|
19
09250-25007-000 CAP(OD:25.0)J20A; 1996-10-01~1997-08-01 |
09250-25007-000 |
from US $0.97 |
||
|
20
|
20
09404-06425-000
CLAMP(L:80)
J20A; 1996-10-01~1997-08-01 |
09404-06425-000 |
— | ||
|
21
|
21
02162-06103-000
Bolt
J20A; 1996-10-01~1997-08-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
21
|
21
02162-0610A-000 SCREWJ20A; 1996-10-01~1997-08-01 |
02162-0610A-000 |
from US $0.64 |
||
|
22
|
22
14260-77EA0-000 DAMPER,EXH PIPEJ20A; 1996-10-01~1997-08-01 |
14260-77EA0-000 |
US $37.90 |
||
|
23
|
23
01550-08203-000
Bolt
J20A; 1996-10-01~1997-08-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0820B-000 BoltJ20A; 1996-10-01~1997-08-01 |
01550-0820B-000 |
from US $0.91 |
||
|
23
|
23
01550-0820A-000 BOLTBolt, funnel bracket J20A; 1996-10-01~1997-08-01 |
01550-0820A-000 |
from US $0.96 |
||
