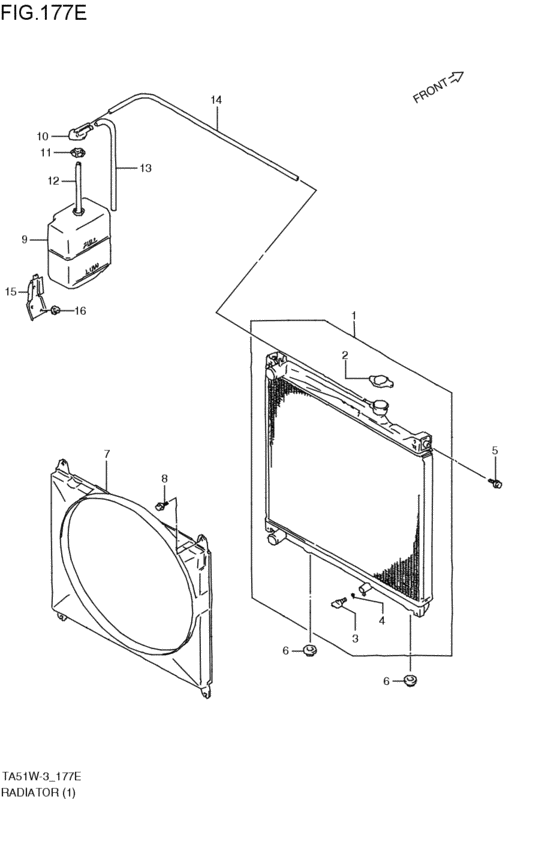

radiator (J20A; 1996-10-01~1997-08-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- 4AT
- Number of doors
- 5DR
- grade
- SB3
- air bag
- 2AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17700-65D11-000 RADIATOR ASSYDENSO; J20A:4AT; 1996-10-01~1997-08-01 |
17700-65D11-000 |
US $1,281.60 |
||
|
2
|
2
17920-66F01-000 CAP,RADIATOR 1.1DENSO; J20A; 1996-10-01~1997-08-01 |
17920-66F01-000 |
US $32.80 |
||
|
3
|
3
17751-61A00-000 PLUG,DRAINDENSO; J20A; 1996-10-01~1997-08-01 |
17751-61A00-000 |
US $4.32 |
||
|
4
|
4
17759-72010-000 O-RINGDENSO; J20A; 1996-10-01~1997-08-01 |
17759-72010-000 |
US $1.52 |
||
|
5
|
5
02162-06253-000
Bolt
J20A; 1996-10-01~1997-08-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0625A-000 SCREWJ20A; 1996-10-01~1997-08-01 |
02162-0625A-000 |
from US $0.76 |
||
|
6
|
6
17812-82000-000 BUSHING,RADIATOR SUPPORTJ20A; 1996-10-01~1997-08-01 |
17812-82000-000 |
US $2.43 |
||
|
7
|
7
17761-77EA0-000 SHROUD,FANJ20A; 1996-10-01~1997-08-01 |
17761-77EA0-000 |
US $113.60 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
J20A; 1996-10-01~1997-08-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt J20A; 1996-10-01~1997-08-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket J20A; 1996-10-01~1997-08-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
17931-77E00-000 TANK,WATER RESERVEJ20A; 1996-10-01~1997-08-01 |
17931-77E00-000 |
US $46.74 |
||
|
10
|
10
17932-60G10-000 CAP,WATER RESERVE TANKJ20A; 1996-10-01~1997-08-01 |
17932-60G10-000 |
US $6.08 |
||
|
11
|
11
17933-60B00-000 RUBBER,WTR RSV TANK CAPRubber, tank cap J20A; 1996-10-01~1997-08-01 |
17933-60B00-000 |
US $2.13 |
||
|
12
|
12
09352-70111-600 HOSE(7X11X600)L:600>190; J20A; 1996-10-01~1997-08-01 |
09352-70111-600 |
US $6.84 |
||
|
13
|
13
17939-77E00-000 HOSE,RSV TANK VENT PIPEJ20A; 1996-10-01~1997-08-01 |
17939-77E00-000 |
US $6.26 |
||
|
14
|
14
09352-70121-600 HOSE(7X12.1X600)Hose (inmani to iac) J20A; 1996-10-01~1997-08-01 |
09352-70121-600 |
from US $5.93 |
||
|
15
|
15
17937-57B00-000
BRACKET,WATER RESERVE TANK
J20A; 1996-10-01~1997-08-01 |
17937-57B00-000 |
— | ||
|
16
|
16
08316-10063-000
Nut
J20A; 1996-10-01~1997-08-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
16
|
16
08316-1006B-000 NUTJ20A; 1996-10-01~1997-08-01 |
08316-1006B-000 |
from US $0.76 |
||
