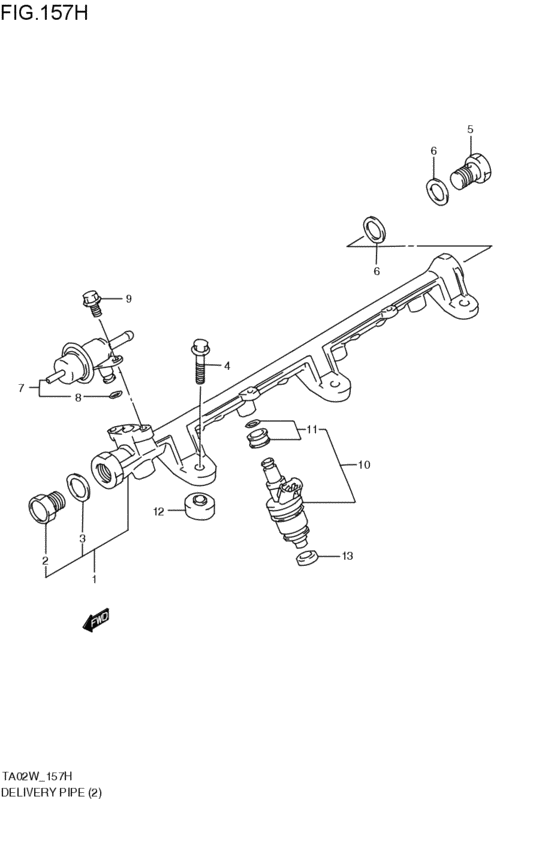

delivery pipe / fuel injector (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1997 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- NORMAL
- body
- W
- air bag
- NAB
- abs
- NABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15700-65810-000
パイプ,デリバリ
J20A; 1997-11-01~2000-03-01 |
15700-65810-000 |
— | ||
| replacement | |||||
|
1
|
1
15700-65812-000 PIPE SET,DELIVERYJ20A; 1997-11-01~2000-03-01 |
15700-65812-000 |
US $238.40 |
||
|
2
|
2
09247-14029-000 PLUGJ20A; 1997-11-01~2000-03-01 |
09247-14029-000 |
from US $1.26 |
||
|
3
|
3
15762-61B00-000
Gasket,union(14x19x0.84)
J20A; 1997-11-01~2000-03-01 |
15762-61B00-000 |
— | ||
| replacement | |||||
|
3
|
3
15762-61B01-000 GASKET,UNION(14X19X0.84)J20A; 1997-11-01~2000-03-01 |
15762-61B01-000 |
US $1.52 |
||
|
4
|
4
01550-08353-000
Bolt, rear
J20A; 1997-11-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
09360-14012-000 BOLT,14X27Bolt, union (14x27) J20A; 1997-11-01~2000-03-01 |
09360-14012-000 |
from US $6.88 |
||
|
6
|
6
15762-61B00-000
Gasket,union(14x19x0.84)
J20A; 1997-11-01~2000-03-01 |
15762-61B00-000 |
— | ||
| replacement | |||||
|
6
|
6
15762-61B01-000 GASKET,UNION(14X19X0.84)J20A; 1997-11-01~2000-03-01 |
15762-61B01-000 |
US $1.52 |
||
|
7
|
7
15160-77E00-000
レギュレータアッシ,フューエルプレッシャ
J20A; 1997-11-01~2000-03-01 |
15160-77E00-000 |
— | ||
| replacement | |||||
|
7
|
7
15610-67D00-000 REGULATOR,FUEL PRESSUREJ20A; 1997-11-01~2000-03-01 |
15610-67D00-000 |
US $125.60 |
||
|
8
|
8
15710-51E10-000 O-RINGJ20A; 1997-11-01~2000-03-01 |
15710-51E10-000 |
US $1.92 |
||
|
9
|
9
09103-06168-000 BOLT(6X10)J20A; 1997-11-01~2000-03-01 |
09103-06168-000 |
from US $1.01 |
||
|
10
|
10
15710-65D00-000 INJECTOR ASSY,FUEL (ORANGE)Injector, fuel J20A; 1997-11-01~2000-03-01 |
15710-65D00-000 |
from US $275.24 |
||
|
11
|
11
15716-65DT0-000 GROMMET SET,FUEL INJECTORJ20A; 1997-11-01~2000-03-01 |
15716-65DT0-000 |
from US $8.64 |
||
|
12
|
12
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe J20A; 1997-11-01~2000-03-01 |
15735-58B00-000 |
US $2.72 |
||
|
13
|
13
09320-08062-000 CUSHIONJ20A; 1997-11-01~2000-03-01 |
09320-08062-000 |
from US $4.32 |
||
