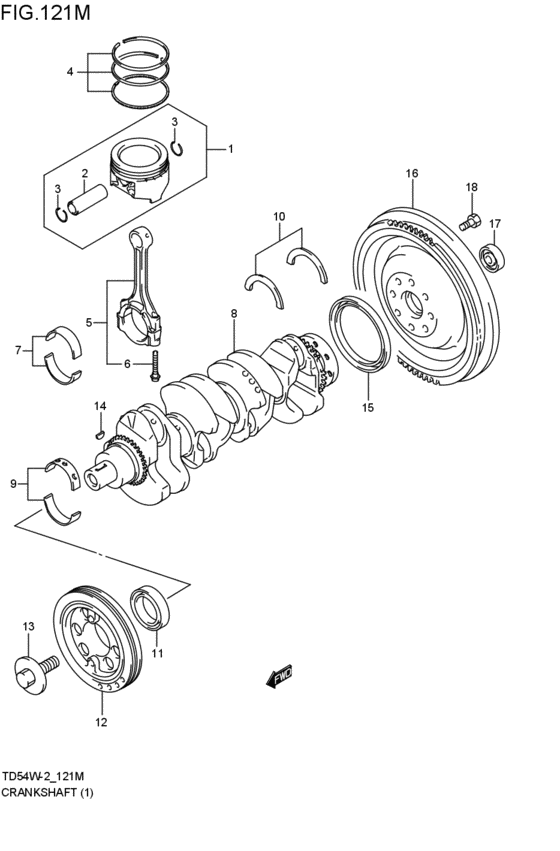

crankshaft (J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 5MT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-65820-0B0
ピストンセット,STD,マーク 2
マーク 2; J20A; 2006-06-01~2006-09-01 |
12100-65820-0B0 |
— | ||
| replacement | |||||
|
1
|
1
12100-65821-0B0 PISTON SET,STD MARK 2マーク 2; J20A; 2006-06-01~2006-09-01 |
12100-65821-0B0 |
US $93.47 |
||
|
1
|
1
12100-65821-0A0 PISTON SET,STD MARK 1マーク 1; J20A; 2006-06-01~2006-09-01 |
12100-65821-0A0 |
US $93.47 |
||
|
1
|
1
12100-65821-0B0 PISTON SET,STD MARK 2マーク 2; J20A; 2006-10-01~ |
12100-65821-0B0 |
US $93.47 |
||
|
2
|
2
12151-86FA0-000 PIN,PISTONJ20A; 2006-06-01~ |
12151-86FA0-000 |
US $10.40 |
||
|
3
|
3
09381-21002-000 RING,SNAPJ20A; 2006-06-01~ |
09381-21002-000 |
from US $0.93 |
||
|
4
|
4
12140-65J00-000 RING SET,PISTON STDJ20A; 2006-06-01~ |
12140-65J00-000 |
from US $73.97 |
||
|
5
|
5
12160-59J00-000
Connrod assy
J20A; 2006-06-01~ |
12160-59J00-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-59J10-000 CONNROD ASSYJ20A; 2006-06-01~ |
12160-59J10-000 |
US $108.19 |
||
|
6
|
6
12163-59J00-000 BOLT,CONNRODJ20A; 2006-06-01~ |
12163-59J00-000 |
US $1.76 |
||
|
7
|
7
12100-85824-0A0 BEARING SET,CONNROD, GREENGreen カラー:グリーン; J20A; 2006-06-01~ |
12100-85824-0A0 |
US $47.20 |
||
|
7
|
7
12100-85824-0B0 BEARING SET,CONNROD, BLACKBlack カラー:ブラック; J20A; 2006-06-01~ |
12100-85824-0B0 |
US $33.44 |
||
|
7
|
7
12100-85824-0C0 BEARING SET,CONNROD, NO COLORColor: None カラー:ナシ; J20A; 2006-06-01~ |
12100-85824-0C0 |
US $47.20 |
||
|
7
|
7
12100-85824-0D0 BEARING SET,CONNROD, YELLOWYellow カラー:イエロー; J20A; 2006-06-01~ |
12100-85824-0D0 |
US $33.44 |
||
|
7
|
7
12100-85824-0E0 BEARING SET,CONNROD, BLUEBlue カラー:ブルー; J20A; 2006-06-01~ |
12100-85824-0E0 |
US $33.44 |
||
|
7
|
7
12100-85824-025 BEARING SET,CONNROD US:0.25Red カラー:レッド; J20A; 2006-06-01~ |
12100-85824-025 |
US $19.32 |
||
|
8
|
8
12220-65J01-000 CRANKSHAFTJ20A; 2006-06-01~ |
12220-65J01-000 |
US $929.28 |
||
|
9
|
9
12340-85FC0-0A0 BEARING SET,CRANK GREENカラー:グリーン; J20A; 2006-06-01~ |
12340-85FC0-0A0 |
US $46.40 |
||
|
9
|
9
12340-85FC0-0B0 BEARING SET,CRANK BLACKカラー:ブラック; J20A; 2006-06-01~ |
12340-85FC0-0B0 |
US $39.52 |
||
|
9
|
9
12340-85FC0-0C0 BEARING SET,CRANK NONカラー:ナシ; J20A; 2006-06-01~ |
12340-85FC0-0C0 |
US $39.52 |
||
|
9
|
9
12340-85FC0-0D0 BEARING SET,CRANK YELLOWカラー:イエロー; J20A; 2006-06-01~ |
12340-85FC0-0D0 |
US $39.52 |
||
|
9
|
9
12340-85FC0-0E0 BEARING SET,CRANK BLUEカラー:ブルー; J20A; 2006-06-01~ |
12340-85FC0-0E0 |
US $39.52 |
||
|
9
|
9
12300-85860-0AA BEARING SET,CRANK RED/GREENカラー:レッド/グリーン; J20A; 2006-06-01~ |
12300-85860-0AA |
US $39.52 |
||
|
9
|
9
12300-85860-0BA BEARING SET,CRANK RED/BLACKカラー:レッド/ブラック; J20A; 2006-06-01~ |
12300-85860-0BA |
US $39.52 |
||
|
9
|
9
12300-85860-0CA BEARING SET,CRANK REDカラー:レッド; J20A; 2006-06-01~ |
12300-85860-0CA |
US $39.52 |
||
|
9
|
9
12300-85860-0DA BEARING SET,CRANK RED/YELLOWカラー:レッド/イエロー; J20A; 2006-06-01~ |
12300-85860-0DA |
US $39.52 |
||
|
9
|
9
12300-85860-0EA BEARING SET,CRANK RED/BLUEカラー:レッド/ブルー; J20A; 2006-06-01~ |
12300-85860-0EA |
US $39.52 |
||
|
9
|
9
12340-85FC0-A0B BEARING SET,CRANK GREEN/BLACKカラー:グリーン/ブラック; J20A; 2006-06-01~ |
12340-85FC0-A0B |
US $39.52 |
||
|
9
|
9
12340-85FC0-B0C BEARING SET,CRANK BLACK/NONカラー:ブラック/ナシ; J20A; 2006-06-01~ |
12340-85FC0-B0C |
US $39.52 |
||
|
9
|
9
12340-85FC0-C0D BEARING SET,CRANK NON/YELLOWカラー:ナシ/イエロー; J20A; 2006-06-01~ |
12340-85FC0-C0D |
US $39.52 |
||
|
9
|
9
12340-85FC0-D0E BEARING SET,CRANK YELLOW/BLUEカラー:イエロー/ブルー; J20A; 2006-06-01~ |
12340-85FC0-D0E |
US $26.86 |
||
|
10
|
10
12300-85830-000 BEARING SET,CRANK THRUSTJ20A; 2006-06-01~ |
12300-85830-000 |
US $24.09 |
||
|
10
|
10
12300-85830-012 BEARING SET,CRANK THRUST OSBearing set, crank thrust (os:0.12) J20A; 2006-06-01~ |
12300-85830-012 |
US $28.80 |
||
|
11
|
11
09283-45012-000 SEAL,OIL(45X63X7.5)J20A; 2006-06-01~ |
09283-45012-000 |
US $30.40 |
||
|
12
|
12
12610-62G12-000 PULLEY,CRANKSHAFTJ20A; 2006-06-01~ |
12610-62G12-000 |
US $193.20 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEYJ20A; 2006-06-01~ |
12615-85FA0-000 |
US $12.46 |
||
|
14
|
14
08341-31059-000 KEYKey J20A; 2006-06-01~ |
08341-31059-000 |
from US $1.60 |
||
|
15
|
15
09283-98002-000 SEAL,OIL(98X116X10)J20A; 2006-06-01~ |
09283-98002-000 |
from US $46.17 |
||
|
16
|
16
12620-77EA0-000 FLYWHEELJ20A:MT; 2006-06-01~ |
12620-77EA0-000 |
US $347.76 |
||
|
17
|
17
12623-71C01-000 BEARING,INPUT SHAFTJ20A:MT; 2006-06-01~ |
12623-71C01-000 |
US $13.92 |
||
|
18
|
18
09103-10282-000 BOLT(10X18.5)J20A:MT; 2006-06-01~ |
09103-10282-000 |
US $2.08 |
||
