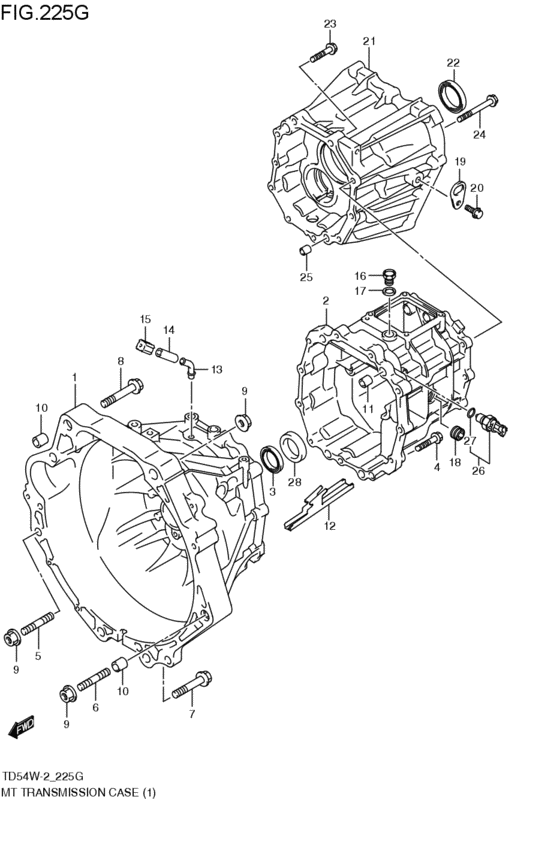

mt - transmission case (MT:J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 5MT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-65J00-000 CASE,T/M,FRMT:J20A; 2006-06-01~ |
24711-65J00-000 |
US $450.56 |
||
|
2
|
2
24721-84A01-000 CASE,T/M,RRMT:J20A; 2006-06-01~ |
24721-84A01-000 |
US $230 |
||
|
3
|
3
09283-30074-000 SEAL,OIL(30X42X7)MT:J20A; 2006-06-01~ |
09283-30074-000 |
US $7.84 |
||
|
4
|
4
01550-0840A-000 BOLTMT:J20A; 2006-06-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
5
|
5
09108-12006-000 BOLT,STUDMT:J20A; 2006-06-01~ |
09108-12006-000 |
US $28 |
||
|
6
|
6
09108-12012-000 BOLT,STUDMT:J20A; 2006-06-01~ |
09108-12012-000 |
US $2.72 |
||
|
7
|
7
01550-1265A-000 BoltMT:J20A; 2006-06-01~ |
01550-1265A-000 |
US $24.70 |
||
|
8
|
8
01550-1275A-000 BOLTMT:J20A; 2006-06-01~ |
01550-1275A-000 |
US $1.92 |
||
|
9
|
9
08316-1012A-000 NUTMT:J20A; 2006-06-01~ |
08316-1012A-000 |
from US $0.96 |
||
|
10
|
10
09206-15001-000 PIN(12.4X15X17)MT:J20A; 2006-06-01~ |
09206-15001-000 |
US $1.92 |
||
|
11
|
11
04211-13149-000 PINMT:J20A; 2006-06-01~ |
04211-13149-000 |
from US $1.28 |
||
|
12
|
12
24815-84A00-000 GUTTER,OILMT:J20A; 2006-06-01~ |
24815-84A00-000 |
US $5.12 |
||
|
13
|
13
24821-59J00-000 UNION,BREATHERMT:J20A; 2006-06-01~ |
24821-59J00-000 |
US $6.56 |
||
|
14
|
14
09355-70125-600 HOSE(7X12X600)Hose, fuel (pump to separator) L:600>40; MT:J20A; 2006-06-01~ |
09355-70125-600 |
from US $6.54 |
||
| replacement | |||||
|
14
|
14
44421-12FR0-000 HOSEL:600>40; MT:J20A; 2006-06-01~ |
44421-12FR0-000 |
from US $16.64 |
||
|
15
|
15
27991-65D01-000 PLUG,BREATHERMT:J20A; 2006-06-01~ |
27991-65D01-000 |
US $1.92 |
||
|
16
|
16
09247-14029-000 PLUGMT:J20A; 2006-06-01~ |
09247-14029-000 |
from US $1.76 |
||
|
17
|
17
22913-59J10-000 GASKET,14X20X0.9MT:J20A; 2006-06-01~ |
22913-59J10-000 |
US $1.52 |
||
|
18
|
18
09246-16010-000
PLUG
MT:J20A; 2006-06-01~ |
09246-16010-000 |
— | ||
| replacement | |||||
|
18
|
18
09246-16021-000 Plug,t/m Oil DrainMT:J20A; 2006-06-01~ |
09246-16021-000 |
US $4.86 |
||
|
19
|
19
11851-72B21-000 HOOK,ENGINEMT:J20A; 2006-06-01~ |
11851-72B21-000 |
US $2.80 |
||
|
20
|
20
01550-0816A-000 BOLTBolt, rear MT:J20A; 2006-06-01~ |
01550-0816A-000 |
from US $0.91 |
||
|
21
|
21
24771-64J00-000
ケース,アダプタ
MT:J20A; 2006-06-01~ |
24771-64J00-000 |
— | ||
| replacement | |||||
|
21
|
21
24771-64J01-000 CASE,ADAPTERMT:J20A; 2006-06-01~ |
24771-64J01-000 |
US $281.52 |
||
|
22
|
22
09283-44015-000 SEAL,OIL(44X60X9.5)MT:J20A; 2006-06-01~ |
09283-44015-000 |
US $20 |
||
|
23
|
23
01550-0840A-000 BOLTMT:J20A; 2006-06-01~ |
01550-0840A-000 |
from US $1.12 |
||
|
24
|
24
01550-0880A-000 BOLTMT:J20A; 2006-06-01~ |
01550-0880A-000 |
from US $1.76 |
||
|
25
|
25
04211-13149-000 PINMT:J20A; 2006-06-01~ |
04211-13149-000 |
from US $1.28 |
||
|
26
|
26
37610-76G10-000 SWITCH ASSY,BACK UPMT:J20A; 2006-06-01~ |
37610-76G10-000 |
US $17.49 |
||
|
27
|
27
09280-11002-000 O RING(D:1.9,ID:11.4)MT:J20A; 2006-06-01~ |
09280-11002-000 |
US $1.52 |
||
|
28
|
28
24151-64J00-000 SEAL,PUMPMT:J20A; 2006-06-01~ |
24151-64J00-000 |
US $25.60 |
||
