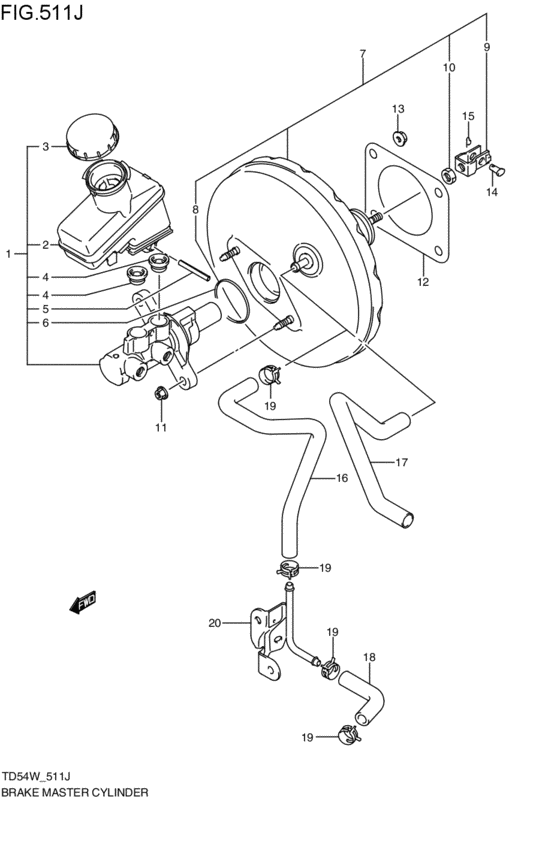

brakes master cylinder (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51100-65J00-000
CYLINDER ASSY,BRAKE MASTER
MT; 2005-05-01~2006-06-01 |
51100-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
51100-65J01-000 CYLINDER ASSY,BRAKE MASTERMT; 2005-05-01~2006-06-01 |
51100-65J01-000 |
from US $262.51 |
||
|
2
|
2
51200-65J00-000
Reservoir assy,ma cylinder
MT; 2005-05-01~2006-06-01 |
51200-65J00-000 |
— | ||
| replacement | |||||
|
2
|
2
51200-65J01-000 RESERVOIR ASSY,BRAKE MASTERMT; 2005-05-01~2006-06-01 |
51200-65J01-000 |
from US $89.79 |
||
|
3
|
3
51220-54G00-000 CAP,RESERVOIR2005-05-01~2006-06-01 |
51220-54G00-000 |
US $21.60 |
||
|
4
|
4
51232-65J00-000 GROMMET,RSVR CONNECTOR2005-05-01~2006-06-01 |
51232-65J00-000 |
US $3.04 |
||
|
5
|
5
51233-65J00-000 PIN2005-05-01~2006-06-01 |
51233-65J00-000 |
US $1.98 |
||
|
6
|
6
51311-65J00-000 O-RING2005-05-01~2006-06-01 |
51311-65J00-000 |
US $11.56 |
||
|
7
|
7
51300-65J00-000 BOOSTER ASSY,BRAKE MASTER2005-05-01~2006-06-01 |
51300-65J00-000 |
US $923.20 |
||
|
8
|
8
51311-65J00-000 O-RING2005-05-01~2006-06-01 |
51311-65J00-000 |
US $11.56 |
||
|
9
|
9
51182-85520-000 CLEVIS,CYLINDER PUSH ROD2005-05-01~2006-06-01 |
51182-85520-000 |
US $10.27 |
||
|
10
|
10
08316-10103-000
Nut
2005-05-01~2006-06-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1010B-000 NUT2005-05-01~2006-06-01 |
08316-1010B-000 |
from US $0.80 |
||
|
11
|
11
51313-65J00-000 NUT2005-05-01~2006-06-01 |
51313-65J00-000 |
US $3.35 |
||
|
12
|
12
51132-82003-000 PACKING,BRAKE MASTER CYLINDER2005-05-01~2006-06-01 |
51132-82003-000 |
US $1.60 |
||
|
13
|
13
09159-08069-000
Nut
2005-05-01~2006-06-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
13
|
13
09159-08135-000 NUT2005-05-01~2006-06-01 |
09159-08135-000 |
from US $0.77 |
||
|
14
|
14
09200-10021-000 PIN2005-05-01~2006-06-01 |
09200-10021-000 |
US $1.28 |
||
|
15
|
15
09385-10006-000 PIN,SNAPPin 2005-05-01~2006-06-01 |
09385-10006-000 |
from US $1.60 |
||
|
16
|
16
51010-65J00-000 HOSE,BRAKE VACUUMJ20A; 2005-05-01~2006-06-01 |
51010-65J00-000 |
US $36.80 |
||
|
18
|
18
51031-65J10-000
Hose,brake vacuum intake
J20A; 2005-05-01~2006-06-01 |
51031-65J10-000 |
— | ||
| replacements | |||||
|
18
|
18
51031-65JA2-000
HOSE,BRAKE VACUUM INTAKE
J20A; 2005-05-01~2006-06-01 |
51031-65JA2-000 |
— | ||
|
18
|
18
51031-65JA3-000 Hose,brake Vacuum IntakeJ20A; 2005-05-01~2006-06-01 |
51031-65JA3-000 |
US $9.90 |
||
|
19
|
19
09401-15404-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-15404-000 |
from US $1.06 |
||
|
20
|
20
51050-65J20-000 PIPE,BRAKE VACUUMJ20A; 2005-05-01~2006-06-01 |
51050-65J20-000 |
US $41.22 |
||
