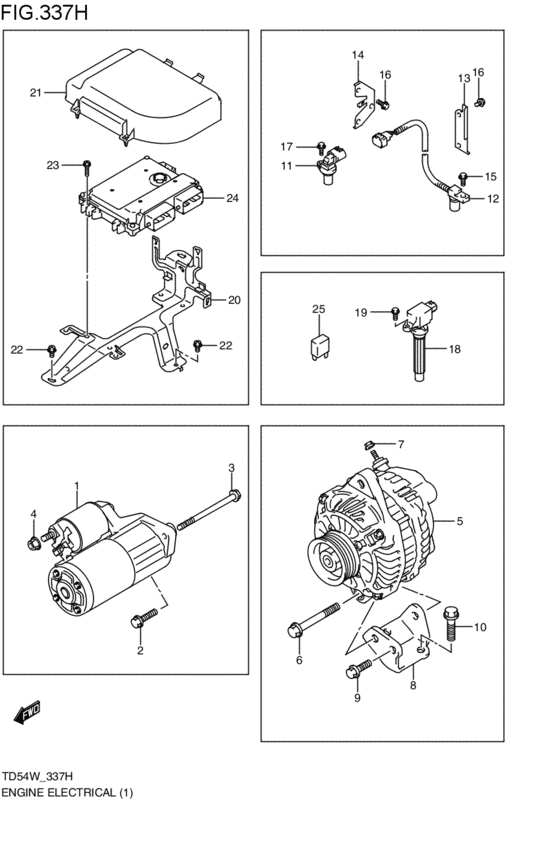

engine electrical (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-65J10-000 MOTOR ASSY,STARTINGJ20A; 2005-05-01~2006-06-01 |
31100-65J10-000 |
US $563.20 |
||
|
2
|
2
01550-08353-000
Bolt, rear
J20A:MT; 2005-05-01~2006-06-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0835B-000 BOLTJ20A:MT; 2005-05-01~2006-06-01 |
01550-0835B-000 |
from US $1.12 |
||
|
2
|
2
01550-0835A-000 BOLTJ20A:MT; 2005-05-01~2006-06-01 |
01550-0835A-000 |
from US $1.06 |
||
|
3
|
3
01550-08953-000
Bolt
J20A:MT; 2005-05-01~2006-06-01 |
01550-08953-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0895B-000 BoltBolt, crankcase (8x95) J20A:MT; 2005-05-01~2006-06-01 |
01550-0895B-000 |
US $24.70 |
||
|
3
|
3
01550-0895A-000 BOLTJ20A:MT; 2005-05-01~2006-06-01 |
01550-0895A-000 |
from US $1.82 |
||
|
4
|
4
08316-10083-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
4
|
4
08316-1008B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1008B-000 |
from US $0.76 |
||
|
5
|
5
31400-65J10-000
Generator assy
J20A; 2005-05-01~2006-06-01 |
31400-65J10-000 |
— | ||
| replacement | |||||
|
5
|
5
31400-65J14-000 GENERATOR ASSYJ20A; 2005-05-01~2006-06-01 |
31400-65J14-000 |
US $2,096 |
||
|
6
|
6
09103-10402-000 BOLT(10X95)J20A; 2005-05-01~2006-06-01 |
09103-10402-000 |
US $27.20 |
||
|
7
|
7
08316-10063-000
Nut
J20A; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1006B-000 NUTJ20A; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
8
|
8
11550-65J00-000
ブラケット,ジェネレータ
J20A; 2005-05-01~2006-06-01 |
11550-65J00-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-1030A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-1030A-000 |
from US $1.12 |
||
|
8
|
8
11550-65J01-000 BRACKET,GENERATORJ20A; 2005-05-01~2006-06-01 |
11550-65J01-000 |
US $54.10 |
||
|
9
|
9
09118-08107-000 BOLT(8X25)J20A; 2005-05-01~2006-06-01 |
09118-08107-000 |
US $1.12 |
||
|
10
|
10
01550-10353-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-10353-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1035A-000 BOLTBolt, fr fork upper J20A; 2005-05-01~2006-06-01 |
01550-1035A-000 |
from US $5.68 |
||
|
11
|
11
33220-63J00-000
SENSOR ASSY,POSITION
J20A; 2005-05-01~2006-06-01 |
33220-63J00-000 |
— | ||
| replacement | |||||
|
11
|
11
33220-64L20-000 SENSOR ASSY, CRANK POSITIONJ20A; 2005-05-01~2006-06-01 |
33220-64L20-000 |
US $81.60 |
||
|
12
|
12
33220-77E00-000 SENSOR ASSY,POSITIONJ20A; 2005-05-01~2006-06-01 |
33220-77E00-000 |
US $166.40 |
||
|
13
|
13
33221-77E00-000 BRACKET,CKP SENSORJ20A; 2005-05-01~2006-06-01 |
33221-77E00-000 |
US $4.05 |
||
|
14
|
14
33221-77E11-000 BRACKET,CKP SENSORJ20A; 2005-05-01~2006-06-01 |
33221-77E11-000 |
US $3.53 |
||
|
15
|
15
09103-06240-000 BOLT(6X16)J20A; 2005-05-01~2006-06-01 |
09103-06240-000 |
from US $1.04 |
||
|
16
|
16
01550-06123-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0612B-000 BOLTBolt, clamp J20A; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
16
|
16
01550-0612A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
17
|
17
01550-06163-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0616B-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616B-000 |
from US $0.76 |
||
|
17
|
17
01550-0616A-000 BOLTJ20A; 2005-05-01~2006-06-01 |
01550-0616A-000 |
from US $0.76 |
||
|
18
|
18
33400-65J00-000 COIL ASSY,IGNITIONJ20A; 2005-05-01~2006-06-01 |
33400-65J00-000 |
US $321.60 |
||
|
19
|
19
09135-05002-000 BOLT(5X23)J20A; 2005-05-01~2006-06-01 |
09135-05002-000 |
US $14.70 |
||
|
20
|
20
33924-65J00-000 BRACKET,EPI CONTJ20A; 2005-05-01~2006-06-01 |
33924-65J00-000 |
US $58.40 |
||
|
21
|
21
33925-65J00-000 COVER,EPI CONTJ20A; 2005-05-01~2006-06-01 |
33925-65J00-000 |
US $26.40 |
||
|
22
|
22
02162-06123-000
Bolt (6x12)
J20A; 2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
22
|
22
02162-0612B-000 SCREWBolt J20A; 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
22
|
22
02162-0612A-000 SCREWBolt, bracket J20A; 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
23
|
23
02162-06253-000
Bolt
J20A; 2005-05-01~2006-06-01 |
02162-06253-000 |
— | ||
| replacement | |||||
|
23
|
23
02162-0625A-000 SCREWJ20A; 2005-05-01~2006-06-01 |
02162-0625A-000 |
from US $0.76 |
||
|
24
|
24
33920-65J41-000
コントローラアッシ,インジェクション
J20A:MT; 2005-05-01~2006-06-01 |
33920-65J41-000 |
— | ||
|
25
|
25
38860-76F01-000 RELAY ASSYRelay, starting motor J20A; 2005-05-01~2006-06-01 |
38860-76F01-000 |
from US $28.80 |
||
