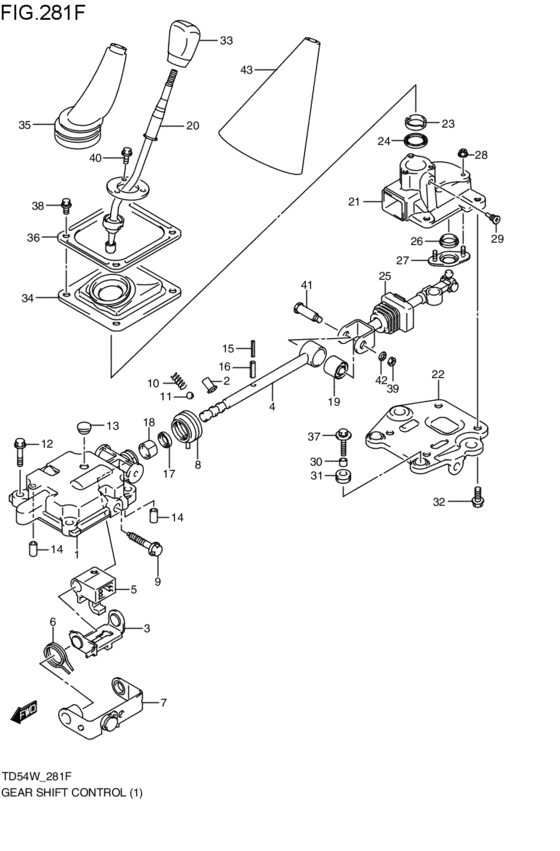

gearlever control (MT; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25121-76J00-000 CASE,GEAR SHIFT LEVERMT; 2005-05-01~2006-06-01 |
25121-76J00-000 |
US $62.93 |
||
|
2
|
2
25250-77A00-000 LOCATINGMT; 2005-05-01~2006-06-01 |
25250-77A00-000 |
US $6.29 |
||
|
3
|
3
25310-84A00-000
プレート,ギヤシフトインタロック
MT; 2005-05-01~2006-06-01 |
25310-84A00-000 |
— | ||
| replacement | |||||
|
3
|
3
25310-84A20-000 PLATE,GEAR SHF INTERLOCKMT; 2005-05-01~2006-06-01 |
25310-84A20-000 |
US $21.16 |
||
|
4
|
4
25510-64J00-000 SHAFT,GEAR SHIFTMT; 2005-05-01~2006-06-01 |
25510-64J00-000 |
US $34.96 |
||
|
5
|
5
25541-84A01-000
アーム,ギヤシフト/セレクト
MT; 2005-05-01~2006-06-01 |
25541-84A01-000 |
— | ||
| replacement | |||||
|
5
|
5
25541-84A21-000 ARM,GEAR SHIFT&SELECTMT; 2005-05-01~2006-06-01 |
25541-84A21-000 |
US $41.58 |
||
|
6
|
6
25576-84A20-000 SPRING,GEAR SELECT RETURNMT; 2005-05-01~2006-06-01 |
25576-84A20-000 |
US $2.61 |
||
|
7
|
7
25580-84A00-000
プレート,リバースギヤシフトリミット
MT; 2005-05-01~2006-06-01 |
25580-84A00-000 |
— | ||
| replacement | |||||
|
7
|
7
25580-84A01-000 PLATE,REV GR SHIFT LIMITMT; 2005-05-01~2006-06-01 |
25580-84A01-000 |
US $28.34 |
||
|
8
|
8
25651-74B00-000 BOOT,SHIFT&SELECT SFT OILMT; 2005-05-01~2006-06-01 |
25651-74B00-000 |
US $6.56 |
||
|
9
|
9
25321-84A00-000 BOLT,GEAR SHIFT STOPMT; 2005-05-01~2006-06-01 |
25321-84A00-000 |
US $3.75 |
||
|
10
|
10
25415-77D00-000 SPRING,GEAR SHF LOCATINGMT; 2005-05-01~2006-06-01 |
25415-77D00-000 |
US $1.92 |
||
|
11
|
11
06111-10003-000 BALLMT; 2005-05-01~2006-06-01 |
06111-10003-000 |
from US $0.80 |
||
|
12
|
12
09103-08153-000 BOLT(8X30)Bolt (8x30) MT; 2005-05-01~2006-06-01 |
09103-08153-000 |
US $11.80 |
||
|
13
|
13
09250-12004-000 CAP(OD:17)MT; 2005-05-01~2006-06-01 |
09250-12004-000 |
US $12.90 |
||
|
14
|
14
04211-09169-000 PINMT; 2005-05-01~2006-06-01 |
04211-09169-000 |
from US $0.91 |
||
|
15
|
15
09205-03037-000 PIN,SPRING(3X25)MT; 2005-05-01~2006-06-01 |
09205-03037-000 |
US $1.12 |
||
|
16
|
16
09205-06007-000 PIN,SPRING(6X25)Pin (6x27) MT; 2005-05-01~2006-06-01 |
09205-06007-000 |
from US $1.60 |
||
|
17
|
17
09283-14006-000 SEAL,OIL(14X22X6)MT; 2005-05-01~2006-06-01 |
09283-14006-000 |
from US $6.38 |
||
|
18
|
18
09304-14020-000 BUSHMT; 2005-05-01~2006-06-01 |
09304-14020-000 |
US $2.24 |
||
|
19
|
19
28119-64J00-000 BUSH,GR SHF SHAFTMT; 2005-05-01~2006-06-01 |
28119-64J00-000 |
US $24.80 |
||
|
20
|
20
28101-64J00-000
レバー,ギヤシフトコントロール
MT; 2005-05-01~2006-06-01 |
28101-64J00-000 |
— | ||
| replacement | |||||
|
20
|
20
28101-64J01-000 LEVER, GEAR SHIFT CONTROLMT; 2005-05-01~2006-06-01 |
28101-64J01-000 |
US $225.60 |
||
|
21
|
21
25121-64J00-000 CASE,GEAR SHIFT LEVER,RRMT; 2005-05-01~2006-06-01 |
25121-64J00-000 |
US $91.63 |
||
|
22
|
22
25129-64J00-000
PLATE,GEAR SHIFT LEVER CASE
MT; 2005-05-01~2006-06-01 |
25129-64J00-000 |
— | ||
|
23
|
23
28117-82C02-000 SEAT,GEAR CONTROL LOWERMT; 2005-05-01~2006-06-01 |
28117-82C02-000 |
US $15.36 |
||
|
24
|
24
28118-64J00-000 RING,GEAR SHIFT LEVER CASEMT; 2005-05-01~2006-06-01 |
28118-64J00-000 |
US $7.36 |
||
|
25
|
25
28104-64J00-000
Shaft assy,gr shf rear
MT; 2005-05-01~2006-06-01 |
28104-64J00-000 |
— | ||
| replacement | |||||
|
25
|
25
28104-64J02-000 SHAFT ASSY,GR SHF RRMT; 2005-05-01~2006-06-01 |
28104-64J02-000 |
US $70.66 |
||
|
26
|
26
28152-84A00-000 BUSH,GR SHF CONTROL JOINTMT; 2005-05-01~2006-06-01 |
28152-84A00-000 |
US $2.72 |
||
|
27
|
27
28180-64J00-000 PLATE,GR SHF STOPPERMT; 2005-05-01~2006-06-01 |
28180-64J00-000 |
US $11.26 |
||
|
28
|
28
28198-64J00-000
ナット,ギヤシフトストッパプレート
MT; 2005-05-01~2006-06-01 |
28198-64J00-000 |
— | ||
| replacements | |||||
|
28
|
28
28198-78K00-000 NUT,GR SHF STPR PLATEMT; 2005-05-01~2006-06-01 |
28198-78K00-000 |
US $2.94 |
||
|
28
|
28
57870-03G00-000
NUT,GR SHF STPR PLATE
MT; 2005-05-01~2006-06-01 |
57870-03G00-000 |
— | ||
|
29
|
29
28243-64J00-000 BOLT,CONT LEVER LOCATINGMT; 2005-05-01~2006-06-01 |
28243-64J00-000 |
US $3.24 |
||
|
30
|
30
28367-64J00-000 SPACER,GEAR CONT GUIDE CUSHIONMT; 2005-05-01~2006-06-01 |
28367-64J00-000 |
US $2.56 |
||
|
31
|
31
09320-12036-000 CUSHIONCushion, holder MT; 2005-05-01~2006-06-01 |
09320-12036-000 |
from US $1.92 |
||
|
32
|
32
01550-08163-000
Bolt, holder
MT; 2005-05-01~2006-06-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
32
|
32
01550-0816B-000 BOLTMT; 2005-05-01~2006-06-01 |
01550-0816B-000 |
from US $0.91 |
||
|
32
|
32
01550-0816A-000 BOLTBolt, rear MT; 2005-05-01~2006-06-01 |
01550-0816A-000 |
from US $0.91 |
||
|
33
|
33
28113-50J04-BWK
ノブ,ギヤシフトレバー
ブラック/グレー; MT; 2005-05-01~2006-06-01 |
28113-50J04-BWK |
— | ||
| replacement | |||||
|
33
|
33
28113-50J07-BWK KNOB,GEAR SHF CONT LEVERブラック/グレー; MT; 2005-05-01~2006-06-01 |
28113-50J07-BWK |
US $83.20 |
||
|
34
|
34
28135-64810-000 BOOT SET,GR SHF LEVER NO.1MT; 2005-05-01~2006-06-01 |
28135-64810-000 |
US $34.78 |
||
|
35
|
35
28136-64J00-000 BOOT,GR SHF CONT LEVER NO.2MT; 2005-05-01~2006-06-01 |
28136-64J00-000 |
US $16.67 |
||
|
36
|
36
28137-64J00-000 COVER,GR SHF CONTROL BOOTMT; 2005-05-01~2006-06-01 |
28137-64J00-000 |
US $12.14 |
||
|
37
|
37
09118-08119-000 BOLT(8X25)MT; 2005-05-01~2006-06-01 |
09118-08119-000 |
from US $1.38 |
||
|
38
|
38
09118-08165-000 BOLT(8X25)MT; 2005-05-01~2006-06-01 |
09118-08165-000 |
US $14 |
||
|
39
|
39
09140-08021-000 NUTMT; 2005-05-01~2006-06-01 |
09140-08021-000 |
from US $3.59 |
||
|
40
|
40
01550-06123-000
Bolt
MT; 2005-05-01~2006-06-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
40
|
40
01550-0612B-000 BOLTBolt, clamp MT; 2005-05-01~2006-06-01 |
01550-0612B-000 |
from US $0.76 |
||
|
40
|
40
01550-0612A-000 BOLTMT; 2005-05-01~2006-06-01 |
01550-0612A-000 |
from US $0.76 |
||
|
41
|
41
09111-08091-000 BOLT(8X44)MT; 2005-05-01~2006-06-01 |
09111-08091-000 |
US $5.12 |
||
|
42
|
42
09162-08008-000 WASHER,LOCKLock washer MT; 2005-05-01~2006-06-01 |
09162-08008-000 |
from US $0.80 |
||
|
43
|
43
28139-67J00-000 SILENCER,GEAR SHIFT LEVERMT; 2005-05-01~2006-06-01 |
28139-67J00-000 |
US $7.62 |
||
