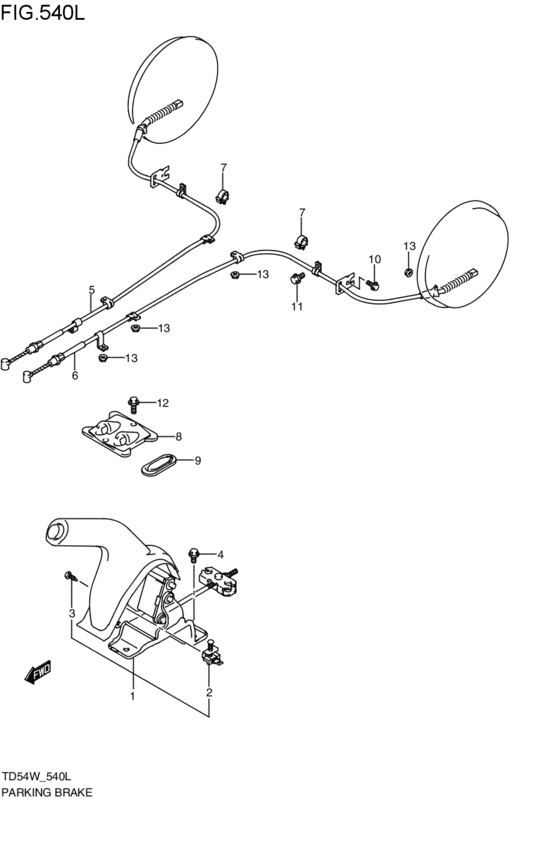

parking brakes (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54100-65J00-5PK LEVER ASSY,PARKING BKブラック; 2005-05-01~2006-06-01 |
54100-65J00-5PK |
US $135.79 |
||
|
2
|
2
37940-76G00-000 SWITCH ASSY,PARKING BRAKE2005-05-01~2006-06-01 |
37940-76G00-000 |
US $7.73 |
||
|
3
|
3
03242-04103-000
Screw
2005-05-01~2006-06-01 |
03242-04103-000 |
— | ||
| replacement | |||||
|
3
|
3
03241-0410A-000 SCREW2005-05-01~2006-06-01 |
03241-0410A-000 |
from US $0.80 |
||
|
4
|
4
01550-08123-000
Bolt
2005-05-01~2006-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0812B-000 BoltPlug, drain 2005-05-01~2006-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
4
|
4
01550-0812A-000 BOLT2005-05-01~2006-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
5
|
5
54401-65J00-000 CABLE,PARKING BRAKE,R2005-05-01~2006-06-01 |
54401-65J00-000 |
from US $72.29 |
||
|
6
|
6
54402-65J00-000 CABLE,PARKING BRAKE,L2005-05-01~2006-06-01 |
54402-65J00-000 |
US $86.11 |
||
|
7
|
7
54415-65J00-000
クランプ,パーキングケーブル
2005-05-01~2006-06-01 |
54415-65J00-000 |
— | ||
| replacement | |||||
|
7
|
7
54415-65J02-000 CLAMP,PK CABLE2005-05-01~2006-06-01 |
54415-65J02-000 |
US $1.92 |
||
|
8
|
8
54490-65J00-000 BRACKET,PARKING CABLE2005-05-01~2006-06-01 |
54490-65J00-000 |
US $20.79 |
||
|
9
|
9
54497-65J00-000 CAP,PARKING CABLE HOLE2005-05-01~2006-06-01 |
54497-65J00-000 |
US $3.09 |
||
|
10
|
10
09116-06168-000 BOLT(6X16)Bolt, front 2005-05-01~2006-06-01 |
09116-06168-000 |
from US $0.98 |
||
|
11
|
11
01550-08123-000
Bolt
2005-05-01~2006-06-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0812B-000 BoltPlug, drain 2005-05-01~2006-06-01 |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
01550-0812A-000 BOLT2005-05-01~2006-06-01 |
01550-0812A-000 |
from US $0.91 |
||
|
12
|
12
01550-08203-000
Bolt
2005-05-01~2006-06-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
12
|
12
01550-0820B-000 Bolt2005-05-01~2006-06-01 |
01550-0820B-000 |
from US $0.91 |
||
|
12
|
12
01550-0820A-000 BOLTBolt, funnel bracket 2005-05-01~2006-06-01 |
01550-0820A-000 |
from US $0.96 |
||
|
13
|
13
08316-10063-000
Nut
2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1006B-000 NUT2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
