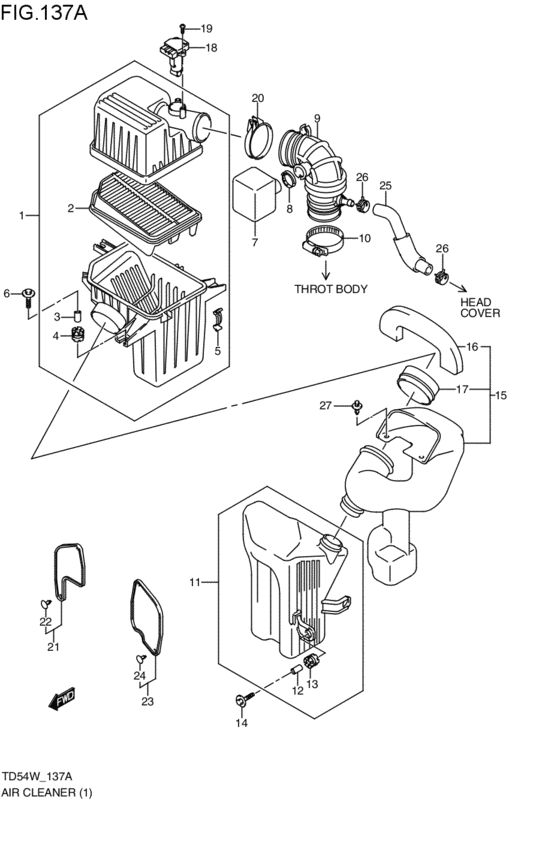

air cleaner (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13700-65J00-000 CLEANER ASSY,AIRJ20A; 2005-05-01~2006-06-01 |
13700-65J00-000 |
from US $171.79 |
||
|
2
|
2
13780-65J00-000 ELEMENT,AIR CLEANERJ20A; 2005-05-01~2006-06-01 |
13780-65J00-000 |
from US $21.65 |
||
|
3
|
3
13877-65D00-000 COLLAR,7.6X10X19.3J20A; 2005-05-01~2006-06-01 |
13877-65D00-000 |
US $3.04 |
||
|
4
|
4
13878-65D00-000 CUSHION,12.5X22X19.5J20A; 2005-05-01~2006-06-01 |
13878-65D00-000 |
US $2.74 |
||
|
5
|
5
13755-65D00-000 CLIP,AIR CLEANERJ20A; 2005-05-01~2006-06-01 |
13755-65D00-000 |
from US $3.69 |
||
|
6
|
6
09116-06172-000 BOLT(6X30)Bolt (6x30) J20A; 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
7
|
7
13761-65J20-000 RESONATORJ20A; 2005-05-01~2006-06-01 |
13761-65J20-000 |
US $11.63 |
||
|
8
|
8
13891-65J00-000 CLAMP,RESONATOR NO.2J20A; 2005-05-01~2006-06-01 |
13891-65J00-000 |
US $5.96 |
||
|
9
|
9
13881-65J00-000 HOSE,AIR CLEANER OUTLETJ20A; 2005-05-01~2006-06-01 |
13881-65J00-000 |
from US $46.08 |
||
|
10
|
10
09402-82511-000 CLAMPJ20A; 2005-05-01~2006-06-01 |
09402-82511-000 |
US $65.90 |
||
|
11
|
11
13761-65J00-000 RESONATORJ20A; 2005-05-01~2006-06-01 |
13761-65J00-000 |
from US $44.75 |
||
|
12
|
12
13877-65D00-000 COLLAR,7.6X10X19.3J20A; 2005-05-01~2006-06-01 |
13877-65D00-000 |
US $3.04 |
||
|
13
|
13
13878-65D00-000 CUSHION,12.5X22X19.5J20A; 2005-05-01~2006-06-01 |
13878-65D00-000 |
US $2.74 |
||
|
14
|
14
09116-06172-000 BOLT(6X30)Bolt (6x30) J20A; 2005-05-01~2006-06-01 |
09116-06172-000 |
from US $1.44 |
||
|
15
|
15
13820-65J00-000 PIPE,AIR CLNR SUCTIONJ20A; 2005-05-01~2006-06-01 |
13820-65J00-000 |
from US $37.69 |
||
|
16
|
16
13822-65J00-000 SEALJ20A; 2005-05-01~2006-06-01 |
13822-65J00-000 |
from US $7.95 |
||
|
17
|
17
13825-65J00-000 JOINT,SUCTION PIPEJ20A; 2005-05-01~2006-06-01 |
13825-65J00-000 |
from US $6.15 |
||
|
18
|
18
13800-63J00-000 SENSOR ASSY,MAIN AIR FLOWJ20A; 2005-05-01~2006-06-01 |
13800-63J00-000 |
from US $216.34 |
||
|
19
|
19
02112-04103-000
Screw 4x10
J20A; 2005-05-01~2006-06-01 |
02112-04103-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0410A-000 SCREWJ20A; 2005-05-01~2006-06-01 |
02112-0410A-000 |
from US $2.04 |
||
|
20
|
20
09402-82511-000 CLAMPJ20A; 2005-05-01~2006-06-01 |
09402-82511-000 |
US $65.90 |
||
|
20
|
20
13896-65D00-000
クランプ,クリーナアウトレットホース
J20A; 2005-05-01~2005-05-01 |
13896-65D00-000 |
— | ||
|
21
|
21
13840-65J00-000 COVER,LAMP SUPPORT HOLE,RJ20A; 2005-05-01~2006-06-01 |
13840-65J00-000 |
from US $5.92 |
||
|
22
|
22
09409-04304-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09409-04304-000 |
from US $1.13 |
||
|
23
|
23
13850-65J00-000 COVER,LAMP SUPPORT HOLE,LJ20A; 2005-05-01~2006-06-01 |
13850-65J00-000 |
US $6.62 |
||
|
24
|
24
09409-04304-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09409-04304-000 |
from US $1.13 |
||
|
25
|
25
11191-65J00-000
Hose,breather
J20A; 2005-05-01~2006-06-01 |
11191-65J00-000 |
— | ||
| replacement | |||||
|
25
|
25
11191-65J01-000 HOSE,BREATHERJ20A; 2005-05-01~2006-06-01 |
11191-65J01-000 |
US $13.17 |
||
|
26
|
26
09401-18404-000 CLIPJ20A; 2005-05-01~2006-06-01 |
09401-18404-000 |
from US $1.33 |
||
|
27
|
27
09409-06322-5PK CLIP(BLACK)Clip (black) ブラック; J20A; 2005-05-01~2006-06-01 |
09409-06322-5PK |
from US $1.58 |
||
