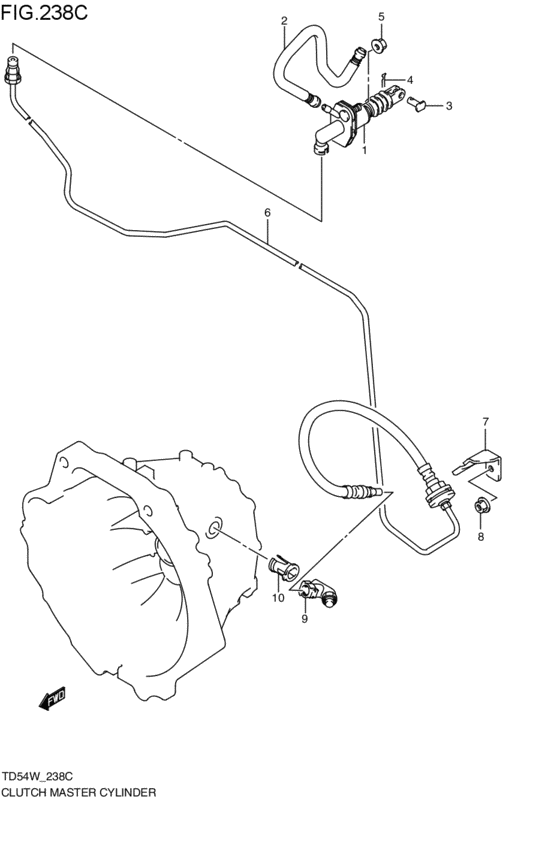

mt - clutch master cylinder (MT; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23810-64J00-000
Cylinder assy,clutch master
MT; 2005-05-01~2006-06-01 |
23810-64J00-000 |
— | ||
| replacement | |||||
|
1
|
1
23810-64J21-000 CYLINDER ASSY,CLUTCH MASTERMT; 2005-05-01~2006-06-01 |
23810-64J21-000 |
US $222.40 |
||
|
2
|
2
23881-64J20-000 HOSE,CLUTCH RESERVOIRMT; 2005-05-01~2006-06-01 |
23881-64J20-000 |
US $35.20 |
||
|
3
|
3
09200-10021-000 PINMT; 2005-05-01~2006-06-01 |
09200-10021-000 |
US $1.28 |
||
|
4
|
4
09385-10006-000 PIN,SNAPPin MT; 2005-05-01~2006-06-01 |
09385-10006-000 |
from US $1.60 |
||
|
5
|
5
08316-10063-000
Nut
MT; 2005-05-01~2006-06-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUTMT; 2005-05-01~2006-06-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
23830-64J22-000 PIPE,CLUTCH OIL NO.1MT; 2005-05-01~2006-06-01 |
23830-64J22-000 |
US $228.80 |
||
|
7
|
7
23871-64J00-000 BRACKET,CLUTCH OIL HOSEMT; 2005-05-01~2006-06-01 |
23871-64J00-000 |
US $4.32 |
||
|
8
|
8
09159-08069-000
Nut
MT; 2005-05-01~2006-06-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
8
|
8
09159-08135-000 NUTMT; 2005-05-01~2006-06-01 |
09159-08135-000 |
US $1.12 |
||
|
9
|
9
23856-64J00-000
ジョイントアッシ,クラッチパイプ
MT; 2005-05-01~2006-06-01 |
23856-64J00-000 |
— | ||
| replacement | |||||
|
9
|
9
23856-64JA0-000 JOINT ASSY,CLUTCH PIPEMT; 2005-05-01~2006-06-01 |
23856-64JA0-000 |
US $22.40 |
||
|
10
|
10
23874-64J00-000 SLEEVE,CLUTCH PIPE JOINTMT; 2005-05-01~2006-06-01 |
23874-64J00-000 |
US $3.84 |
||
