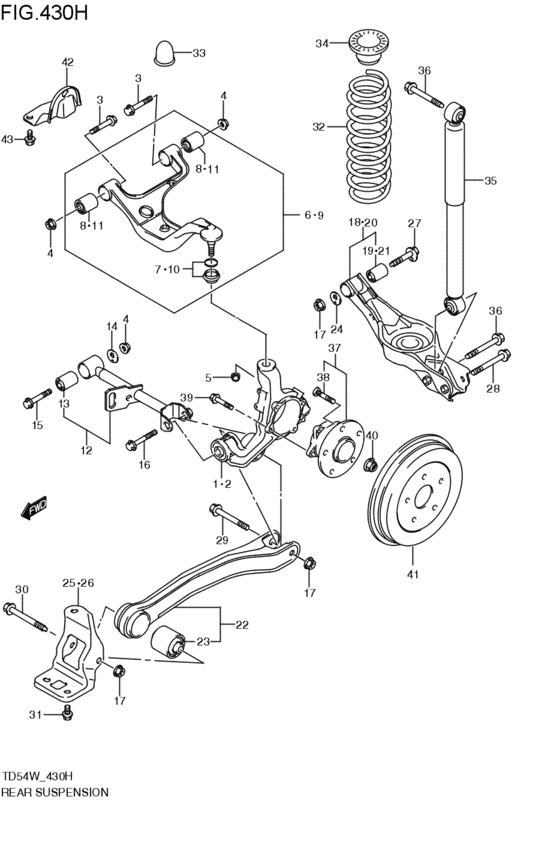

rear suspension (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- MT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46110-65J00-000 KNUCKLE ASSY,RR SPNSN,R2005-05-01~2006-06-01 |
46110-65J00-000 |
from US $220.34 |
||
|
2
|
2
46150-65J00-000 KNUCKLE ASSY,RR SPNSN,L2005-05-01~2006-06-01 |
46150-65J00-000 |
from US $215.39 |
||
|
3
|
3
45215-65J00-000 BOLTRR DIFF MTG FRONT2005-05-01~2006-06-01 |
45215-65J00-000 |
US $9.47 |
||
| replacement | |||||
|
3
|
3
09135-14015-000 BOLT(14X92)2005-05-01~2006-06-01 |
09135-14015-000 |
from US $9.47 |
||
|
4
|
4
45265-65J00-000 NUTSTRUT BRACKET2005-05-01~2006-06-01 |
45265-65J00-000 |
US $3.87 |
||
| replacement | |||||
|
4
|
4
09159-14028-000 NUT2005-05-01~2006-06-01 |
09159-14028-000 |
from US $2.24 |
||
|
5
|
5
45717-65J00-000 NUTBALL JOINT STUD CAULKING2005-05-01~2006-06-01 |
45717-65J00-000 |
US $2 |
||
| replacement | |||||
|
5
|
5
09159-14029-000 NUT2005-05-01~2006-06-01 |
09159-14029-000 |
from US $1.94 |
||
|
6
|
6
46201-65J00-000
ARM ASYRR SPNSN UPPERR
2005-05-01~2006-06-01 |
46201-65J00-000 |
— | ||
| replacement | |||||
|
6
|
6
46201-65J01-000 ARM ASSY,RR SPNSN UPR,R2005-05-01~2006-06-01 |
46201-65J01-000 |
from US $387 |
||
|
7
|
7
45706-60A00-000
SEAL SET,SPNSN ARM
2005-05-01~2006-06-01 |
45706-60A00-000 |
— | ||
| replacements | |||||
|
7
|
7
45706-60A01-000
Seal Set,spnsn Arm
2005-05-01~2006-06-01 |
45706-60A01-000 |
— | ||
|
7
|
7
45700-60810-000 Seal Set,suspension Arm2005-05-01~2006-06-01 |
45700-60810-000 |
from US $23.20 |
||
|
8
|
8
46231-65J00-000 BUSH,RR SPNSN UPPER ARM2005-05-01~2006-06-01 |
46231-65J00-000 |
from US $18.83 |
||
|
9
|
9
46202-65J00-000
ARM ASSYRR SPNSN UPPERL
2005-05-01~2006-06-01 |
46202-65J00-000 |
— | ||
| replacement | |||||
|
9
|
9
46202-65J01-000 ARM ASSY,RR SPNSN UPR,L2005-05-01~2006-06-01 |
46202-65J01-000 |
from US $388.60 |
||
|
10
|
10
45706-60A00-000
SEAL SET,SPNSN ARM
2005-05-01~2006-06-01 |
45706-60A00-000 |
— | ||
| replacements | |||||
|
10
|
10
45706-60A01-000
Seal Set,spnsn Arm
2005-05-01~2006-06-01 |
45706-60A01-000 |
— | ||
|
10
|
10
45700-60810-000 Seal Set,suspension Arm2005-05-01~2006-06-01 |
45700-60810-000 |
from US $23.20 |
||
|
11
|
11
46231-65J00-000 BUSH,RR SPNSN UPPER ARM2005-05-01~2006-06-01 |
46231-65J00-000 |
from US $18.83 |
||
|
12
|
12
46300-65J00-000
ROD ASSYRR SPNSN CONTROL
2005-05-01~2006-06-01 |
46300-65J00-000 |
— | ||
| replacement | |||||
|
12
|
12
46300-65J01-000 ROD ASSY,RR SPNSN CONTROL2005-05-01~2006-06-01 |
46300-65J01-000 |
from US $38.68 |
||
|
13
|
13
46331-65J00-000
BUSH RR SUS CONT ROD GV 2006
2005-05-01~2006-06-01 |
46331-65J00-000 |
— | ||
| replacement | |||||
|
13
|
13
46331-65J01-000 BUSH,RR SPNSN CONT ROD2005-05-01~2006-06-01 |
46331-65J01-000 |
from US $13.16 |
||
|
14
|
14
46333-65J00-000 WASHER,RR SPNSN CONT ROD2005-05-01~2006-06-01 |
46333-65J00-000 |
from US $2.72 |
||
|
15
|
15
46431-65J00-000 BOLT,RR SPNSN CONT ROD INNER2005-05-01~2006-06-01 |
46431-65J00-000 |
from US $12.22 |
||
|
16
|
16
46432-65J00-000 BOLTRR SPNSN CONT ROD OUTER2005-05-01~2006-06-01 |
46432-65J00-000 |
US $8.35 |
||
| replacement | |||||
|
16
|
16
09103-14028-000 BOLT(14X87)2005-05-01~2006-06-01 |
09103-14028-000 |
from US $7 |
||
|
17
|
17
45265-65J00-000 NUTSTRUT BRACKET2005-05-01~2006-06-01 |
45265-65J00-000 |
US $3.87 |
||
| replacement | |||||
|
17
|
17
09159-14028-000 NUT2005-05-01~2006-06-01 |
09159-14028-000 |
from US $2.24 |
||
|
18
|
18
46205-65J00-000
ARM ASSYRR SPNSN LOWERR
2005-05-01~2006-06-01 |
46205-65J00-000 |
— | ||
| replacement | |||||
|
18
|
18
46205-65J01-000 ARM ASSY,RR SPNSN,LWR,R2005-05-01~2006-06-01 |
46205-65J01-000 |
from US $108.11 |
||
|
19
|
19
46122-65J00-000 BUSH,RR SPNSN LATERAL LINK2005-05-01~2006-06-01 |
46122-65J00-000 |
from US $14.90 |
||
|
20
|
20
46207-65J00-000
ARM ASSYRR SPNSN LOWER L
2005-05-01~2006-06-01 |
46207-65J00-000 |
— | ||
| replacement | |||||
|
20
|
20
46207-65J01-000 ARM ASSY,RR SPNSN,LWR,L2005-05-01~2006-06-01 |
46207-65J01-000 |
from US $108.74 |
||
|
21
|
21
46122-65J00-000 BUSH,RR SPNSN LATERAL LINK2005-05-01~2006-06-01 |
46122-65J00-000 |
from US $14.90 |
||
|
22
|
22
46305-65J00-000 ROD ASSY,RR SPNSN TRAILING2005-05-01~2006-06-01 |
46305-65J00-000 |
from US $94.50 |
||
|
23
|
23
46371-65J00-000 BUSH,RR SPNSN TRAILING ROD2005-05-01~2006-06-01 |
46371-65J00-000 |
from US $40.41 |
||
|
24
|
24
46333-65J00-000 WASHER,RR SPNSN CONT ROD2005-05-01~2006-06-01 |
46333-65J00-000 |
from US $2.72 |
||
|
25
|
25
46381-65J00-000 BRACKET,RR TRLG MOUNT,R2005-05-01~2006-06-01 |
46381-65J00-000 |
from US $14.56 |
||
|
26
|
26
46391-65J00-000 BRACKET,RR TRLG MOUNT,L2005-05-01~2006-06-01 |
46391-65J00-000 |
from US $14.94 |
||
|
27
|
27
46431-65J00-000 BOLT,RR SPNSN CONT ROD INNER2005-05-01~2006-06-01 |
46431-65J00-000 |
from US $12.22 |
||
|
28
|
28
46432-65J00-000 BOLTRR SPNSN CONT ROD OUTER2005-05-01~2006-06-01 |
46432-65J00-000 |
US $8.35 |
||
| replacement | |||||
|
28
|
28
09103-14028-000 BOLT(14X87)2005-05-01~2006-06-01 |
09103-14028-000 |
from US $7 |
||
|
29
|
29
46432-65J00-000 BOLTRR SPNSN CONT ROD OUTER2005-05-01~2006-06-01 |
46432-65J00-000 |
US $8.35 |
||
| replacement | |||||
|
29
|
29
09103-14028-000 BOLT(14X87)2005-05-01~2006-06-01 |
09103-14028-000 |
from US $7 |
||
|
30
|
30
46441-65J00-000
ボルト,リヤサスペンション ロッド,フロント
2005-05-01~2006-06-01 |
46441-65J00-000 |
— | ||
| replacement | |||||
|
30
|
30
09103-14030-000 BOLT(14X108)2005-05-01~2006-06-01 |
09103-14030-000 |
from US $7.29 |
||
|
31
|
31
46443-65J00-000
ボルト,リヤサスペンション マウントブラケット
2005-05-01~2006-06-01 |
46443-65J00-000 |
— | ||
| replacements | |||||
|
31
|
31
09103-12105-000 BOLT(12X20)2005-05-01~2006-06-01 |
09103-12105-000 |
US $2.72 |
||
|
31
|
31
09103-12089-000
ボルト,12X26
2005-05-01~2006-06-01 |
09103-12089-000 |
— | ||
|
32
|
32
41311-65J00-000
SPRING,REAR COIL
2005-05-01~2006-06-01 |
41311-65J00-000 |
— | ||
| replacement | |||||
|
32
|
32
41311-65J01-000 SPRING,RR COIL2005-05-01~2006-06-01 |
41311-65J01-000 |
from US $138.24 |
||
|
33
|
33
42150-65J00-000 STOPPER,RR BUMP2005-05-01~2006-06-01 |
42150-65J00-000 |
from US $32.87 |
||
|
34
|
34
41341-65J00-000 SEAT,COIL SPRING RUBBER2005-05-01~2006-06-01 |
41341-65J00-000 |
from US $16.97 |
||
|
35
|
35
41700-65J00-000
ABSORBER ASSY,RR SHOCK
2005-05-01~2006-06-01 |
41700-65J00-000 |
— | ||
| replacement | |||||
|
35
|
35
41700-65J01-000 Absorber Assy,rr Shock2005-05-01~2006-06-01 |
41700-65J01-000 |
from US $175.61 |
||
|
36
|
36
41821-65J00-000 BOLTRR SHOCK ABSORBER2005-05-01~2006-06-01 |
41821-65J00-000 |
US $5.51 |
||
| replacement | |||||
|
36
|
36
09103-12090-000 BOLT(12X55)2005-05-01~2006-06-01 |
09103-12090-000 |
from US $3.04 |
||
|
37
|
37
43401-65J00-000
HUB ASSYWHEEL
2005-05-01~2006-06-01 |
43401-65J00-000 |
— | ||
| replacement | |||||
|
37
|
37
43402-57L51-000 HUB ASSY,WHL2005-05-01~2006-06-01 |
43402-57L51-000 |
from US $308.66 |
||
|
38
|
38
09119-12012-000 BOLT(12X38)2005-05-01~2006-06-01 |
09119-12012-000 |
from US $1.13 |
||
|
39
|
39
43458-65J00-000 BOLTWHEEL HUB HOUSING2005-05-01~2006-06-01 |
43458-65J00-000 |
US $2.72 |
||
| replacement | |||||
|
39
|
39
09103-10404-000 BOLT(10X50)2005-05-01~2006-06-01 |
09103-10404-000 |
from US $2.88 |
||
|
40
|
40
43459-65J00-000 NUT,FR AXLE2005-05-01~2006-06-01 |
43459-65J00-000 |
from US $6.21 |
||
|
41
|
41
43511-65J00-000 DRUM,RR BRAKE2005-05-01~2006-06-01 |
43511-65J00-000 |
from US $152.93 |
||
|
42
|
42
75541-65J00-000 STOPPER,REAR BUMP2005-05-01~2006-06-01 |
75541-65J00-000 |
from US $9.36 |
||
|
43
|
43
01551-12253-000
ボルト
2005-05-01~2006-06-01 |
01551-12253-000 |
— | ||
| replacement | |||||
|
43
|
43
01551-1225A-000 Bolt2005-05-01~2006-06-01 |
01551-1225A-000 |
US $1.28 |
||
