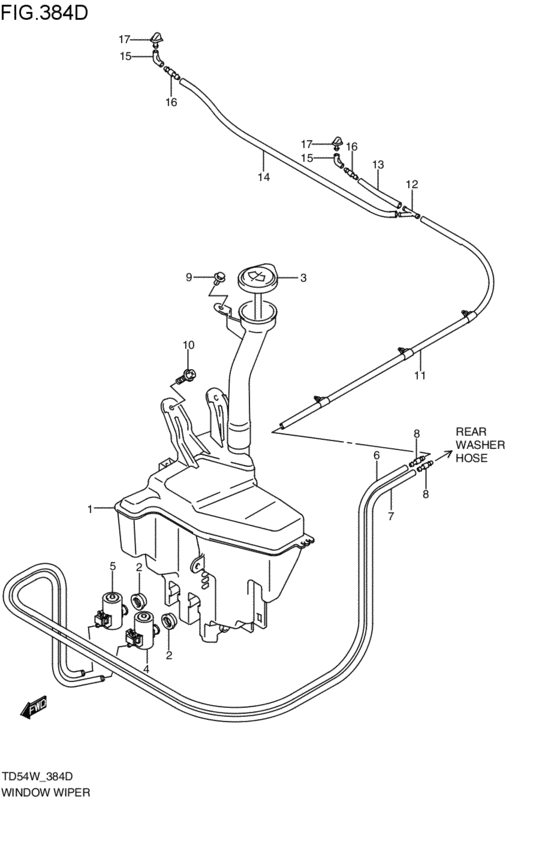

ウインドウオッシャ (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 2AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38450-65J00-000 TANK ASSY,WASHER2005-05-01~2006-06-01 |
38450-65J00-000 |
from US $47.61 |
||
|
2
|
2
38453-65J00-000 GROMMET2005-05-01~2006-06-01 |
38453-65J00-000 |
from US $2.56 |
||
|
3
|
3
38452-65J00-000 CAP,WASHER TANK2005-05-01~2006-06-01 |
38452-65J00-000 |
from US $7.45 |
||
|
4
|
4
38410-65J00-000 PUMP ASSY,WASHERフロント; 2005-05-01~2006-06-01 |
38410-65J00-000 |
from US $71.55 |
||
|
5
|
5
38410-65J10-000 PUMP ASSY,WASHERリヤ; 2005-05-01~2006-06-01 |
38410-65J10-000 |
from US $65.77 |
||
|
6
|
6
38491-66J00-000 HOSE,WASHER L:2000フロント,L:2000>580; 2005-05-01~2006-06-01 |
38491-66J00-000 |
from US $12.76 |
||
|
7
|
7
38491-66J00-000 HOSE,WASHER L:2000リヤ,L:2000.570; 2005-05-01~2006-06-01 |
38491-66J00-000 |
from US $12.76 |
||
|
8
|
8
38496-56B00-000 CONNECTOR2005-05-01~2006-06-01 |
38496-56B00-000 |
from US $1.60 |
||
|
9
|
9
09409-07332-000 CLIP2005-05-01~2006-06-01 |
09409-07332-000 |
from US $1.26 |
||
|
10
|
10
02162-06123-000
Bolt (6x12)
2005-05-01~2006-06-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02162-0612B-000 SCREWBolt 2005-05-01~2006-06-01 |
02162-0612B-000 |
from US $0.80 |
||
|
10
|
10
02162-0612A-000 SCREWBolt, bracket 2005-05-01~2006-06-01 |
02162-0612A-000 |
from US $0.80 |
||
|
11
|
11
38491-66J10-000 HOSE,FR WASHER2005-05-01~2006-06-01 |
38491-66J10-000 |
US $24 |
||
|
12
|
12
38496-60G00-000 JOINT,3WAY2005-05-01~2006-06-01 |
38496-60G00-000 |
US $2.43 |
||
|
13
|
13
38491-66J00-000 HOSE,WASHER L:2000L:2000>70; 2005-05-01~2006-06-01 |
38491-66J00-000 |
from US $12.76 |
||
|
14
|
14
38491-66J00-000 HOSE,WASHER L:2000L:2000>730; 2005-05-01~2006-06-01 |
38491-66J00-000 |
from US $12.76 |
||
|
15
|
15
38496-67H00-000 JOINT,ELBOW2005-05-01~2006-06-01 |
38496-67H00-000 |
from US $2.88 |
||
|
16
|
16
38496-61A00-000 VALVE,CHECK2005-05-01~2006-06-01 |
38496-61A00-000 |
from US $1.71 |
||
|
17
|
17
38480-65J00-000 NOZZLE,WASHER2005-05-01~2006-06-01 |
38480-65J00-000 |
from US $10.76 |
||
