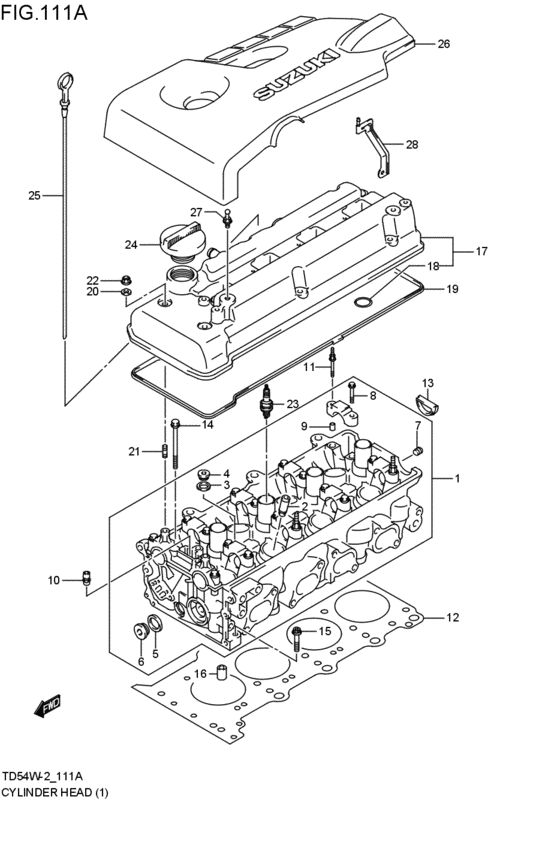

Cylinder head (J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-65J01-000 HEAD ASSY,CYLINDERJ20A; 2006-06-01~ |
11100-65J01-000 |
US $2,880 |
||
|
2
|
2
11115-65J00-001 GUIDE,VALVEJ20A; 2006-06-01~ |
11115-65J00-001 |
from US $19.32 |
||
|
3
|
3
11216-77E00-000 GASKET,M18 PLUGJ20A; 2006-06-01~ |
11216-77E00-000 |
US $1.74 |
||
|
4
|
4
09248-18011-000 PLUG(18X8)Plug, oil gallery J20A; 2006-06-01~ |
09248-18011-000 |
from US $4.96 |
||
|
5
|
5
11217-85FA0-000 GASKET,M26 PLUGJ20A; 2006-06-01~ |
11217-85FA0-000 |
from US $2.40 |
||
|
6
|
6
09248-26001-000 PLUG,M26J20A; 2006-06-01~ |
09248-26001-000 |
from US $7.36 |
||
|
7
|
7
09246-05006-000 PLUG(1/8PT,H:5.5)J20A; 2006-06-01~ |
09246-05006-000 |
from US $1.76 |
||
|
8
|
8
09103-06132-000 BOLT(6X41)J20A; 2006-06-01~ |
09103-06132-000 |
US $1.28 |
||
|
9
|
9
09206-08001-000 PIN(8X11)J20A; 2006-06-01~ |
09206-08001-000 |
from US $1.60 |
||
|
10
|
10
11130-85FA1-000 VALVE,OIL RELIEFJ20A; 2006-06-01~ |
11130-85FA1-000 |
US $31.20 |
||
|
11
|
11
11148-85FA0-000 BOLT,CAMSHAFT HOUSING STUDJ20A; 2006-06-01~ |
11148-85FA0-000 |
US $8.64 |
||
|
12
|
12
11141-77E02-000 GASKET, CYLINDER HEADJ20A; 2006-06-01~ |
11141-77E02-000 |
US $169.60 |
||
|
13
|
13
11139-86500-000 SEAL,CYLINDER HEAD SIDEJ20A; 2006-06-01~ |
11139-86500-000 |
US $1.82 |
||
|
14
|
14
11146-85FA1-000 BOLT,CYLINDER HEADJ20A; 2006-06-01~ |
11146-85FA1-000 |
US $9.44 |
||
|
15
|
15
07120-0640A-000 BoltJ20A; 2006-06-01~ |
07120-0640A-000 |
from US $4.17 |
||
|
16
|
16
09206-14004-000 PIN(14X11.4X23)J20A; 2006-06-01~ |
09206-14004-000 |
US $27.20 |
||
|
17
|
17
11170-65J01-000 Cover,cylinder headJ20A; 2006-06-01~ |
11170-65J01-000 |
US $419.20 |
||
|
18
|
18
11179-81402-000 O-RINGJ20A; 2006-06-01~ |
11179-81402-000 |
from US $1.82 |
||
|
19
|
19
11189-65J00-000 GASKET,CYL HEAD COVERJ20A; 2006-06-01~ |
11189-65J00-000 |
US $39.52 |
||
|
20
|
20
11188-85FA0-000 WASHER,CYL HEAD COVER SEALJ20A; 2006-06-01~ |
11188-85FA0-000 |
US $2.13 |
||
|
21
|
21
01421-0616A-000 BOLT,STUDJ20A; 2006-06-01~ |
01421-0616A-000 |
from US $1.07 |
||
|
22
|
22
08313-2006A-000 NUTJ20A; 2006-06-01~ |
08313-2006A-000 |
from US $3.11 |
||
|
23
|
23
09482-00549-000 SPARK PLUG (NGK IFR5J11)NGK; J20A; 2006-06-01~ |
09482-00549-000 |
US $27.20 |
||
|
24
|
24
16920-83G10-000
Cap comp,oil filler
J20A; 2006-06-01~ |
16920-83G10-000 |
— | ||
| replacements | |||||
|
24
|
24
16920-83G00-000
Cap,oil filler
J20A; 2006-06-01~ |
16920-83G00-000 |
— | ||
|
24
|
24
16920-83G01-000
CAP OIL FILLER
J20A; 2006-06-01~ |
16920-83G01-000 |
— | ||
|
25
|
25
16910-80J00-000 GAUGE,OIL LEVELJ20A; 2006-06-01~ |
16910-80J00-000 |
US $13.87 |
||
|
26
|
26
13170-65J00-000 COVER,ENGINEJ20A; 2006-06-01~ |
13170-65J00-000 |
US $66.24 |
||
|
27
|
27
13176-67J00-000 BOLT,ENG COVERJ20A; 2006-06-01~ |
13176-67J00-000 |
US $4.42 |
||
|
28
|
28
13175-65J00-000 BRACKET,ENG COVERJ20A; 2006-06-01~ |
13175-65J00-000 |
US $15.93 |
||
