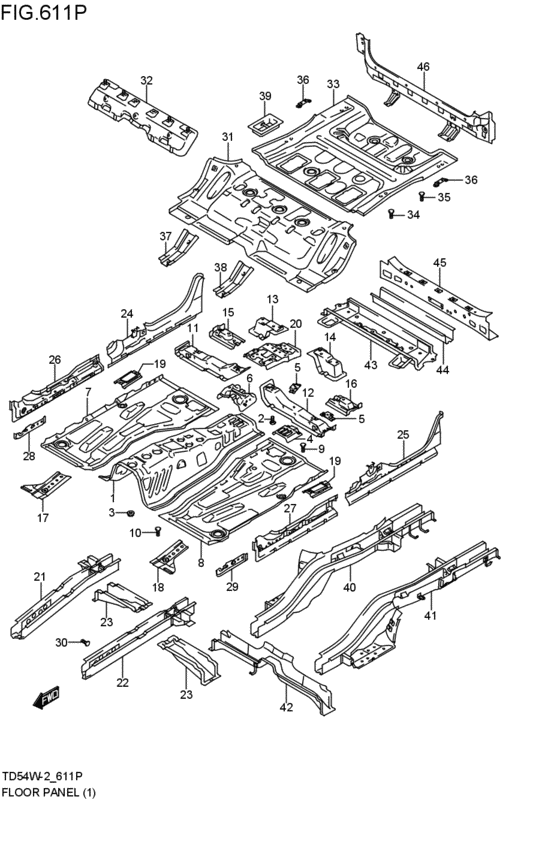

floor panel (5DR; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61111-65J00-000
PANEL,MAIN FLOOR TUNNEL
5DR; 2006-06-01~ |
61111-65J00-000 |
— | ||
|
2
|
2
09119-05018-000 BOLT(8X35)5DR; 2006-06-01~ |
09119-05018-000 |
US $9.60 |
||
|
3
|
3
08316-1008A-000 NUTNut, idle gear shaft 5DR; 2006-06-01~ |
08316-1008A-000 |
from US $0.76 |
||
|
4
|
4
61112-65J00-000 PATCH,MAIN FLOOR TUNNEL5DR; 2006-06-01~ |
61112-65J00-000 |
US $29.26 |
||
|
5
|
5
61114-65J00-000 BRACKET,SUB WOOFER5DR; 2006-06-01~ |
61114-65J00-000 |
US $18.77 |
||
|
6
|
6
61115-65J00-000 BRACKET,CONSOLE5DR; 2006-06-01~ |
61115-65J00-000 |
US $39.38 |
||
|
7
|
7
61121-65J03-000 PANEL,MAIN FLOOR SIDE,R5DR; 2006-06-01~ |
61121-65J03-000 |
US $272.32 |
||
|
8
|
8
61131-65J13-000 PANEL,MAIN FLOOR SIDE,L5DR; 2006-06-01~ |
61131-65J13-000 |
US $272.32 |
||
|
9
|
9
09119-05018-000 BOLT(8X35)5DR; 2006-06-01~ |
09119-05018-000 |
US $9.60 |
||
|
10
|
10
09119-06085-000 BOLT(6X20)5DR; 2006-06-01~ |
09119-06085-000 |
US $11.40 |
||
|
11
|
11
61141-65J01-000 MEMBER,FR SEAT FR,R5DR; 2006-06-01~ |
61141-65J01-000 |
US $78.75 |
||
|
12
|
12
61151-65J01-000 MEMBER,FR SEAT FR,L5DR; 2006-06-01~ |
61151-65J01-000 |
US $84.64 |
||
|
13
|
13
61160-65J00-000 BRACKET,FR SEAT CTR,R5DR; 2006-06-01~ |
61160-65J00-000 |
US $62.93 |
||
|
14
|
14
61170-65J00-000 BRACKET,FR SEAT CTR,L5DR; 2006-06-01~ |
61170-65J00-000 |
US $62.93 |
||
|
15
|
15
61171-65J00-000 BRACKET,FR SEAT RR OUTSIDE,R5DR; 2006-06-01~ |
61171-65J00-000 |
US $35.88 |
||
|
16
|
16
61172-65J00-000 BRACKET,FR SEAT RR OUTSIDE,L5DR; 2006-06-01~ |
61172-65J00-000 |
US $34.41 |
||
|
17
|
17
61181-65J01-000 REINFORCEMENT,FL SIDE MEMBER,R5DR; 2006-06-01~ |
61181-65J01-000 |
US $35.88 |
||
|
18
|
18
61182-65J01-000 REINFORCEMENT,FL SIDE MEMBER,L5DR; 2006-06-01~ |
61182-65J01-000 |
US $35.88 |
||
|
19
|
19
61183-65J00-000 PATCH,MAIN FLOOR5DR; 2006-06-01~ |
61183-65J00-000 |
US $16.16 |
||
|
20
|
20
61190-65J00-000
BRACKET,PARKING BRAKE
5DR; 2006-06-01~ |
61190-65J00-000 |
— | ||
|
21
|
21
61210-65J02-000
MEMBER,SIDE FRAME,R
5DR; 2006-06-01~ |
61210-65J02-000 |
— | ||
|
22
|
22
61710-65J02-000
MEMBER,SIDE FRAME,L
5DR; 2006-06-01~ |
61710-65J02-000 |
— | ||
|
23
|
23
61221-65J00-000 MEMBER,FR SEAT RR SIDE5DR; 2006-06-01~ |
61221-65J00-000 |
US $120.34 |
||
|
24
|
24
61310-65J01-000
Panel,side sill inr rr,r
5DR; 2006-06-01~ |
61310-65J01-000 |
— | ||
| replacement | |||||
|
24
|
24
61310-65J10-000 PANEL,SIDE SILL INNER RR,R5DR; 2006-06-01~ |
61310-65J10-000 |
US $73.97 |
||
|
25
|
25
61320-65J01-000
パネル,サイドシルインナリヤ,レフト
5DR; 2006-06-01~ |
61320-65J01-000 |
— | ||
| replacement | |||||
|
25
|
25
61320-65J10-000 PANEL,SIDE SILL INNER RR,L5DR; 2006-06-01~ |
61320-65J10-000 |
US $73.97 |
||
|
26
|
26
61311-65J01-000 PANEL,SIDE SILL INNER,R5DR; 2006-06-01~ |
61311-65J01-000 |
US $151.62 |
||
|
27
|
27
61321-65J01-000 PANEL,SIDE SILL INNER,L5DR; 2006-06-01~ |
61321-65J01-000 |
US $151.62 |
||
|
28
|
28
61313-65J01-000 REINF,SIDE SILL INR FR,R5DR; 2006-06-01~ |
61313-65J01-000 |
US $31.28 |
||
|
29
|
29
61323-65J01-000 REINF,SIDE SILL INR FR,L5DR; 2006-06-01~ |
61323-65J01-000 |
US $31.28 |
||
|
30
|
30
09119-05018-000 BOLT(8X35)5DR; 2006-06-01~ |
09119-05018-000 |
US $9.60 |
||
|
31
|
31
61511-65J00-000
パネル,リヤフロア,フロント
5DR; 2006-06-01~ |
61511-65J00-000 |
— | ||
| replacement | |||||
|
31
|
31
61511-65J01-000 PANEL,REAR FLOOR FR5DR; 2006-06-01~ |
61511-65J01-000 |
US $277.84 |
||
|
32
|
32
61512-65J00-000 CROSSMEMBER,RR FL FR5DR; 2006-06-01~ |
61512-65J00-000 |
US $86.11 |
||
|
33
|
33
61521-65J00-000 PANEL,REAR FLOOR RR5DR; 2006-06-01~ |
61521-65J00-000 |
US $404.80 |
||
|
34
|
34
09119-05018-000 BOLT(8X35)5DR; 2006-06-01~ |
09119-05018-000 |
US $9.60 |
||
|
35
|
35
09119-06085-000 BOLT(6X20)5DR; 2006-06-01~ |
09119-06085-000 |
US $11.40 |
||
|
36
|
36
61522-65J00-000 REINFORCEMENT,LUGGAGE HOOK5DR; 2006-06-01~ |
61522-65J00-000 |
US $7.62 |
||
|
37
|
37
61531-65J00-000 REINFORCEMENT,RR FL SIDE MBR,R5DR; 2006-06-01~ |
61531-65J00-000 |
US $87.20 |
||
|
38
|
38
61532-65J00-000 REINFORCEMENT,RR FL SIDE MBR,L5DR; 2006-06-01~ |
61532-65J00-000 |
US $87.20 |
||
|
39
|
39
61540-65J00-000 STRIKER,RR SEAT LOCK5DR; 2006-06-01~ |
61540-65J00-000 |
US $21.34 |
||
|
40
|
40
62100-65J01-000
メンバ,リヤフロアサイド,ライト
5DR; 2006-06-01~ |
62100-65J01-000 |
— | ||
| replacement | |||||
|
40
|
40
62100-65JV0-000 MEMBER,RR FL SIDE,R5DR; 2006-06-01~ |
62100-65JV0-000 |
US $411.84 |
||
|
41
|
41
62300-65J01-000
メンバ,リヤフロアサイド,レフト
5DR; 2006-06-01~ |
62300-65J01-000 |
— | ||
| replacement | |||||
|
41
|
41
62300-65JV0-000 MEMBER,RR FL SIDE,L5DR; 2006-06-01~ |
62300-65JV0-000 |
US $411.84 |
||
|
42
|
42
62610-65J00-000
クロスメンバ,リヤフロア,NO.1
5DR; 2006-06-01~ |
62610-65J00-000 |
— | ||
| replacement | |||||
|
42
|
42
62610-77K00-000 CROSSMEMBER,RR FL NO.15DR; 2006-06-01~ |
62610-77K00-000 |
US $217.60 |
||
|
43
|
43
62710-65J00-000
クロスメンバ,リヤフロア,NO.2
5DR; 2006-06-01~ |
62710-65J00-000 |
— | ||
| replacement | |||||
|
43
|
43
62710-65J01-000 CROSSMEMBER,RR FLR NO.25DR; 2006-06-01~ |
62710-65J01-000 |
US $172.96 |
||
|
44
|
44
62811-65J00-000 CROSSMEMBER,RR FLR NO.35DR; 2006-06-01~ |
62811-65J00-000 |
US $65.87 |
||
|
45
|
45
62911-65J00-000 CROSSMEMBER,RR FLR NO.45DR; 2006-06-01~ |
62911-65J00-000 |
US $131.74 |
||
|
46
|
46
65510-65J00-000 PANEL,BACK5DR; 2006-06-01~2007-01-01 |
65510-65J00-000 |
US $172.22 |
||
|
46
|
46
65510-65J10-000
パネル,バック
5DR; 2007-01-01~ |
65510-65J10-000 |
— | ||
| replacement | |||||
|
46
|
46
65510-65J11-000 PANEL,BACK5DR; 2007-01-01~ |
65510-65J11-000 |
US $172.22 |
||
