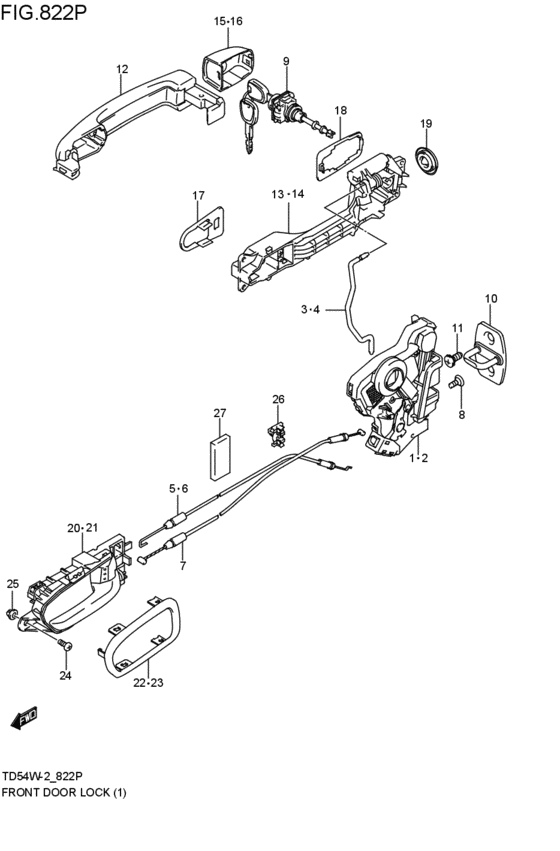

front door lock (5DR; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82210-65J11-000
Latch,front door,r
5DR; 2006-06-01~ |
82210-65J11-000 |
— | ||
| replacement | |||||
|
1
|
1
82210-65J15-000 LATCH,FR DR,R5DR; 2006-06-01~ |
82210-65J15-000 |
US $280 |
||
|
2
|
2
82250-65J51-000
Latch,front door,l
5DR; 2006-06-01~ |
82250-65J51-000 |
— | ||
| replacement | |||||
|
2
|
2
82250-65J55-000 LATCH,FR DR,L5DR; 2006-06-01~ |
82250-65J55-000 |
US $200.64 |
||
|
3
|
3
82221-65J00-000 ROD,R5DR; 2006-06-01~ |
82221-65J00-000 |
US $8.72 |
||
|
4
|
4
82261-65J00-000 ROD,L5DR; 2006-06-01~ |
82261-65J00-000 |
US $8.72 |
||
|
5
|
5
82224-65J00-000 CABLE,R5DR; 2006-06-01~ |
82224-65J00-000 |
US $12.14 |
||
|
6
|
6
82264-65J00-000 CABLE,L5DR; 2006-06-01~ |
82264-65J00-000 |
US $12.14 |
||
|
7
|
7
82223-65J00-000 CABLE5DR; 2006-06-01~ |
82223-65J00-000 |
US $10.12 |
||
|
8
|
8
09137-06028-000 SCREW(6X18)5DR; 2006-06-01~ |
09137-06028-000 |
US $14.40 |
||
|
9
|
9
82270-65820-000 CYLINDER,FR DR LATCH,R5DR; 2006-06-01~ |
82270-65820-000 |
US $58.88 |
||
|
10
|
10
82610-65J00-000 STRIKER,DOOR LATCH5DR; 2006-06-01~ |
82610-65J00-000 |
US $12.14 |
||
|
11
|
11
09137-08004-000 SCREW(8X18)5DR; 2006-06-01~ |
09137-08004-000 |
from US $0.90 |
||
| replacement | |||||
|
11
|
11
09137-08011-000 SCREW(8X18)5DR; 2006-06-01~ |
09137-08011-000 |
US $1.44 |
||
|
12
|
12
82810-63811-ZDK HANDLE,SIDE DOOR OUTベ-ジユ; 5DR:(XG,XS); 2006-06-01~ |
82810-63811-ZDK |
US $151.25 |
||
|
12
|
12
82810-63811-ZDL HANDLE,SIDE DOOR OUTグレ-; 5DR:(XG,XGS,XGC,XS); 2006-06-01~ |
82810-63811-ZDL |
US $151.25 |
||
|
12
|
12
82810-63811-ZJ3 HANDLE,SIDE DOOR OUTブラック; 5DR:(XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82810-63811-ZJ3 |
US $151.25 |
||
|
12
|
12
82810-63811-Z2S HANDLE,SIDE DOOR OUTシルバ-; 5DR:(XG,XGS,XGD,XS); 2006-06-01~ |
82810-63811-Z2S |
US $151.25 |
||
|
12
|
12
82810-63811-Z7T HANDLE,SIDE DOOR OUTホワイト; 5DR:(XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82810-63811-Z7T |
US $151.25 |
||
|
13
|
13
82811-63J10-000 FRAME,FR DOOR OUT,R5DR:(XG,XGS,XGB,XGC,XGD,XS,XSB); 2006-06-01~ |
82811-63J10-000 |
US $31.65 |
||
|
14
|
14
82821-63J10-000 FRAME,FR DOOR OUT,L5DR:(XG,XGS,XGB,XGC,XGD,XS,XSB); 2006-06-01~ |
82821-63J10-000 |
US $31.65 |
||
|
15
|
15
82813-63J00-ZDK CAP,FR DR OUTライト,ベ-ジユ; 5DR:(XG,XS); 2006-06-01~ |
82813-63J00-ZDK |
US $15.16 |
||
|
15
|
15
82813-63J00-ZDL CAP,FR DR OUTライト,グレー; 5DR:(XE,XG,XGS,XGC,XS); 2006-06-01~ |
82813-63J00-ZDL |
US $15.16 |
||
|
15
|
15
82813-63J00-ZJ3 CAP,FR DR OUTライト,ブラック; 5DR:(XE,XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82813-63J00-ZJ3 |
US $15.16 |
||
|
15
|
15
82813-63J00-Z2S CAP,FR DR OUTライト,シルバ-; 5DR:(XE,XG,XGS,XGD,XS); 2006-06-01~ |
82813-63J00-Z2S |
US $15.16 |
||
|
15
|
15
82813-63J00-Z7T CAP,FR DR OUTライト,ホワイト; 5DR:(XE,XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82813-63J00-Z7T |
US $15.16 |
||
|
16
|
16
82813-63J10-ZDL CAP,FR DR OUTレフト,グレ-; 5DR:(XE,XG,XGS,XGC,XS); 2006-06-01~ |
82813-63J10-ZDL |
US $17.22 |
||
|
16
|
16
82813-63J10-ZJ3 CAP,FR DR OUTレフト,ブラック; 5DR:(XE,XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82813-63J10-ZJ3 |
US $17.22 |
||
|
16
|
16
82813-63J10-Z2S CAP,FR DR OUTレフト,シルバ-; 5DR:(XE,XG,XGS,XGD,XS); 2006-06-01~ |
82813-63J10-Z2S |
US $17.22 |
||
|
16
|
16
82813-63J10-Z7T CAP,FR DR OUTレフト,ホワイト; 5DR:(XE,XG,XGS,XGC,XGD,XS); 2006-06-01~ |
82813-63J10-Z7T |
US $17.22 |
||
|
16
|
16
82813-63J10-ZDK CAP,FR DR OUTレフト,ベ-ジユ; 5DR:(XG,XS); 2006-06-01~ |
82813-63J10-ZDK |
US $17.22 |
||
|
17
|
17
82814-63J00-000 PAD,FRONT DOOR OUT5DR; 2006-06-01~ |
82814-63J00-000 |
from US $1.52 |
||
|
18
|
18
82815-63J00-000 CUSHION,SIDE DR OUT5DR; 2006-06-01~ |
82815-63J00-000 |
from US $1.60 |
||
|
19
|
19
09250-25007-000 CAP(OD:25.0)5DR; 2006-06-01~ |
09250-25007-000 |
from US $0.97 |
||
|
20
|
20
83110-65J20-C48 HANDLE,SIDE DOOR INSIDE,Rクローム/ブラック; 5DR; 2006-06-01~ |
83110-65J20-C48 |
US $41.22 |
||
|
21
|
21
83130-65J20-C48 HANDLE,SIDE DOOR INSIDE,Lクローム/ブラック; 5DR; 2006-06-01~ |
83130-65J20-C48 |
US $41.22 |
||
|
22
|
22
83178-65J00-5PK BEZEL,DR INSIDE HDL,Rブラック; 5DR; 2006-06-01~ |
83178-65J00-5PK |
US $17.66 |
||
|
23
|
23
83179-65J00-5PK BEZEL,DR INSIDE HDL,Lブラック; 5DR; 2006-06-01~ |
83179-65J00-5PK |
US $17.66 |
||
|
24
|
24
03241-0616A-000 SCREW5DR; 2006-06-01~ |
03241-0616A-000 |
US $7.70 |
||
|
25
|
25
09148-06007-000 NUT5DR; 2006-06-01~ |
09148-06007-000 |
from US $0.86 |
||
|
26
|
26
83271-60D00-000 CLIP5DR; 2006-06-01~ |
83271-60D00-000 |
US $2.47 |
||
|
27
|
27
77591-75000-000 PAD5DR; 2006-06-01~ |
77591-75000-000 |
US $2.28 |
||
