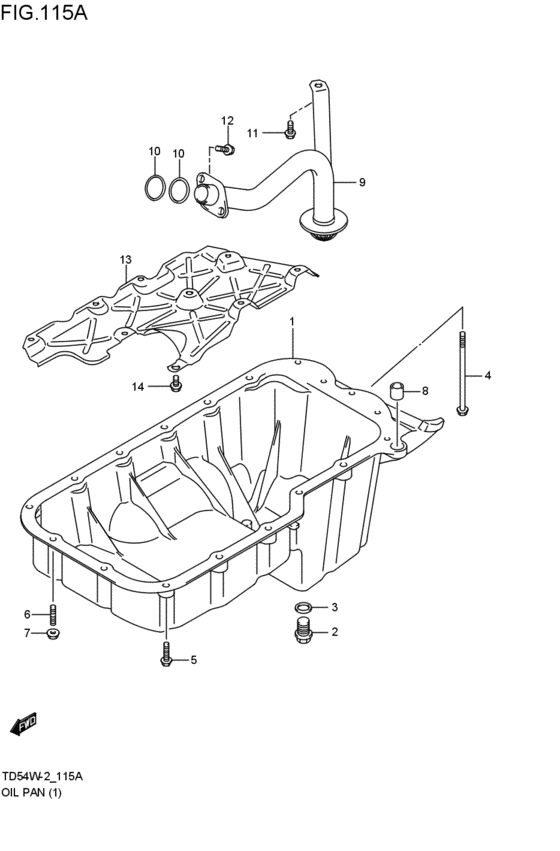

oil pan (J20A; 2006-06-01~) Diagram Suzuki ESCUDO
- Year
- 2006 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- XG
- number of the gears
- 4AT
- air bag
- 2AB
- esp
- NESP
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11511-65J01-000 PAN,OILJ20A; 2006-06-01~ |
11511-65J01-000 |
US $252.08 |
||
|
2
|
2
11518-63J01-000 PLUG,OIL DRAINJ20A; 2006-06-01~ |
11518-63J01-000 |
US $2.56 |
||
|
3
|
3
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union J20A; 2006-06-01~ |
09168-14015-000 |
from US $1.37 |
||
|
4
|
4
09103-06167-000 BOLT(6X115)Bolt (l:115) J20A; 2006-06-01~ |
09103-06167-000 |
from US $2.13 |
||
|
5
|
5
01550-0625A-000 BOLTBolt J20A; 2006-06-01~ |
01550-0625A-000 |
from US $0.96 |
||
|
6
|
6
01421-0620A-000 BOLT,STUDJ20A; 2006-06-01~ |
01421-0620A-000 |
from US $1.12 |
||
|
7
|
7
09159-06077-000 NUTJ20A; 2006-06-01~ |
09159-06077-000 |
US $1.28 |
||
|
8
|
8
04211-13149-000 PINJ20A; 2006-06-01~ |
04211-13149-000 |
from US $1.28 |
||
|
9
|
9
16520-65J00-000 STRAINER,OIL PUMPJ20A; 2006-06-01~ |
16520-65J00-000 |
US $45.63 |
||
|
10
|
10
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) J20A; 2006-06-01~ |
09280-22020-000 |
from US $1.60 |
||
|
11
|
11
01550-0616A-000 BOLTJ20A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
01550-0616A-000 BOLTJ20A; 2006-06-01~ |
01550-0616A-000 |
from US $0.76 |
||
|
13
|
13
16171-59J01-000 PLATE,OIL PUMP BAFFLEJ20A; 2006-06-01~ |
16171-59J01-000 |
US $9.90 |
||
|
14
|
14
01550-0612A-000 BOLTJ20A; 2006-06-01~ |
01550-0612A-000 |
from US $0.76 |
