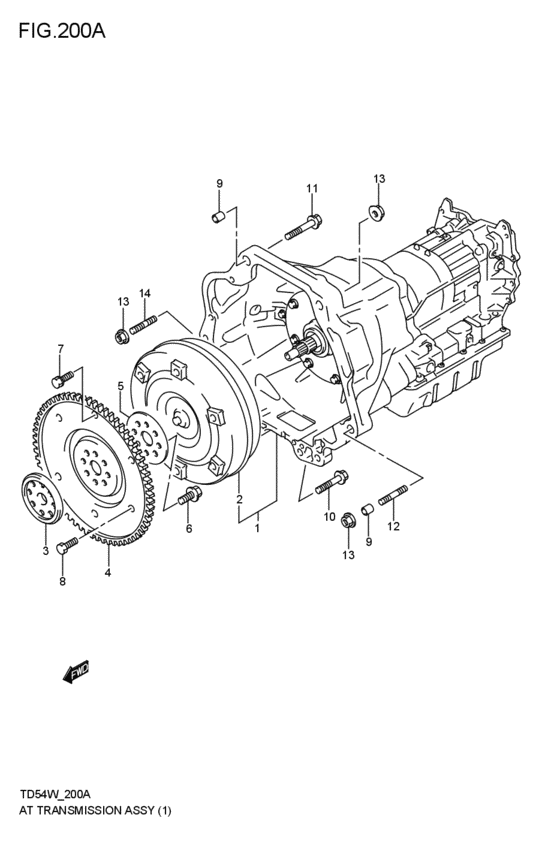

at - transmission assy (AT:J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21000-65J10-000
トランスミッションアッシ,オートマチック
AT:J20A; 2005-05-01~2006-06-01 |
21000-65J10-000 |
— | ||
| replacement | |||||
|
1
|
1
21000-65J12-000 T/M ASSY,AUTOMATICAT:J20A; 2005-05-01~2006-06-01 |
21000-65J12-000 |
US $5,544 |
||
|
1
|
1
21000-65J10-111
トランスミッションアッシ,オートマチック(リビルト)
リビルト; AT:J20A; 2005-05-01~2006-06-01 |
21000-65J10-111 |
— | ||
| replacement | |||||
|
1
|
1
21000-65J12-111
トランスミッションアッシ,オートマチック
リビルト; AT:J20A; 2005-05-01~2006-06-01 |
21000-65J12-111 |
— | ||
|
2
|
2
22700-65J10-000
コンバータ,トルク
AT:J20A; 2005-05-01~2006-06-01 |
22700-65J10-000 |
— | ||
| replacement | |||||
|
2
|
2
22700-65J11-000 CONVERTER,TORQUEAT:J20A; 2005-05-01~2006-06-01 |
22700-65J11-000 |
US $1,884.80 |
||
|
3
|
3
22611-85FA0-000 FLANGE,T/C DRIVE PLATE FRAT:J20A; 2005-05-01~2006-06-01 |
22611-85FA0-000 |
US $31.20 |
||
|
4
|
4
22620-77EB1-000 PLATE,TC DRIVEAT:J20A; 2005-05-01~2006-06-01 |
22620-77EB1-000 |
US $273.60 |
||
|
5
|
5
22631-85FA0-000 FLANGE,T/C DRIVE PLATE RRAT:J20A; 2005-05-01~2006-06-01 |
22631-85FA0-000 |
US $25.60 |
||
|
6
|
6
09103-10282-000 BOLT(10X18.5)AT:J20A; 2005-05-01~2006-06-01 |
09103-10282-000 |
US $2.08 |
||
|
7
|
7
09103-10286-000 BOLT(10X12)AT:J20A; 2005-05-01~2006-06-01 |
09103-10286-000 |
US $19.10 |
||
|
8
|
8
09103-10340-000 BOLT(10X12)AT:J20A; 2005-05-01~2006-06-01 |
09103-10340-000 |
US $15.10 |
||
|
9
|
9
09206-15001-000 PIN(12.4X15X17)AT:J20A; 2005-05-01~2006-06-01 |
09206-15001-000 |
US $1.92 |
||
|
10
|
10
01550-12653-000
ボルト
AT:J20A; 2005-05-01~2006-06-01 |
01550-12653-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-1265B-000 BoltAT:J20A; 2005-05-01~2006-06-01 |
01550-1265B-000 |
US $1.76 |
||
|
11
|
11
01550-12753-000
ボルト
AT:J20A; 2005-05-01~2006-06-01 |
01550-12753-000 |
— | ||
| replacement | |||||
|
11
|
11
01550-1275A-000 BOLTAT:J20A; 2005-05-01~2006-06-01 |
01550-1275A-000 |
US $1.92 |
||
|
12
|
12
09108-12007-000
Bolt,stud
AT:J20A; 2005-05-01~2006-06-01 |
09108-12007-000 |
— | ||
| replacement | |||||
|
12
|
12
09108-12012-000 BOLT,STUDAT:J20A; 2005-05-01~2006-06-01 |
09108-12012-000 |
US $2.72 |
||
|
13
|
13
08316-10123-000
Nut
AT:J20A; 2005-05-01~2006-06-01 |
08316-10123-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1012A-000 NUTAT:J20A; 2005-05-01~2006-06-01 |
08316-1012A-000 |
from US $0.96 |
||
|
14
|
14
09108-12006-000 BOLT,STUDAT:J20A; 2005-05-01~2006-06-01 |
09108-12006-000 |
US $28 |
||
