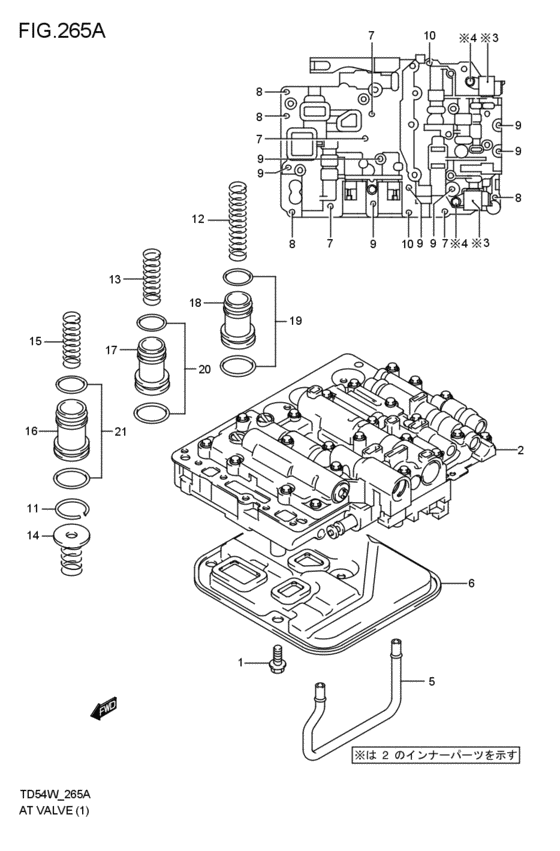

at - valve (AT:J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26449-65G00-000
ボルト,バルブボディトランスミッションケース
AT:J20A; 2005-05-01~2006-06-01 |
26449-65G00-000 |
— | ||
| replacement | |||||
|
1
|
1
26449-65G10-000 BoltAT:J20A; 2005-05-01~2006-06-01 |
26449-65G10-000 |
from US $1.13 |
||
|
2
|
2
26500-65J10-000
BODY ASSYCONTROL VALVE WSO
AT:J20A; 2005-05-01~2006-06-01 |
26500-65J10-000 |
— | ||
| replacement | |||||
|
2
|
2
26500-65J11-000 BODY ASSY,CONTROL VALVE W/ SOLAT:J20A; 2005-05-01~2006-06-01 |
26500-65J11-000 |
from US $3,053.88 |
||
|
3
|
3
26591-65D10-000 SOLENOID ASSY,T/MAT:J20A; 2005-05-01~2006-06-01 |
26591-65D10-000 |
from US $313.13 |
||
|
4
|
4
25991-60G10-000 BoltAT:J20A; 2005-05-01~2006-06-01 |
25991-60G10-000 |
US $3.20 |
||
|
5
|
5
26543-65D10-000 TUBE,O/D BRAKE APPLYAT:J20A; 2005-05-01~2006-06-01 |
26543-65D10-000 |
from US $15.01 |
||
|
6
|
6
26570-65D10-000 STRAINER ASSY,OILAT:J20A; 2005-05-01~2006-06-01 |
26570-65D10-000 |
from US $154.55 |
||
|
7
|
7
29971-57B00-000 BoltAT:J20A; 2005-05-01~2006-06-01 |
29971-57B00-000 |
from US $3.69 |
||
|
8
|
8
29971-65D10-000 BoltAT:J20A; 2005-05-01~2006-06-01 |
29971-65D10-000 |
from US $3.80 |
||
|
9
|
9
29972-65D10-000 BOLT,VALVE BODY T/M CASEAT:J20A; 2005-05-01~2006-06-01 |
29972-65D10-000 |
from US $5.31 |
||
|
10
|
10
29986-57B00-000 BOLT,BRAKE APPLYAT:J20A; 2005-05-01~2006-06-01 |
29986-57B00-000 |
from US $3.71 |
||
|
11
|
11
26412-57B00-000 CIRCLIP,FWD CL ACC PSTNAT:J20A; 2005-05-01~2006-06-01 |
26412-57B00-000 |
from US $3.40 |
||
|
12
|
12
29641-65D10-000 SPRING,FORWARD CL ACC NO.1AT:J20A; 2005-05-01~2006-06-01 |
29641-65D10-000 |
from US $8.53 |
||
|
13
|
13
29643-65D30-000 SPRING,DIRECT CL ACC NO.2AT:J20A; 2005-05-01~2006-06-01 |
29643-65D30-000 |
from US $5.72 |
||
|
14
|
14
29644-85FA0-000 SPRING,2ND BRAKE ACC NO.1AT:J20A; 2005-05-01~2006-06-01 |
29644-85FA0-000 |
from US $8.89 |
||
|
15
|
15
29645-85FA0-000 SPRING,2ND BRAKE ACC NO.2AT:J20A; 2005-05-01~2006-06-01 |
29645-85FA0-000 |
from US $7.47 |
||
|
16
|
16
29721-85FA0-000 PISTON,2ND BRAKE ACCAT:J20A; 2005-05-01~2006-06-01 |
29721-85FA0-000 |
from US $15.55 |
||
|
17
|
17
29722-57B00-000 PISTON,DIRECT CL ACCAT:J20A; 2005-05-01~2006-06-01 |
29722-57B00-000 |
from US $13.77 |
||
|
18
|
18
29723-77ED0-000 PISTON,FWD CLUTCH ACCAT:J20A; 2005-05-01~2006-06-01 |
29723-77ED0-000 |
from US $36.77 |
||
|
19
|
19
29731-57BT0-000 O-RING,FORWARD CL ACC PSTNAT:J20A; 2005-05-01~2006-06-01 |
29731-57BT0-000 |
from US $10.06 |
||
|
20
|
20
29732-57BT0-000 O-RING SET,DIRECT CL ACC PSTNAT:J20A; 2005-05-01~2006-06-01 |
29732-57BT0-000 |
from US $10.22 |
||
|
21
|
21
29733-57BT0-000 O-RING SET,2ND BK ACC PSTNAT:J20A; 2005-05-01~2006-06-01 |
29733-57BT0-000 |
from US $10.51 |
||
