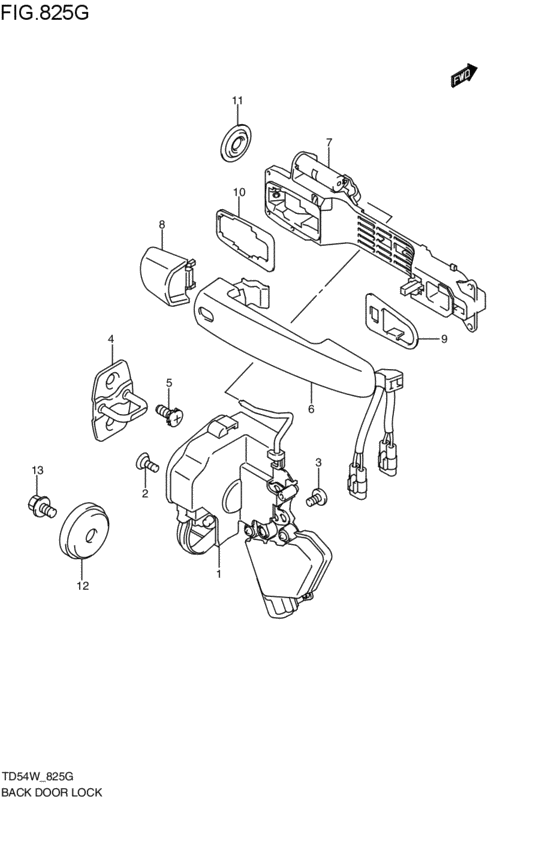

back door lock (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
82510-65J50-000 LATCH ASSY,BACK DOOR2005-05-01~2006-06-01 |
82510-65J50-000 |
from US $143.96 |
||
|
2
|
2
09137-06027-000 SCREW(6X15.9)2005-05-01~2006-06-01 |
09137-06027-000 |
US $15.50 |
||
|
3
|
3
02142-06103-000
Screw
2005-05-01~2006-06-01 |
02142-06103-000 |
— | ||
| replacements | |||||
|
3
|
3
02142-0610B-000 SCREWStopper, cl rlse cam shaft 2005-05-01~2006-06-01 |
02142-0610B-000 |
from US $0.76 |
||
|
3
|
3
02142-0610A-000 SCREW2005-05-01~2006-06-01 |
02142-0610A-000 |
from US $0.80 |
||
|
4
|
4
82650-65J00-000 STRIKER,BACK DOOR LATCH2005-05-01~2006-06-01 |
82650-65J00-000 |
from US $19.73 |
||
|
5
|
5
09137-08012-000
スクリュ,8X24
2005-05-01~2006-06-01 |
09137-08012-000 |
— | ||
| replacement | |||||
|
5
|
5
09137-08014-000 SCREW(8X24)2005-05-01~2006-06-01 |
09137-08014-000 |
US $17.30 |
||
|
6
|
6
82810-63820-ZA5
ハンドル,ドア,アウト(ホワイト)
ホワイト; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63820-ZA5 |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-ZA5
HANDLE,DOOR OUT
ホワイト; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63821-ZA5 |
— | ||
|
6
|
6
82810-63820-ZDK
ハンドル,ドア,アウト(ベージュ)
ベ-ジユ; XG,XS; 2005-05-01~2006-06-01 |
82810-63820-ZDK |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-ZDK HANDLE,DOOR OUTベ-ジユ; XG,XS; 2005-05-01~2006-06-01 |
82810-63821-ZDK |
US $154.56 |
||
|
6
|
6
82810-63820-ZDL
ハンドル,ドア,アウト(グレー)
グレ-; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63820-ZDL |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-ZDL HANDLE,DOOR OUTグレ-; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63821-ZDL |
US $154.56 |
||
|
6
|
6
82810-63820-ZJ3
ハンドル,ドア,アウト(ブラック)
ブラック; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63820-ZJ3 |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-ZJ3 HANDLE,DOOR OUTブラック; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63821-ZJ3 |
US $154.56 |
||
|
6
|
6
82810-63820-ZY4
ハンドル,ドア,アウト(グレー)
グレ-; XG,XS; 2005-05-01~2006-06-01 |
82810-63820-ZY4 |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-ZY4 HANDLE,DOOR OUTグレ-; XG,XS; 2005-05-01~2006-06-01 |
82810-63821-ZY4 |
US $154.56 |
||
|
6
|
6
82810-63820-Z2S
ハンドル,ドア,アウト(シルバー)
シルバ-; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63820-Z2S |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-Z2S HANDLE,DOOR OUTシルバ-; XG,XGF,XS; 2005-05-01~2006-06-01 |
82810-63821-Z2S |
US $154.56 |
||
|
6
|
6
82810-63820-Z9T
ハンドル,ドア,アウト(レッド)
レッド; XG,XS; 2005-05-01~2006-06-01 |
82810-63820-Z9T |
— | ||
| replacement | |||||
|
6
|
6
82810-63821-Z9T
HANDLE,DOOR OUT
レッド; XG,XS; 2005-05-01~2006-06-01 |
82810-63821-Z9T |
— | ||
|
7
|
7
82811-63J40-000 FRAME,FR DOOR OUT,RXG,XGF,XS; 2005-05-01~2006-06-01 |
82811-63J40-000 |
US $39.52 |
||
|
8
|
8
82813-63J10-ZA5 CAP,FR DR OUTホワイト; XE,XG,XGF,XS; 2005-05-01~2006-06-01 |
82813-63J10-ZA5 |
US $17.22 |
||
|
8
|
8
82813-63J10-ZDK CAP,FR DR OUTベ-ジユ; XE,XG,XS; 2005-05-01~2006-06-01 |
82813-63J10-ZDK |
US $17.22 |
||
|
8
|
8
82813-63J10-ZDL CAP,FR DR OUTグレ-; XE,XG,XGF,XS; 2005-05-01~2006-06-01 |
82813-63J10-ZDL |
US $17.22 |
||
|
8
|
8
82813-63J10-ZJ3 CAP,FR DR OUTブラック; XE,XG,XGF,XS; 2005-05-01~2006-06-01 |
82813-63J10-ZJ3 |
US $17.22 |
||
|
8
|
8
82813-63J10-ZY4 CAP,FR DR OUTグレ-; XE,XG,XS; 2005-05-01~2006-06-01 |
82813-63J10-ZY4 |
US $17.22 |
||
|
8
|
8
82813-63J10-Z2S CAP,FR DR OUTシルバ-; XE,XG,XGF,XS; 2005-05-01~2006-06-01 |
82813-63J10-Z2S |
US $17.22 |
||
|
8
|
8
82813-63J10-Z9T CAP,DR OUTレッド; XE,XG,XS; 2005-05-01~2006-06-01 |
82813-63J10-Z9T |
US $17.22 |
||
|
9
|
9
82814-63J00-000 PAD,FRONT DOOR OUT2005-05-01~2006-06-01 |
82814-63J00-000 |
from US $1.52 |
||
|
10
|
10
82815-63J00-000 CUSHION,SIDE DR OUT2005-05-01~2006-06-01 |
82815-63J00-000 |
from US $1.60 |
||
|
11
|
11
09250-25007-000 CAP(OD:25.0)2005-05-01~2006-06-01 |
09250-25007-000 |
from US $0.97 |
||
|
12
|
12
82761-61A10-000
Male,back door stop door
2005-05-01~2006-06-01 |
82761-61A10-000 |
— | ||
| replacement | |||||
|
12
|
12
82761-61A11-000 MALE,BACK DR STOP2005-05-01~2006-06-01 |
82761-61A11-000 |
US $12 |
||
|
13
|
13
09118-08128-000 BOLT(8X16)Bolt, front fender, front 2005-05-01~2006-06-01 |
09118-08128-000 |
US $1.28 |
||
