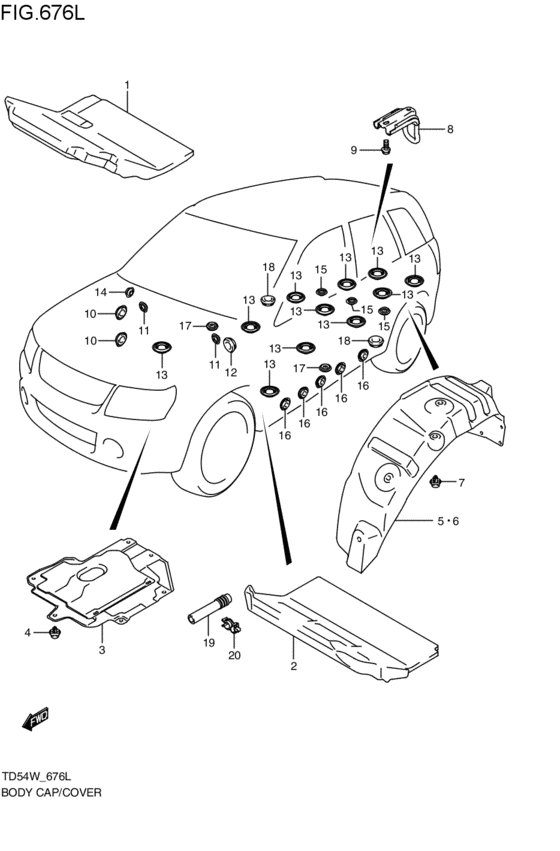

cover / cap (2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75621-65J10-000 PAD,DASH LOWER,R2005-05-01~2006-06-01 |
75621-65J10-000 |
US $58.88 |
||
|
2
|
2
75671-65J10-000 PAD,DASH LOWER,L2005-05-01~2006-06-01 |
75671-65J10-000 |
US $58.88 |
||
|
3
|
3
72380-65J00-000 COVER,FR UNDER2005-05-01~2006-06-01 |
72380-65J00-000 |
US $91.20 |
||
|
4
|
4
09409-07332-000 CLIP2005-05-01~2006-06-01 |
09409-07332-000 |
from US $1.28 |
||
|
5
|
5
75521-65J00-000 LINING,RR WHEEL HSG,R2005-05-01~2006-06-01 |
75521-65J00-000 |
US $90.53 |
||
|
6
|
6
75531-65J00-000
ライニング,リヤホイールハウジング,レフト
2005-05-01~2006-06-01 |
75531-65J00-000 |
— | ||
| replacement | |||||
|
6
|
6
75531-65J01-000 LINING,RR WHEEL HSG,L2005-05-01~2006-06-01 |
75531-65J01-000 |
US $90.53 |
||
|
7
|
7
09409-07332-000 CLIP2005-05-01~2006-06-01 |
09409-07332-000 |
from US $1.28 |
||
|
8
|
8
75560-65J00-000
フック,リヤトーイング
2005-05-01~2006-06-01 |
75560-65J00-000 |
— | ||
| replacement | |||||
|
8
|
8
75560-65J01-000 HOOK,RR TOWING2005-05-01~2006-06-01 |
75560-65J01-000 |
US $52.62 |
||
|
9
|
9
01551-12253-000
ボルト
2005-05-01~2006-06-01 |
01551-12253-000 |
— | ||
| replacement | |||||
|
9
|
9
01551-1225A-000 Bolt2005-05-01~2006-06-01 |
01551-1225A-000 |
US $1.28 |
||
|
10
|
10
09250-25007-000 CAP(OD:25.0)2005-05-01~2006-06-01 |
09250-25007-000 |
US $1.76 |
||
|
11
|
11
77111-63J00-000 CAP2005-05-01~2006-06-01 |
77111-63J00-000 |
US $1.60 |
||
|
12
|
12
72999-67H00-000 CAP,OD:402005-05-01~2006-06-01 |
72999-67H00-000 |
from US $4.32 |
||
|
13
|
13
75431-58J00-000 CAP,FL2005-05-01~2006-06-01 |
75431-58J00-000 |
US $2.88 |
||
|
14
|
14
77111-63J00-000 CAP2005-05-01~2006-06-01 |
77111-63J00-000 |
US $1.60 |
||
|
15
|
15
77111-63J00-000 CAP2005-05-01~2006-06-01 |
77111-63J00-000 |
US $1.60 |
||
|
16
|
16
75711-65J00-000 CAP2005-05-01~2006-06-01 |
75711-65J00-000 |
US $2.13 |
||
|
17
|
17
09250-17002-000 CAP(OD:25.6)2006-02-01~2006-06-01 |
09250-17002-000 |
US $1.60 |
||
|
17
|
17
75711-65J00-000 CAP2005-05-01~2006-02-01 |
75711-65J00-000 |
US $2.13 |
||
|
18
|
18
72999-67H00-000 CAP,OD:402005-05-01~2006-06-01 |
72999-67H00-000 |
from US $4.32 |
||
|
19
|
19
76470-50F00-000
シグナルアッシ,フレア
2005-05-01~2006-06-01 |
76470-50F00-000 |
— | ||
| replacement | |||||
|
19
|
19
76470-64P00-000
New Genuine Part
2005-05-01~2006-06-01 |
76470-64P00-000 |
— | ||
|
20
|
20
76475-70G00-000
HOLDER,SIGNAL FLARE
2005-05-01~2006-06-01 |
76475-70G00-000 |
— | ||
