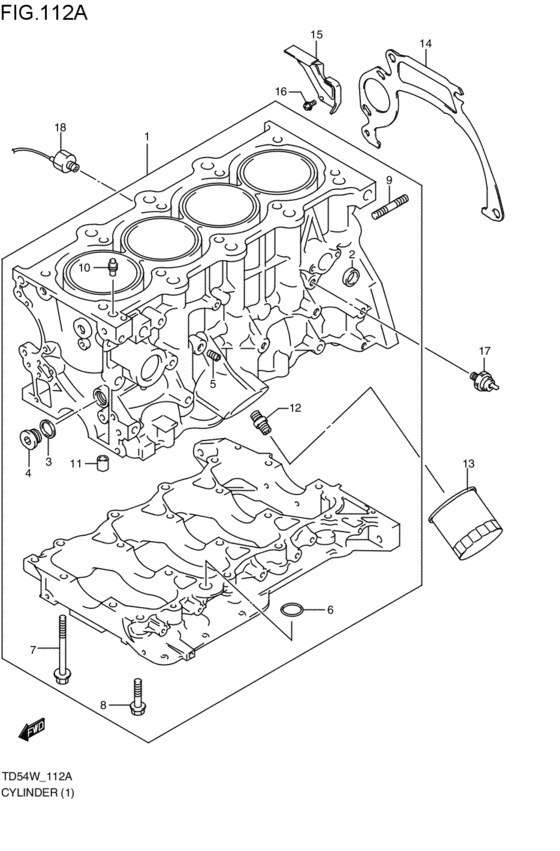

Cylinder (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-65J00-000
Block assy,cylinder
J20A; 2005-05-01~2006-06-01 |
11200-65J00-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-65J00-X12 BLOCK ASSY,CYLINDER J20AJ20A; 2005-05-01~2006-06-01 |
11200-65J00-X12 |
US $4,080 |
||
|
2
|
2
09241-30010-000 PLUGJ20A; 2005-05-01~2006-06-01 |
09241-30010-000 |
US $2.40 |
||
|
3
|
3
11216-77E00-000 GASKET,M18 PLUGJ20A; 2005-05-01~2006-06-01 |
11216-77E00-000 |
from US $1.74 |
||
|
4
|
4
09248-18005-000 PLUGPlug, oil gallery J20A; 2005-05-01~2006-06-01 |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
4
|
4
09248-18011-000 PLUG(18X8)Plug, oil gallery J20A; 2005-05-01~2006-06-01 |
09248-18011-000 |
from US $2.88 |
||
|
5
|
5
09246-05006-000 PLUG(1/8PT,H:5.5)J20A; 2005-05-01~2006-06-01 |
09246-05006-000 |
from US $1.42 |
||
|
6
|
6
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) J20A; 2005-05-01~2006-06-01 |
09280-22020-000 |
from US $1.60 |
||
|
7
|
7
11251-85FA1-000 BOLT,CRANK CASEBolt J20A; 2005-05-01~2006-06-01 |
11251-85FA1-000 |
from US $5.69 |
||
|
8
|
8
01550-0855A-000 BOLTBolt, gear holder J20A; 2005-05-01~2006-06-01 |
01550-0855A-000 |
from US $1.22 |
||
|
9
|
9
09108-12010-000 BOLT,STUDJ20A; 2005-05-01~2006-06-01 |
09108-12010-000 |
US $35.30 |
||
|
10
|
10
16450-85FA1-000 VALVE,CHECKJ20A; 2005-05-01~2006-06-01 |
16450-85FA1-000 |
from US $12.31 |
||
|
11
|
11
04211-13189-000 PINJ20A; 2005-05-01~2006-06-01 |
04211-13189-000 |
from US $1.19 |
||
|
12
|
12
11241-86FA0-000 STAND,OIL FILTERJ20A; 2005-05-01~2006-06-01 |
11241-86FA0-000 |
US $6.72 |
||
|
13
|
13
16510-61A01-000
フィルタアッシ,オイル(TOKYO ROKI)
TOKYO ROKI; J20A; 2005-05-01~2006-06-01 |
16510-61A01-000 |
— | ||
| replacements | |||||
|
13
|
13
16510-61A20-MHL
Filter assy, oil
TOKYO ROKI; J20A; 2005-05-01~2006-06-01 |
16510-61A20-MHL |
— | ||
|
13
|
13
16510-61A31-000
FILTER ASSY,OIL WAKO
TOKYO ROKI; J20A; 2005-05-01~2006-06-01 |
16510-61A31-000 |
— | ||
|
13
|
13
16510-61A21-000
FILTER ASSY,OIL MAHLE
MAHLE; J20A; 2005-05-01~2006-06-01 |
16510-61A21-000 |
— | ||
| replacement | |||||
|
13
|
13
16510-61A20-MHL
Filter assy, oil
MAHLE; J20A; 2005-05-01~2006-06-01 |
16510-61A20-MHL |
— | ||
|
14
|
14
11311-77E01-000 PLATE,CLUTCH HSG UPRJ20A; 2005-05-01~2006-06-01 |
11311-77E01-000 |
US $31.28 |
||
|
15
|
15
11320-65J00-000 PLATE,CLUTCH HSG LOWERJ20A; 2005-05-01~2006-06-01 |
11320-65J00-000 |
US $7.95 |
||
|
16
|
16
02162-06103-000
Bolt
J20A; 2005-05-01~2006-06-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
16
|
16
02162-0610A-000 SCREWJ20A; 2005-05-01~2006-06-01 |
02162-0610A-000 |
from US $0.64 |
||
|
17
|
17
37820-82002-000
Switch assy,oil press
J20A; 2005-05-01~2006-06-01 |
37820-82002-000 |
— | ||
| replacement | |||||
|
17
|
17
37820-820P0-000 SWITCH ASSY,OIL PRESSUREJ20A; 2005-05-01~2006-06-01 |
37820-820P0-000 |
from US $12.02 |
||
|
18
|
18
18640-78G00-000 SENSOR ASSY,KNOCKJ20A; 2005-05-01~2006-06-01 |
18640-78G00-000 |
from US $104.49 |
||
