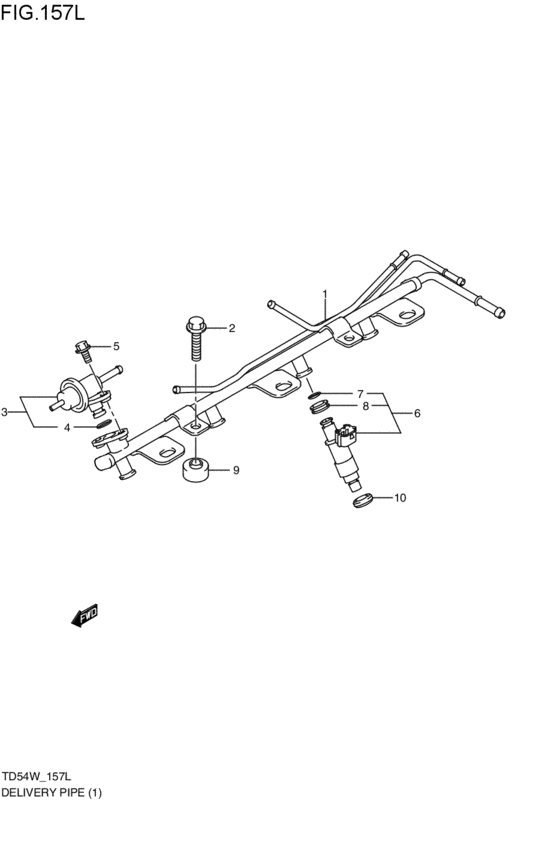

delivery pipe / fuel injector (J20A; 2005-05-01~2006-06-01) Diagram Suzuki ESCUDO
- Year
- 2005 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- grade
- XG
- air bag
- 6AB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15730-65J00-000 PIPE,FUEL DELIVERYJ20A; 2005-05-01~2006-06-01 |
15730-65J00-000 |
US $96.42 |
||
|
2
|
2
01550-08303-000
Bolt
J20A; 2005-05-01~2006-06-01 |
01550-08303-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0830B-000 BoltJ20A; 2005-05-01~2006-06-01 |
01550-0830B-000 |
from US $1.06 |
||
|
2
|
2
01550-0830A-000 BOLTBolt, mount oil seal cover J20A; 2005-05-01~2006-06-01 |
01550-0830A-000 |
from US $1.12 |
||
|
3
|
3
15610-67D00-000 REGULATOR,FUEL PRESSUREJ20A; 2005-05-01~2006-06-01 |
15610-67D00-000 |
US $125.60 |
||
|
4
|
4
15710-51E10-000 O-RINGJ20A; 2005-05-01~2006-06-01 |
15710-51E10-000 |
US $1.92 |
||
|
5
|
5
09103-06168-000 BOLT(6X10)J20A; 2005-05-01~2005-07-01 |
09103-06168-000 |
from US $1.01 |
||
|
5
|
5
09103-06265-000 BOLT(6X12)J20A; 2005-07-01~2006-06-01 |
09103-06265-000 |
US $1.28 |
||
|
6
|
6
15710-65J00-000 INJECTOR ASSY,FUELJ20A; 2005-05-01~2006-06-01 |
15710-65J00-000 |
from US $163.10 |
||
|
7
|
7
15710-09300-000 O-RINGJ20A; 2005-05-01~2006-06-01 |
15710-09300-000 |
from US $1.60 |
||
|
8
|
8
15720-09300-000 GROMMETJ20A; 2005-05-01~2006-06-01 |
15720-09300-000 |
from US $1.52 |
||
|
9
|
9
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe J20A; 2005-05-01~2006-06-01 |
15735-58B00-000 |
US $2.72 |
||
|
10
|
10
09320-08062-000 CUSHIONJ20A; 2005-05-01~2006-06-01 |
09320-08062-000 |
from US $4.32 |
||
